Test Unit
Fabrication Drawing Set
Prototype & Validation System · Anthony Squires · Autodesk Inventor

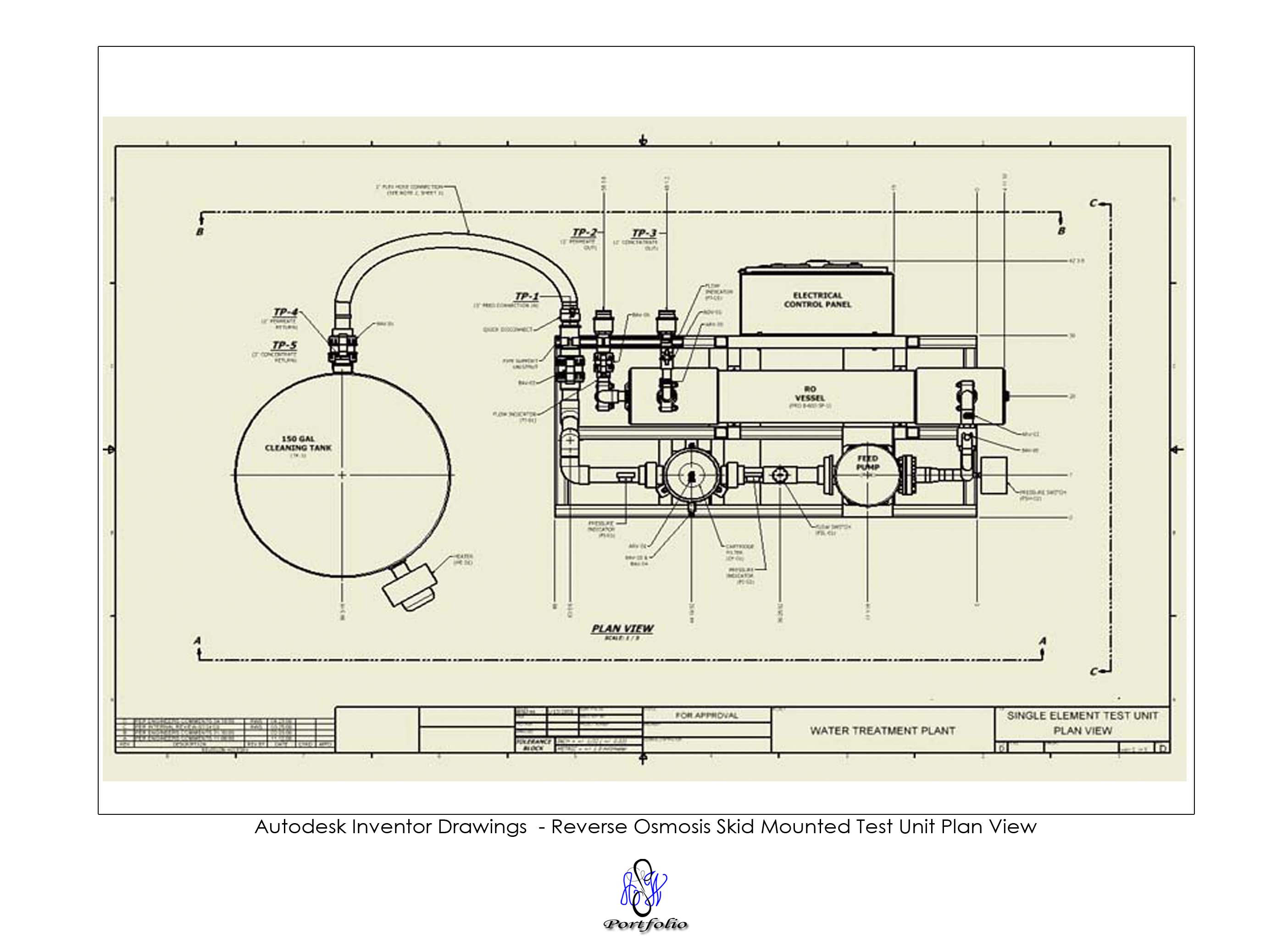

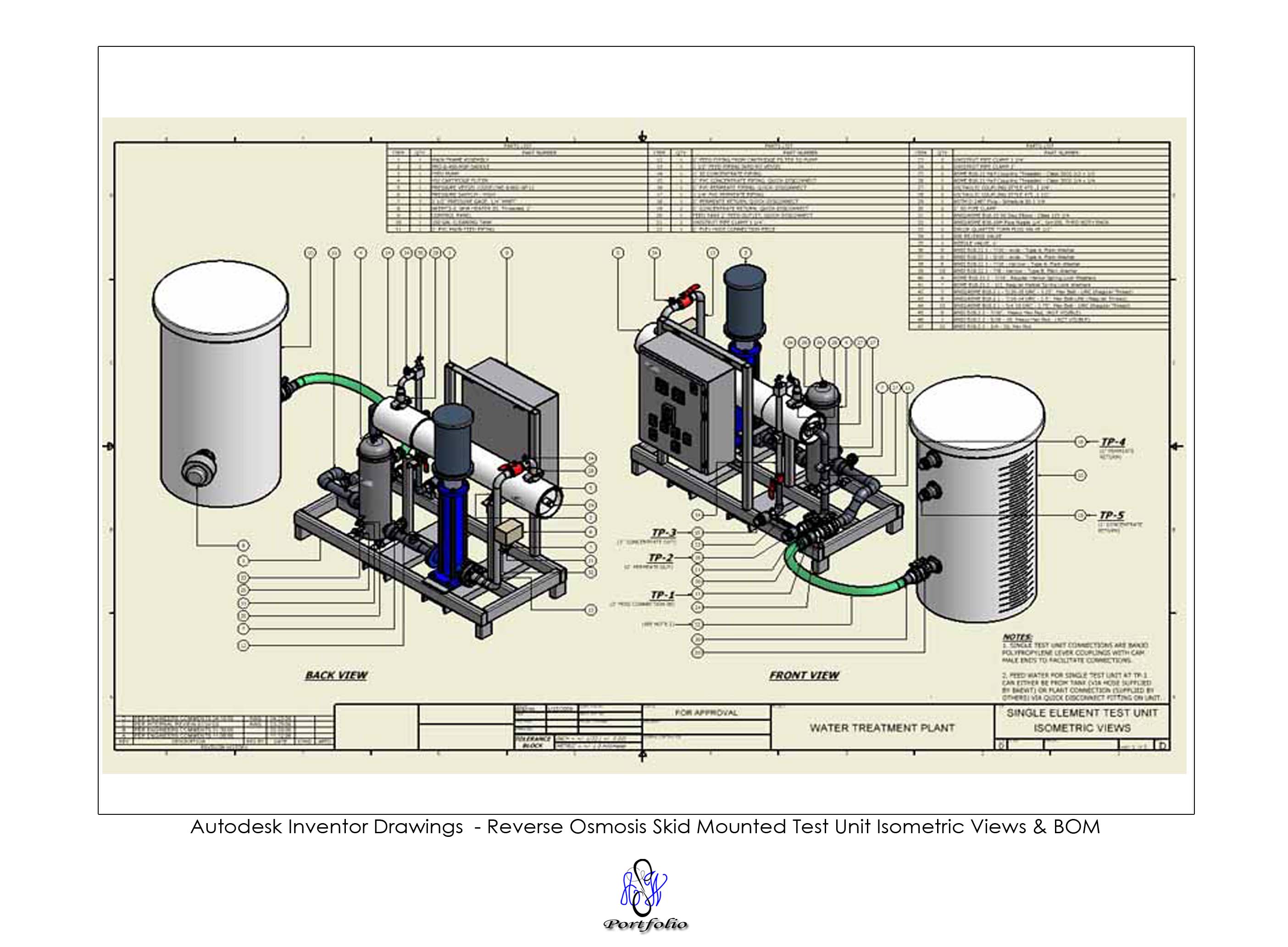

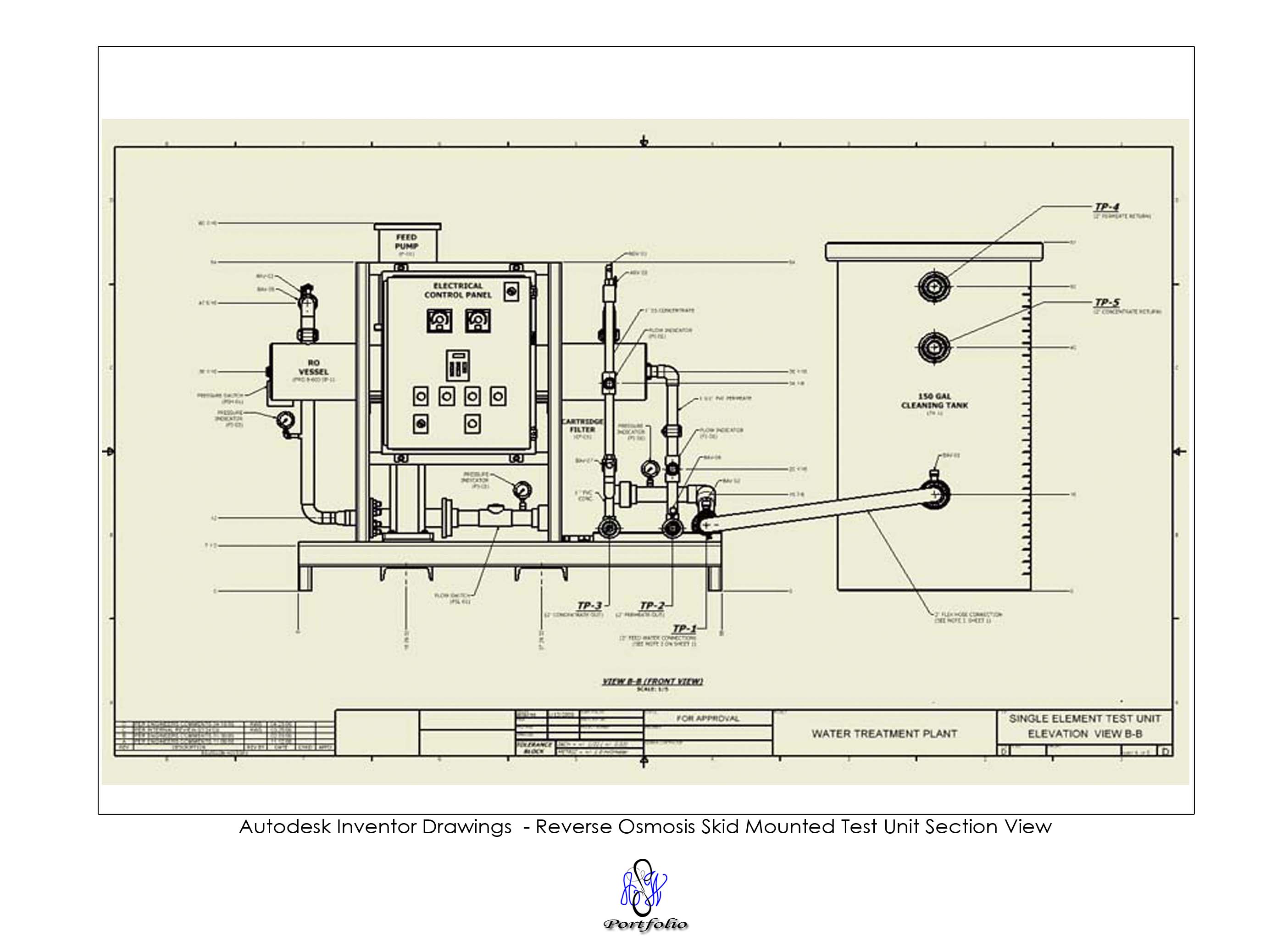

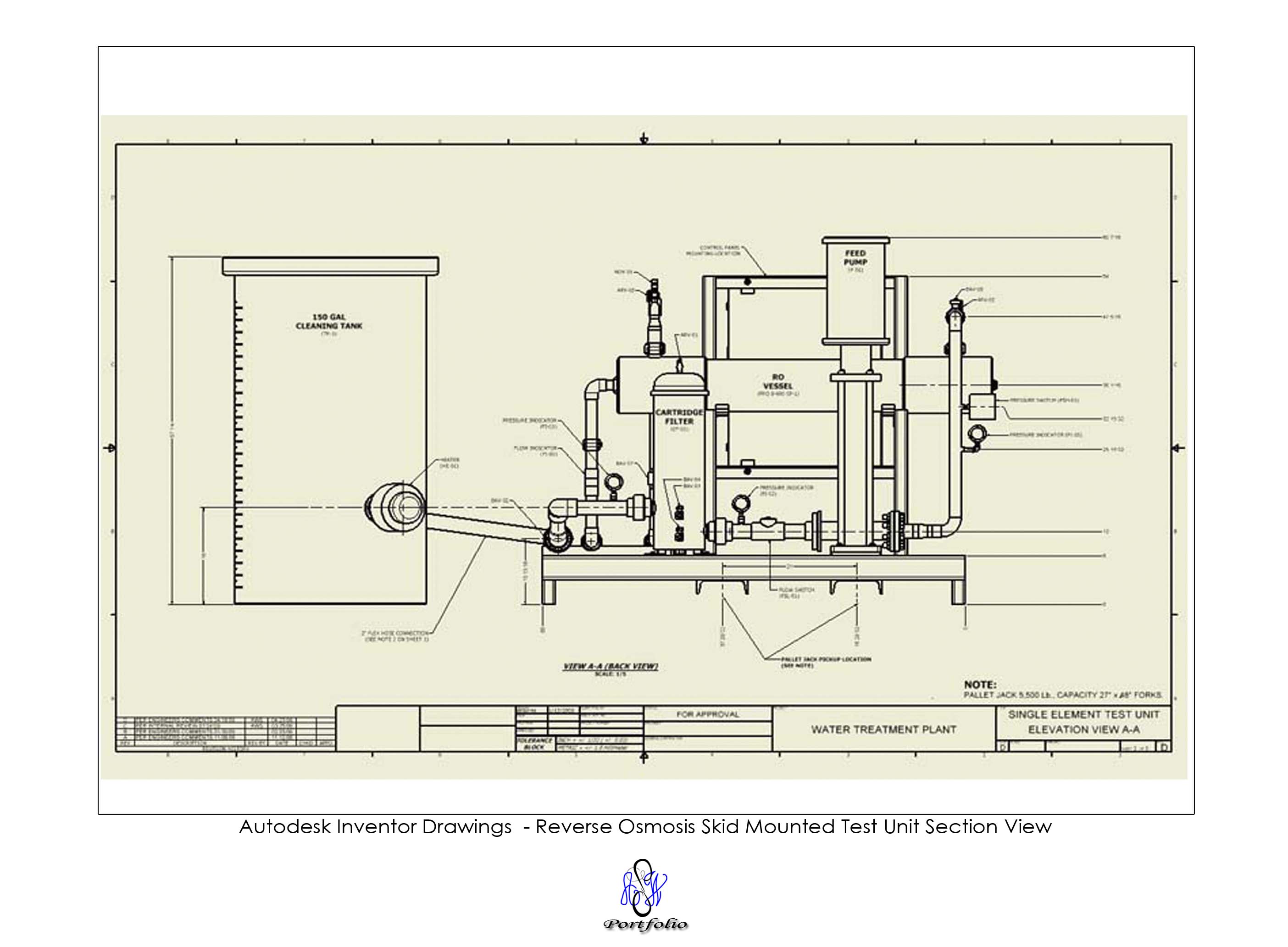

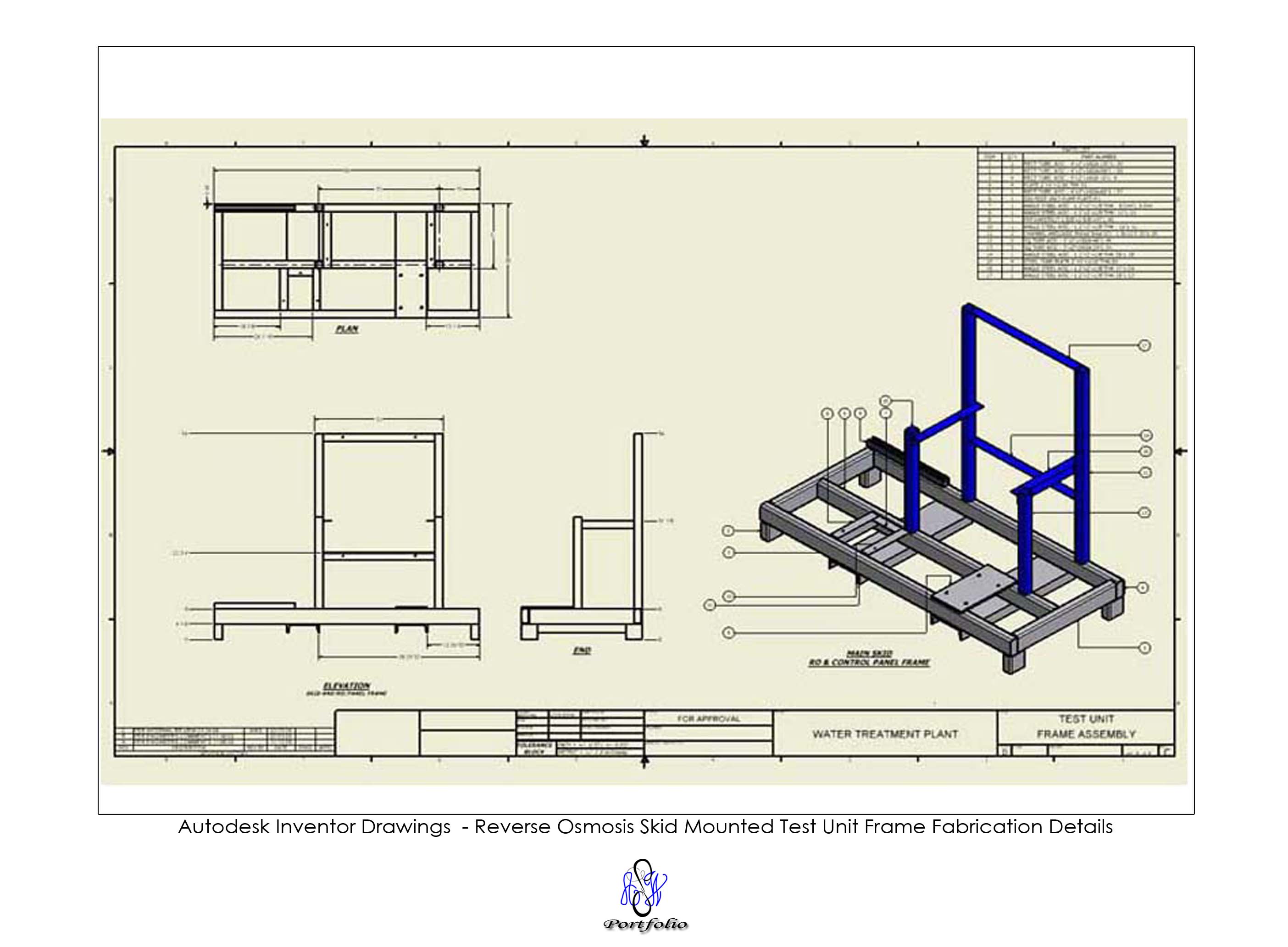

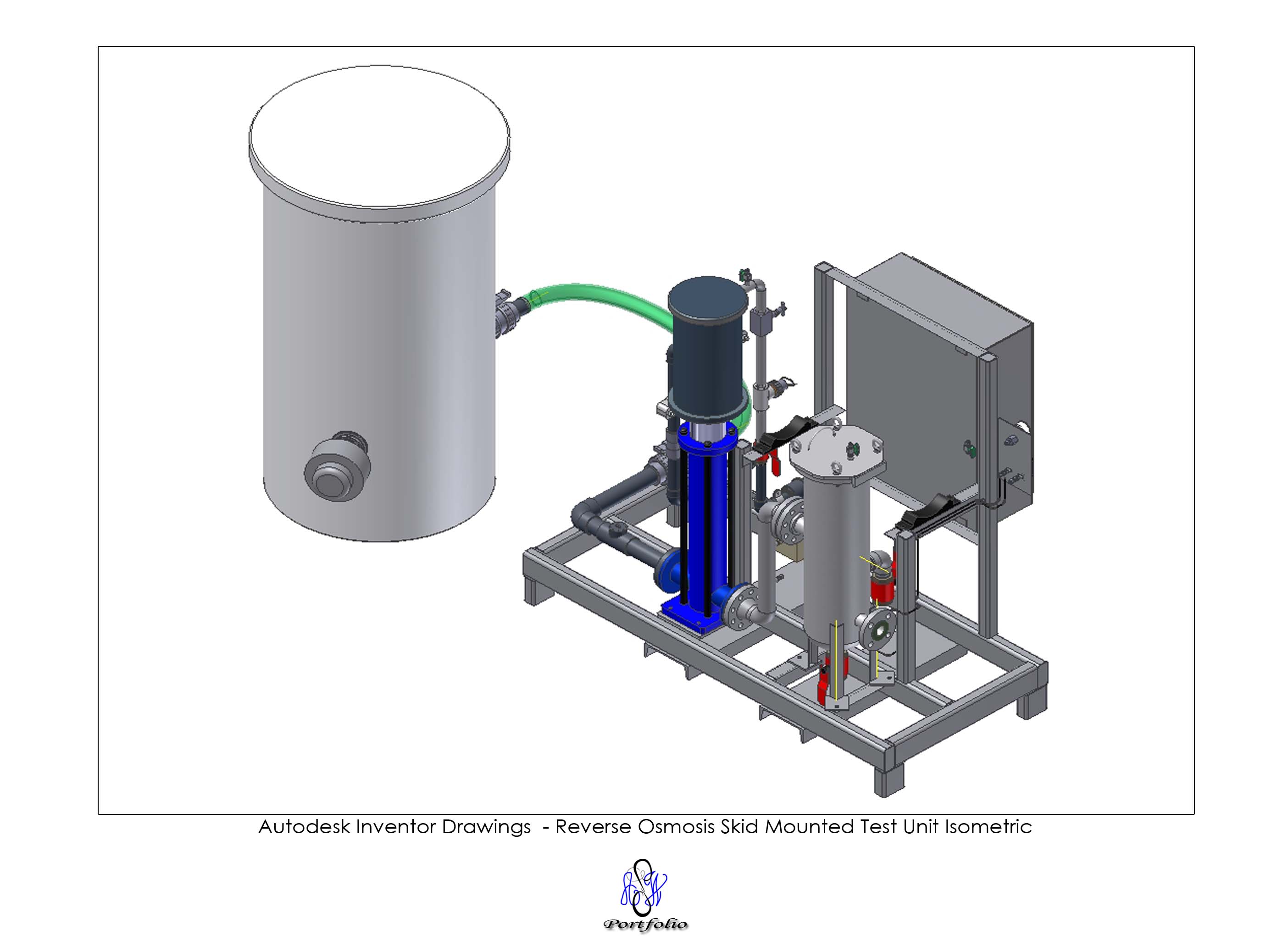

A fabrication drawing package developed in Autodesk Inventor for the test unit prototype system. These drawings document the complete assembly used for performance testing and validation prior to full-scale production, covering all structural and piping components required for fabrication and assembly.
The Test Unit drawing package was developed to support the fabrication and assembly of a prototype system built for performance validation. Each drawing in this set provides the dimensional and material specifications required to fabricate individual components and assemble the complete unit for testing under operational conditions.
All drawings were produced in Autodesk Inventor from engineering specifications, incorporating PVC schedule piping, structural supports, instrumentation ports, and system interconnects. The drawing set follows standard fabrication documentation conventions including bill of materials, revision history, and third-angle projection views.
