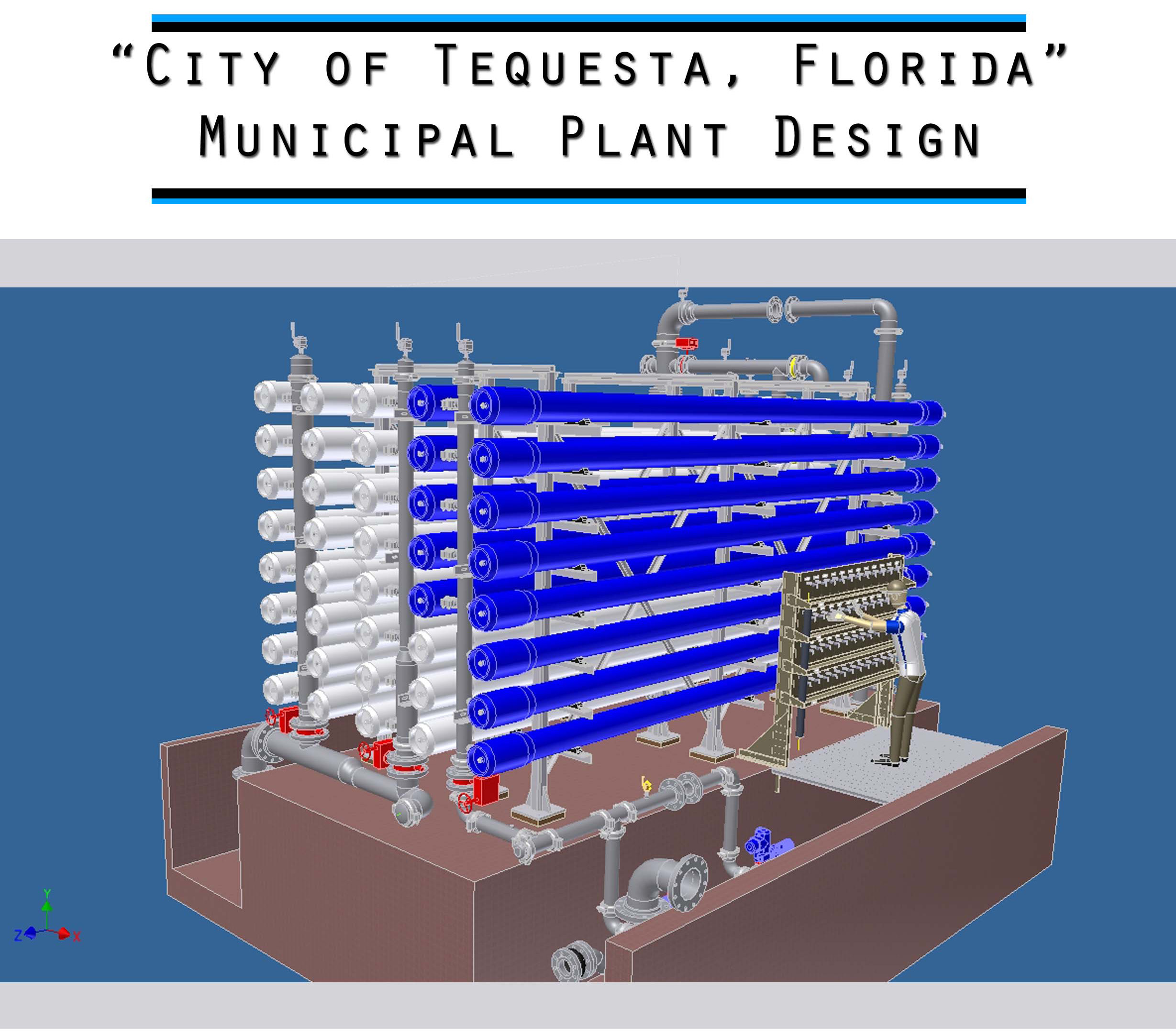

Tequesta Municipal
Water Treatment Facility
Autodesk Inventor Mechanical Design Drawings — Municipal Water Treatment
A complete fabrication drawing package developed in Autodesk Inventor for the Tequesta Municipal water treatment facility. The set covers general assembly, hardware lists, structural frame details, sample panel configurations, and pipe spool fabrication drawings across 5 sections and 63 sheets.

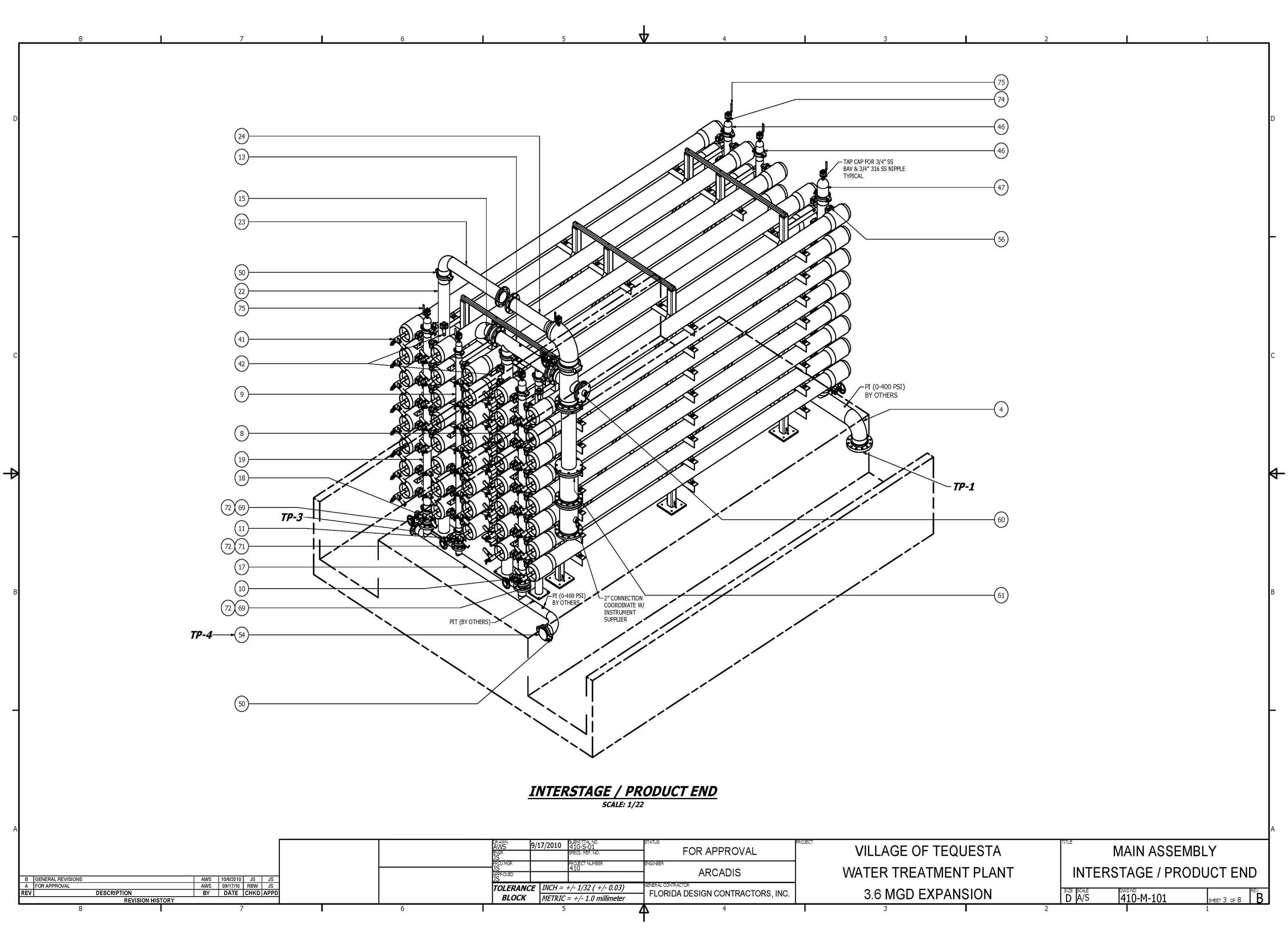

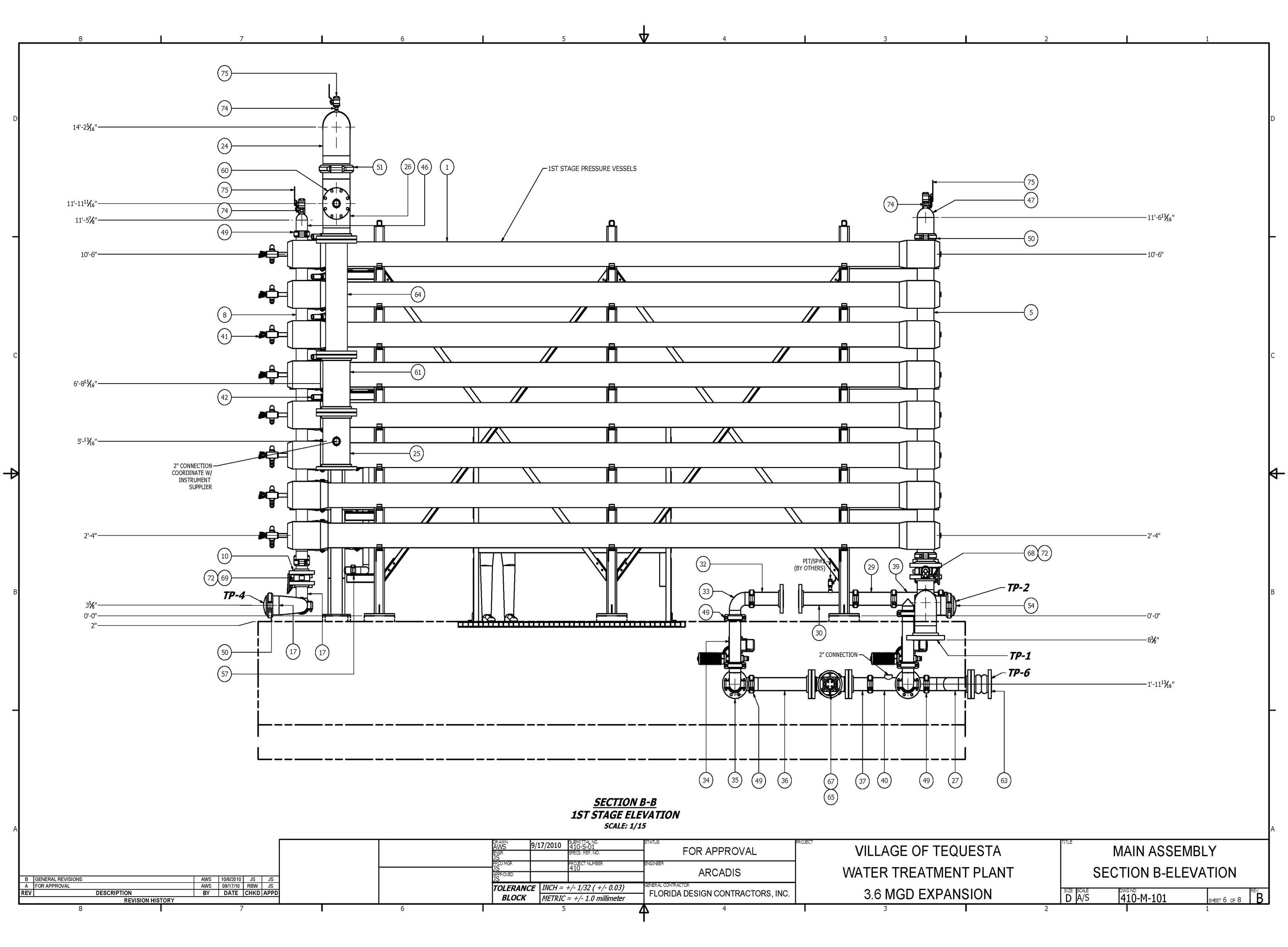

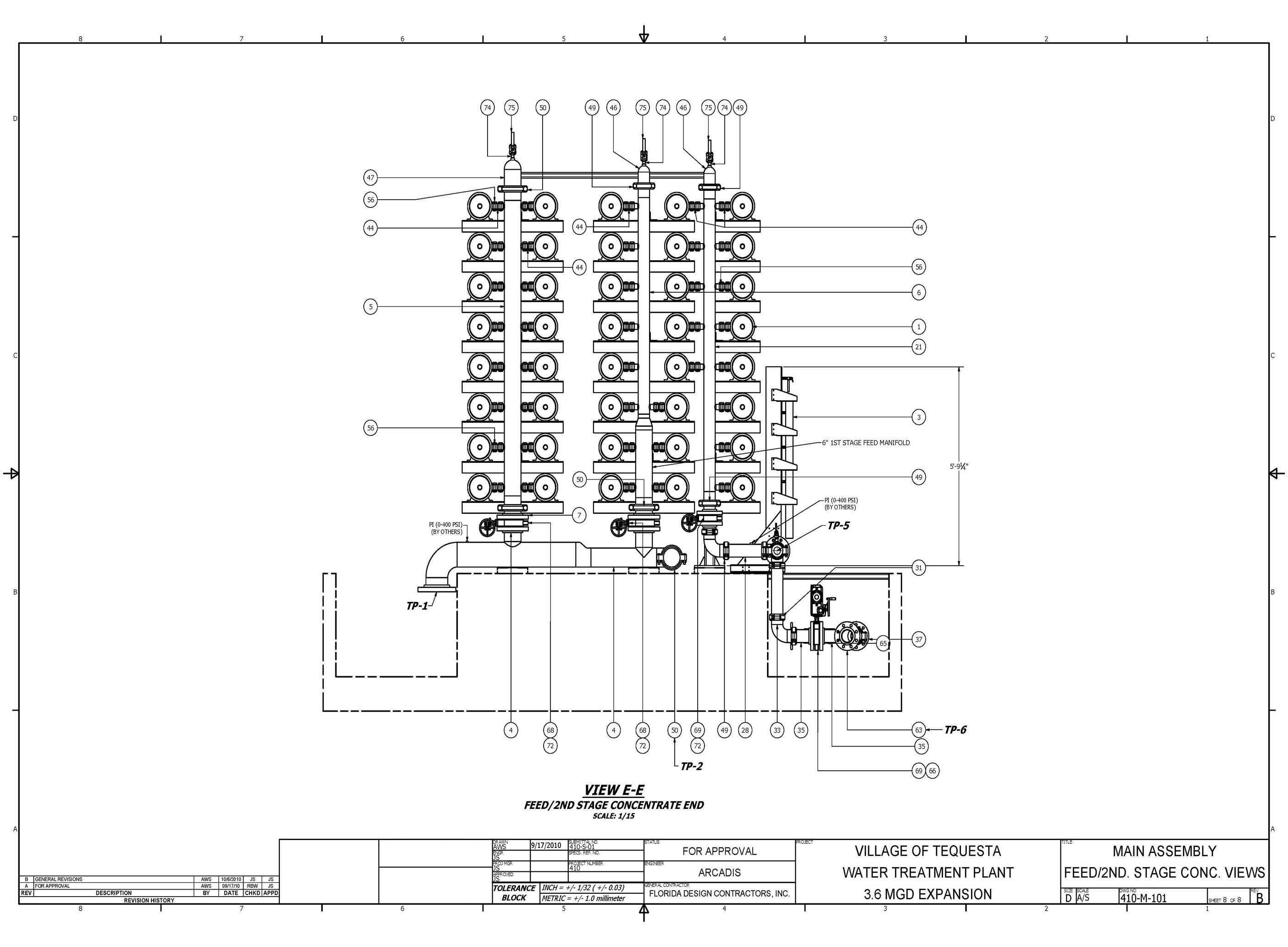

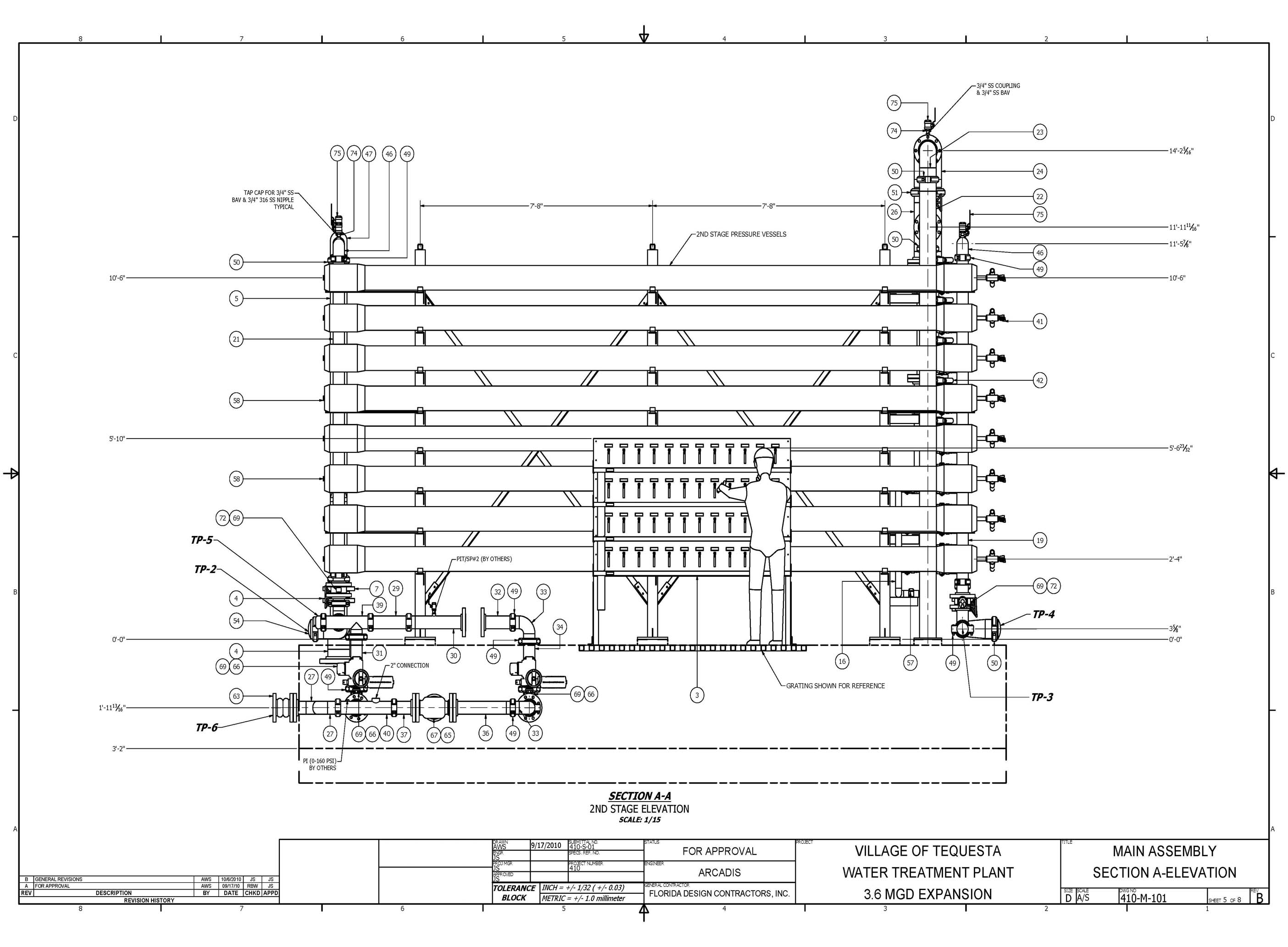

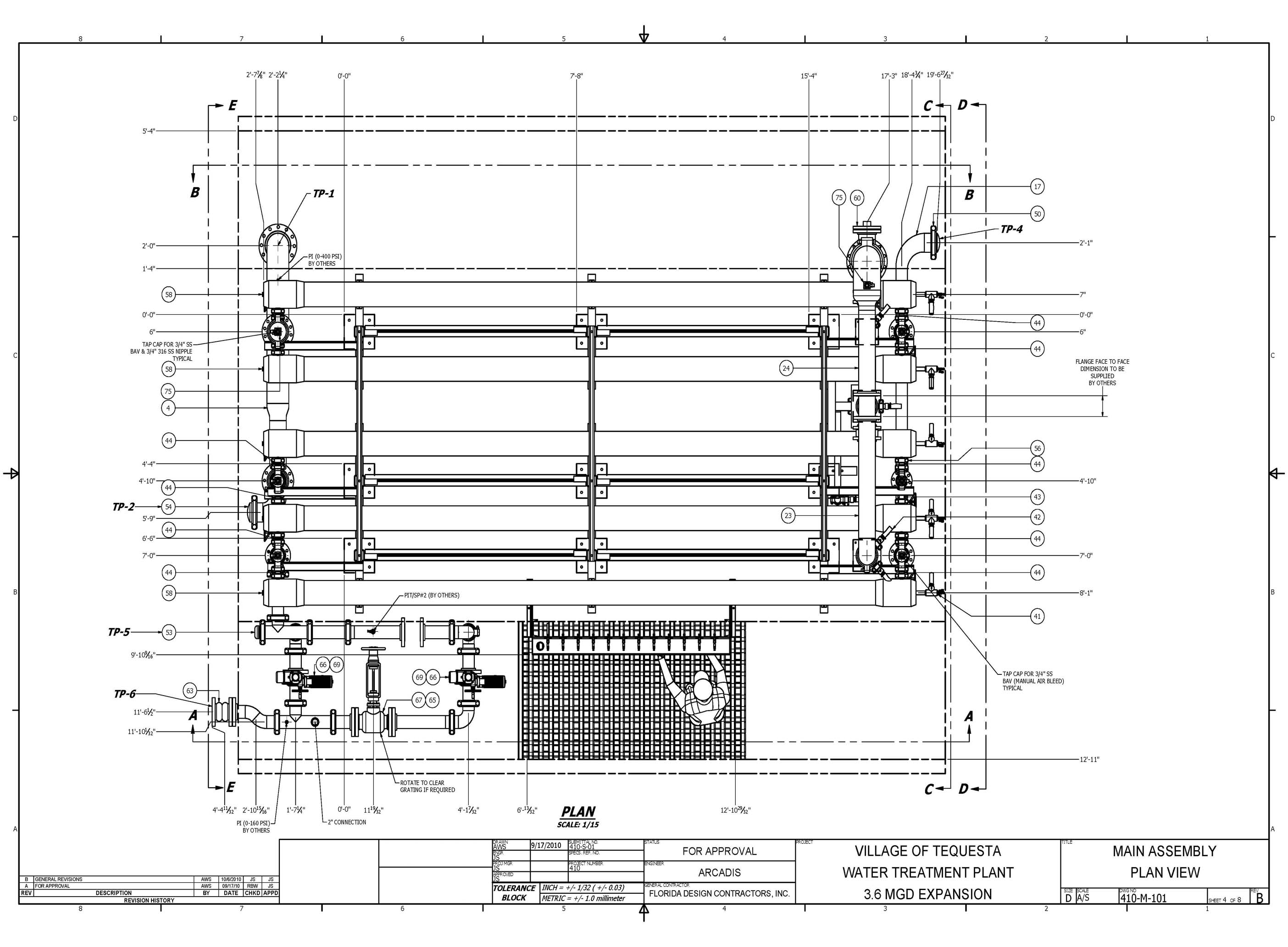

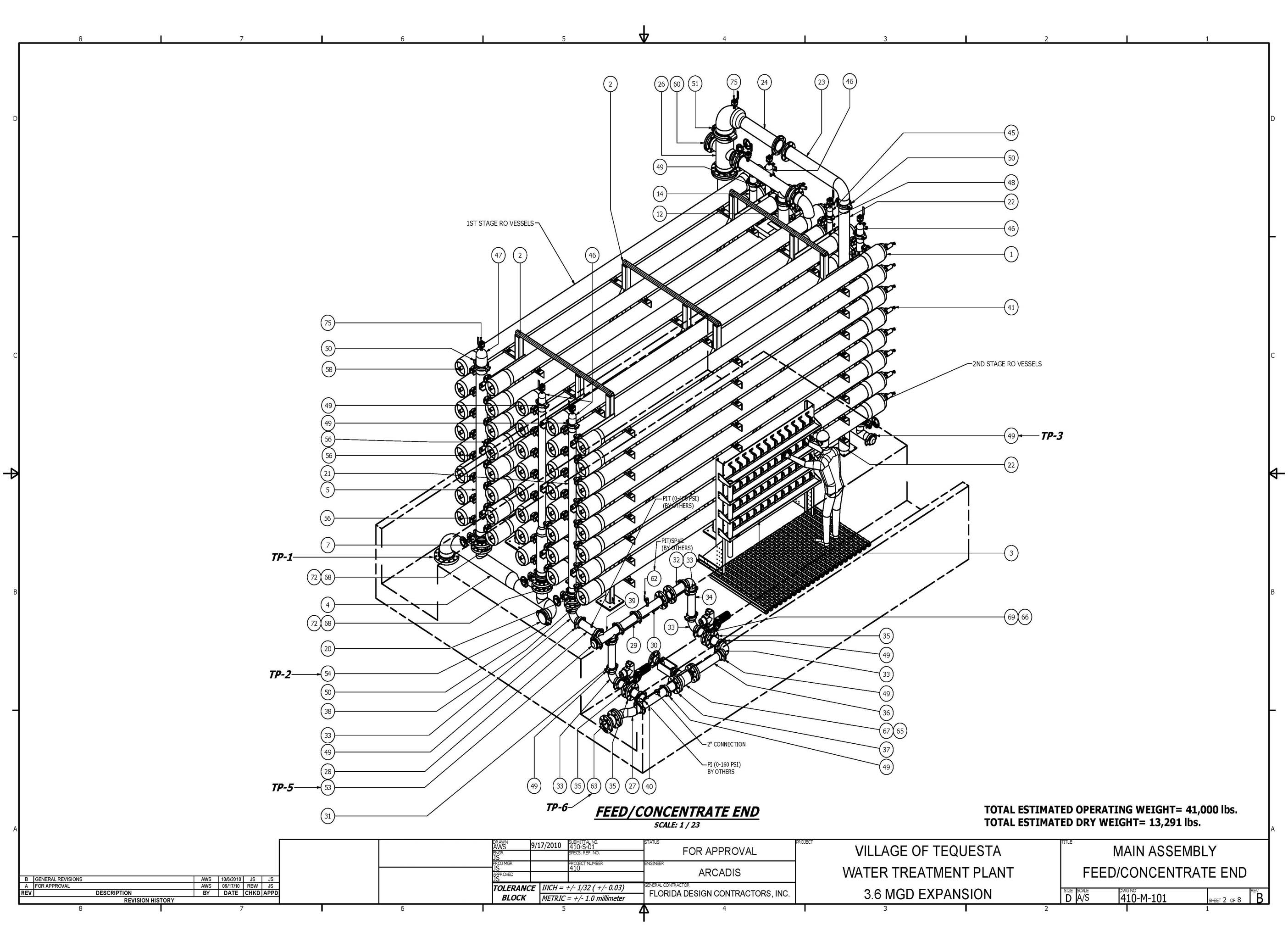

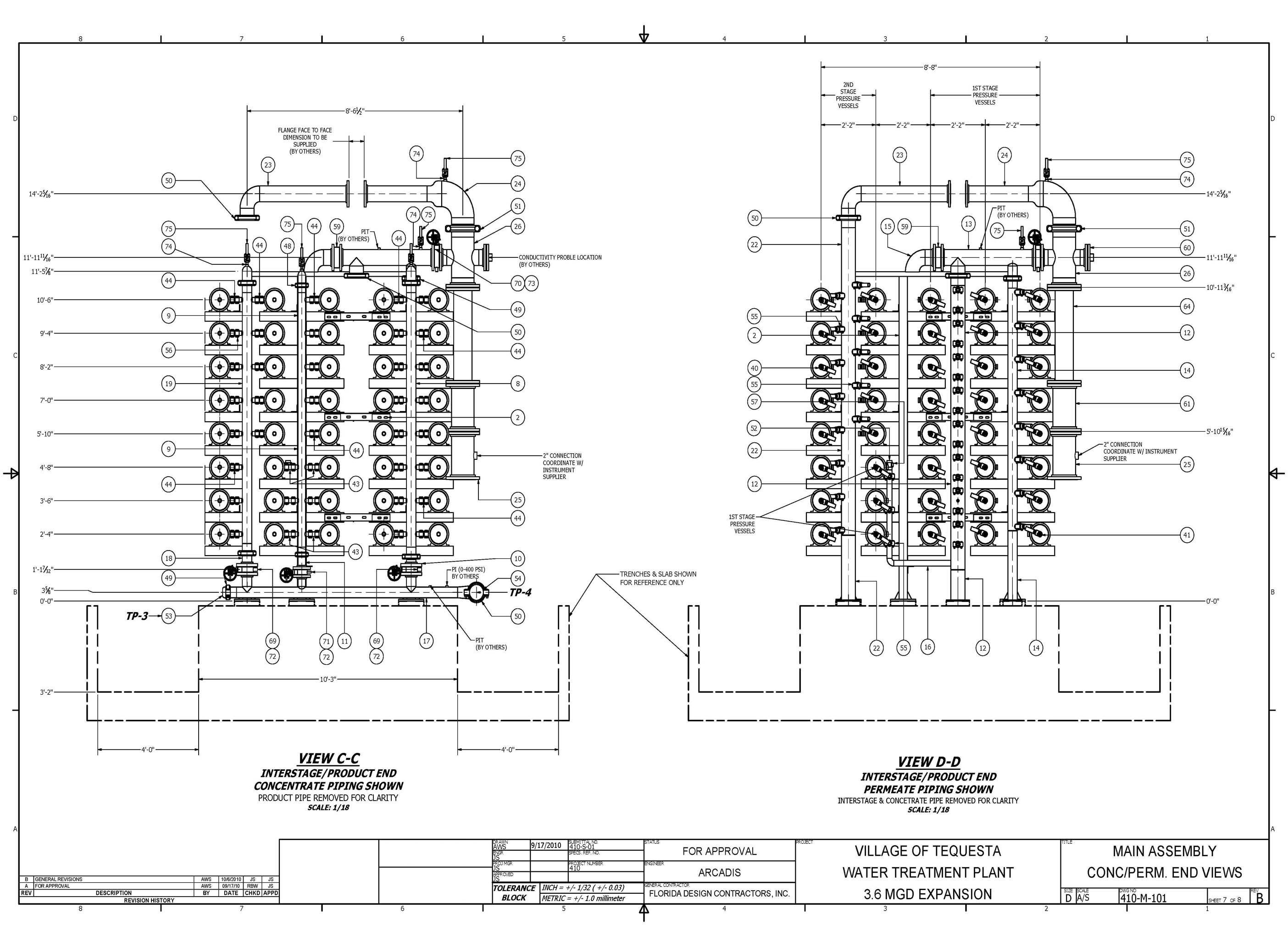

The General Assembly drawings establish the spatial layout, equipment placement, and process routing for the Tequesta Municipal water treatment facility. Developed in Autodesk Inventor from client specifications, these 8 sheets serve as the primary reference for fabrication, installation, and system coordination.

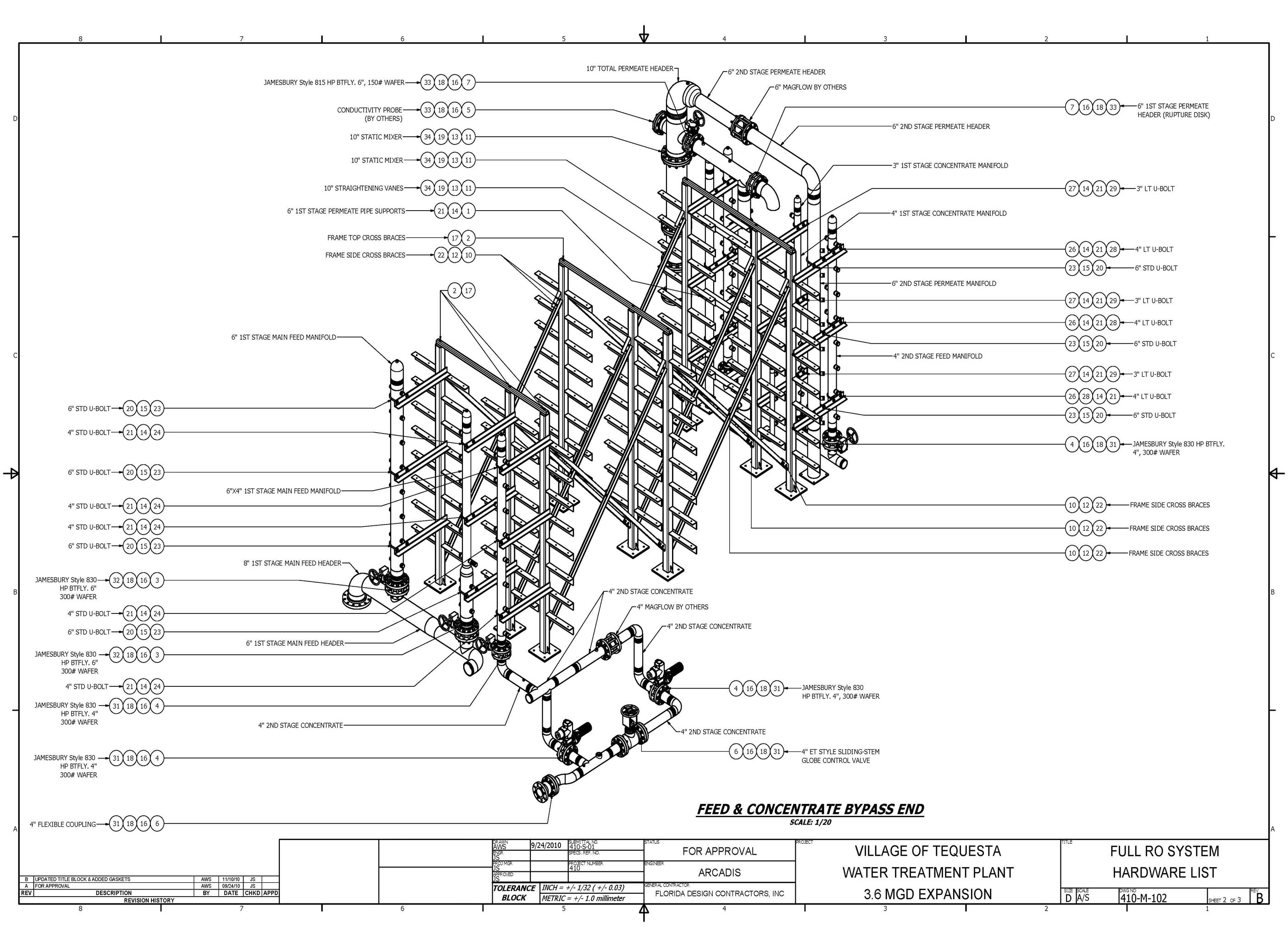

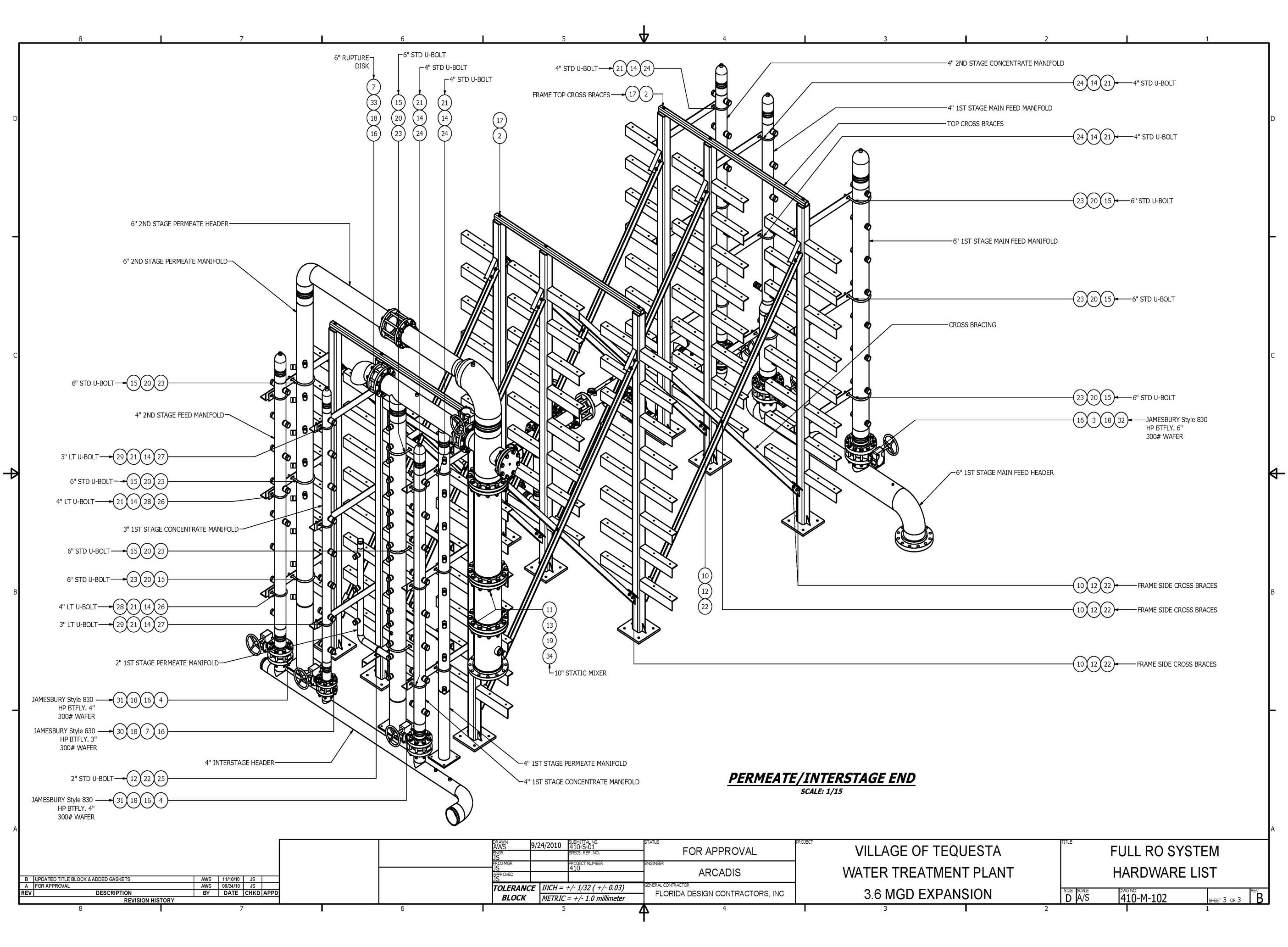

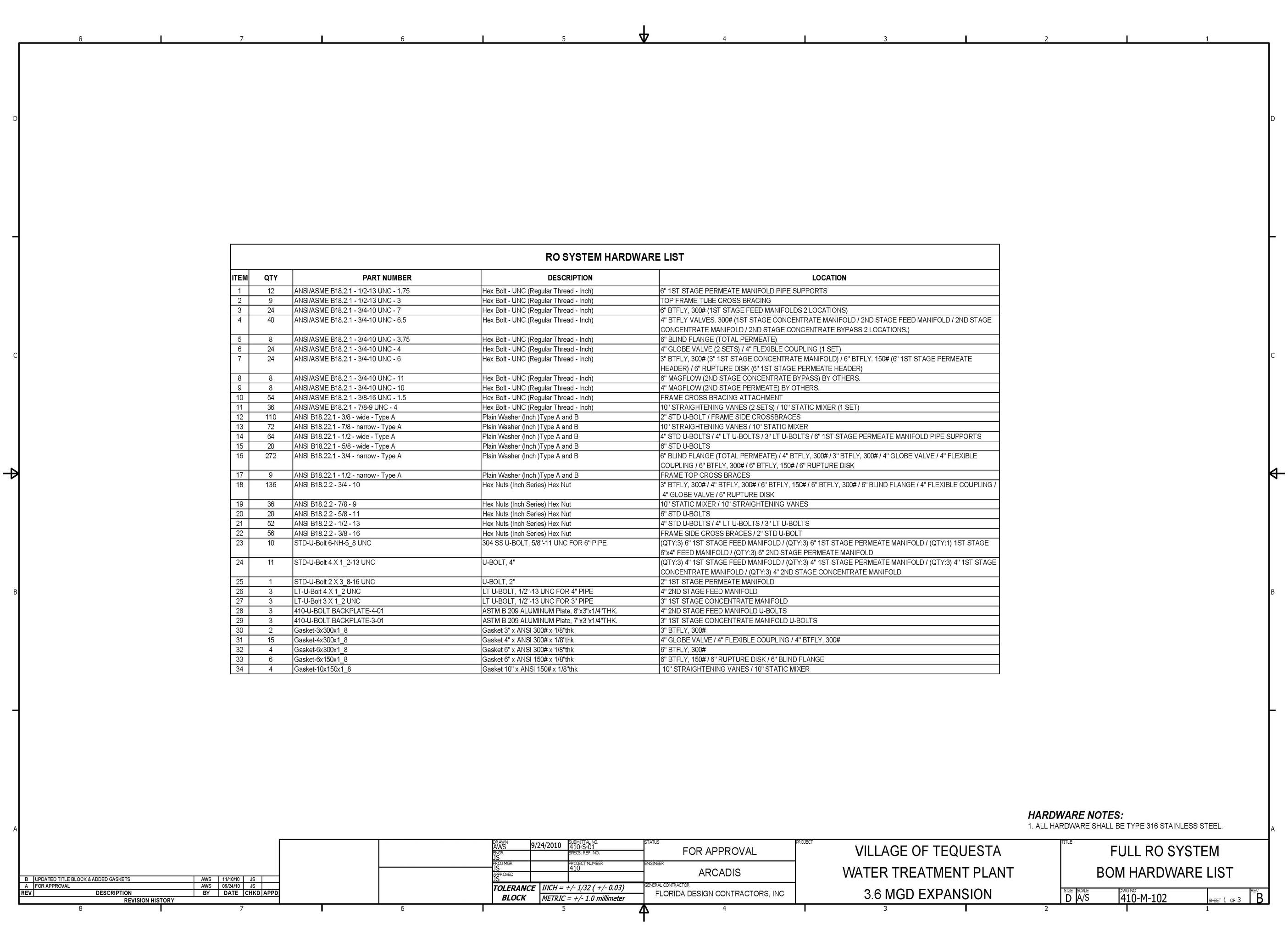

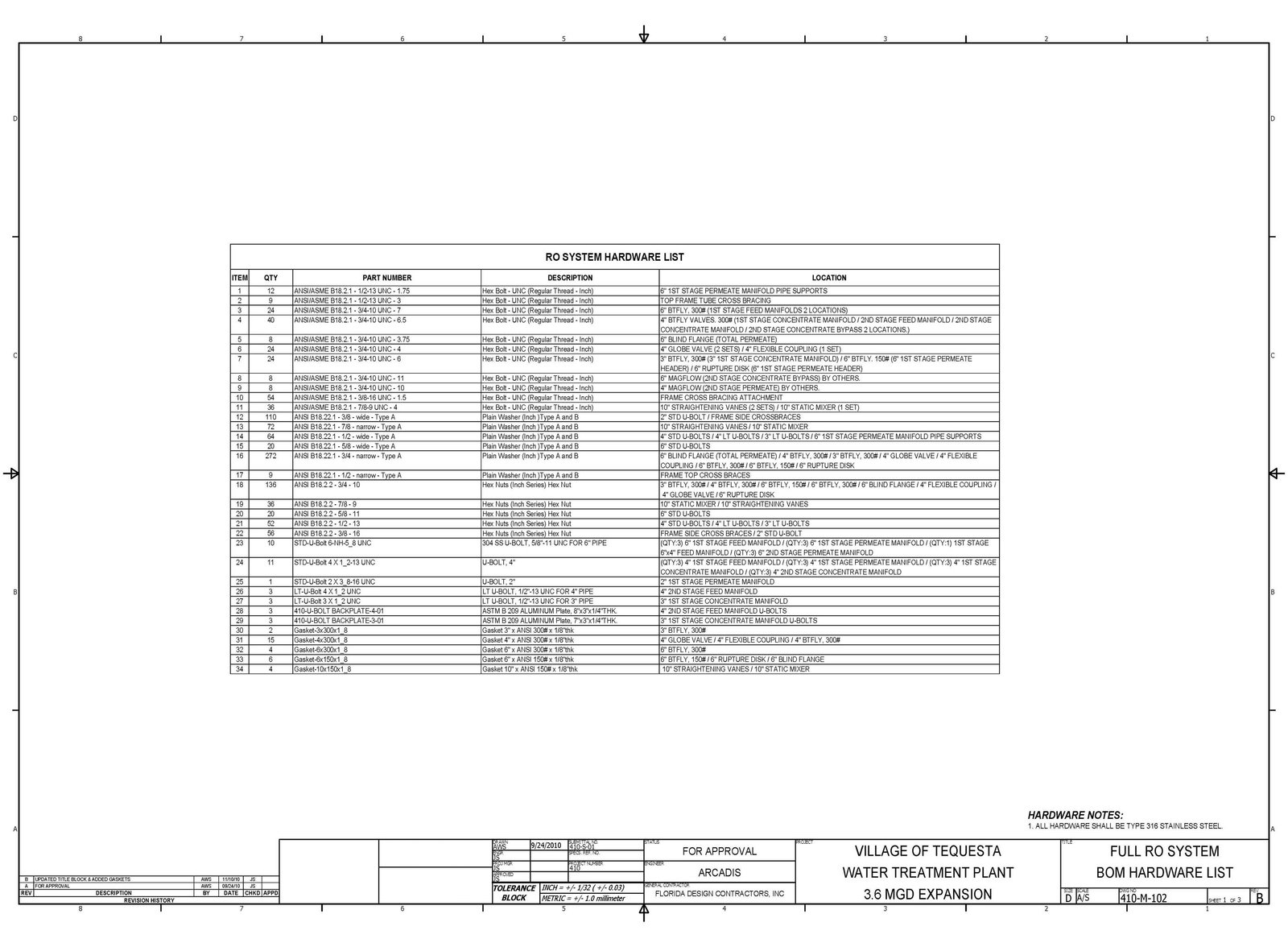

The hardware list drawings identify the placement and specification of mechanical components, mounting hardware, and instrument connections for the Tequesta system. These 4 sheets provide the procurement and installation references for all hardware items across the treatment train.

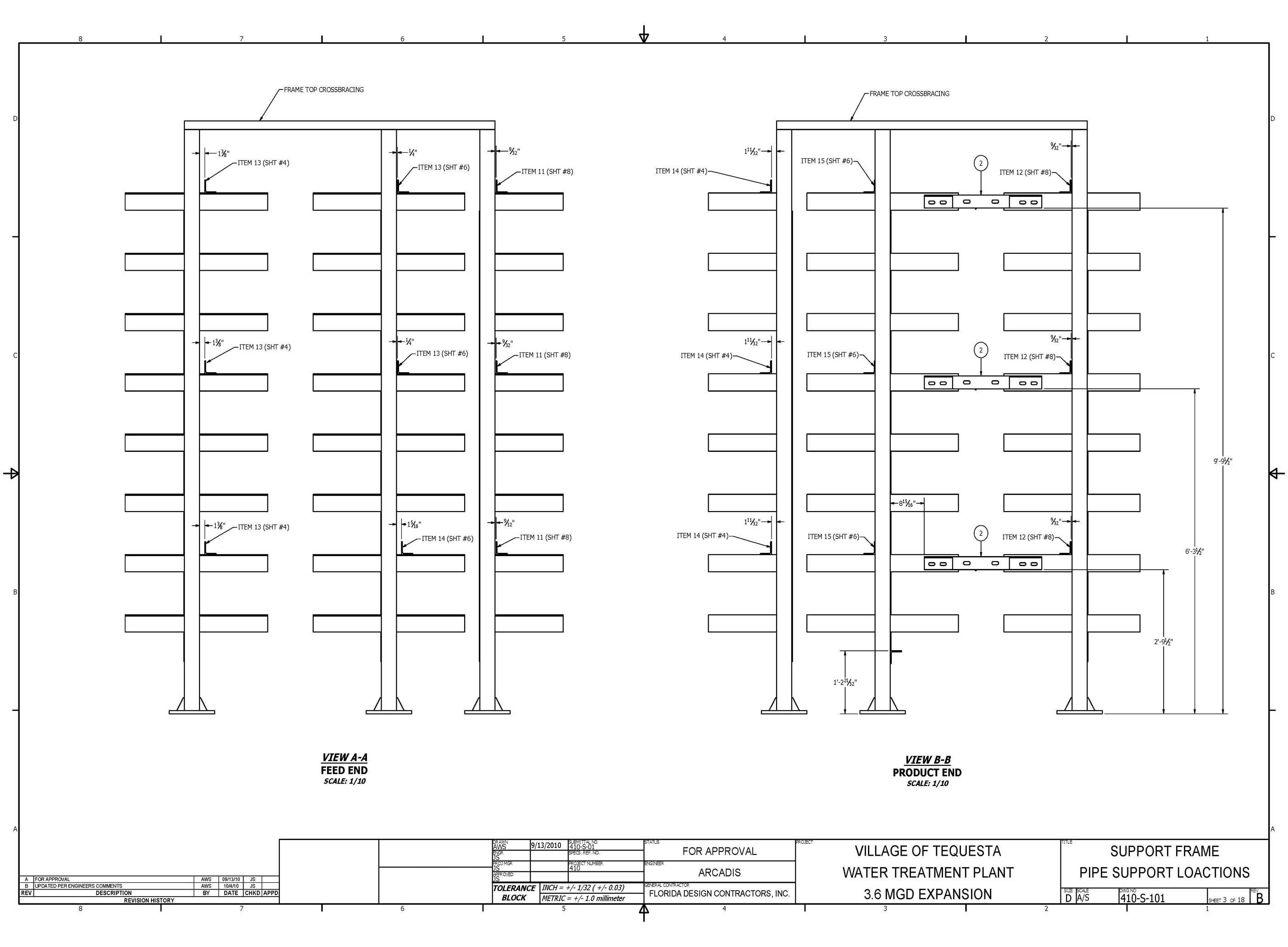

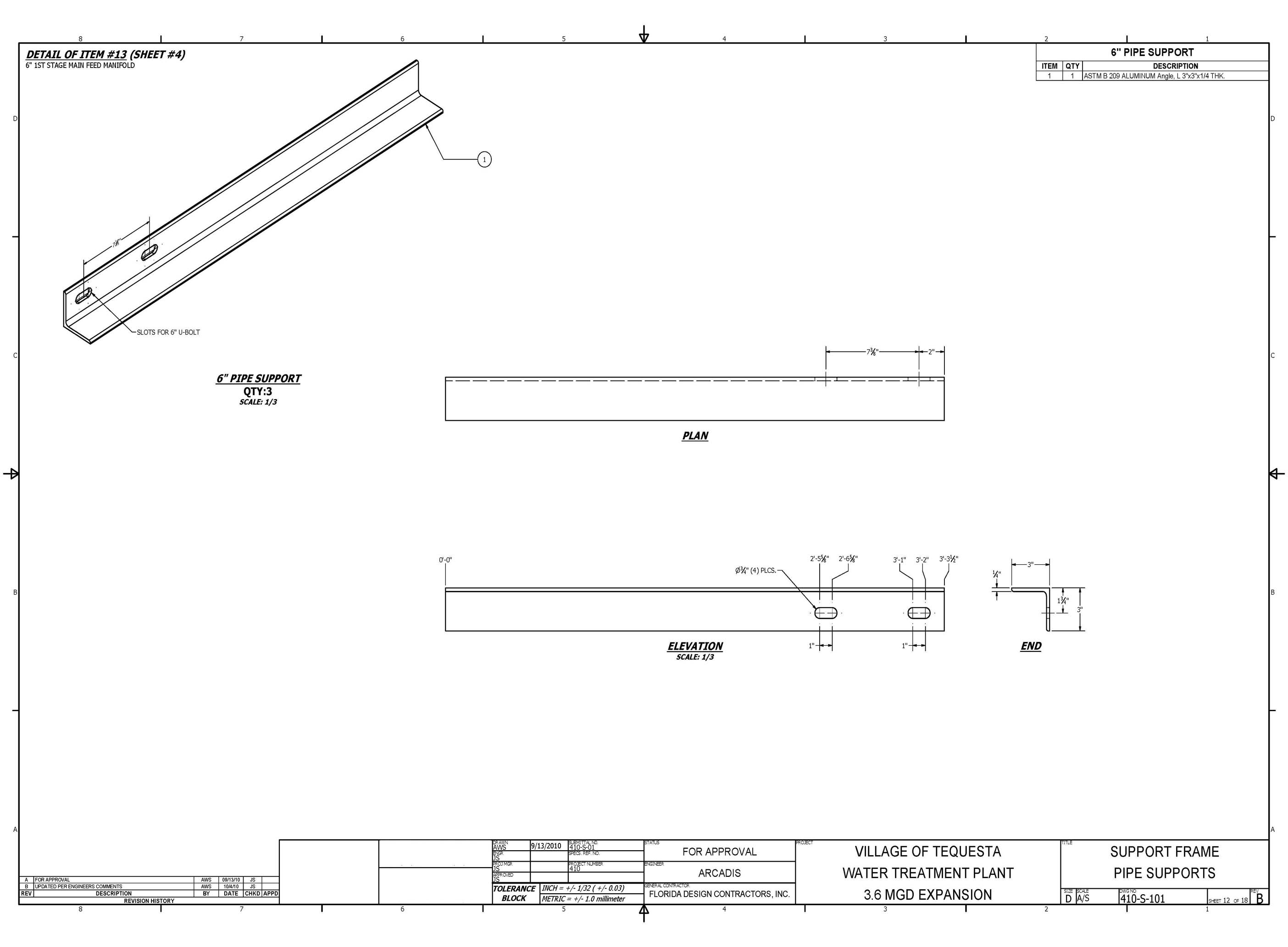

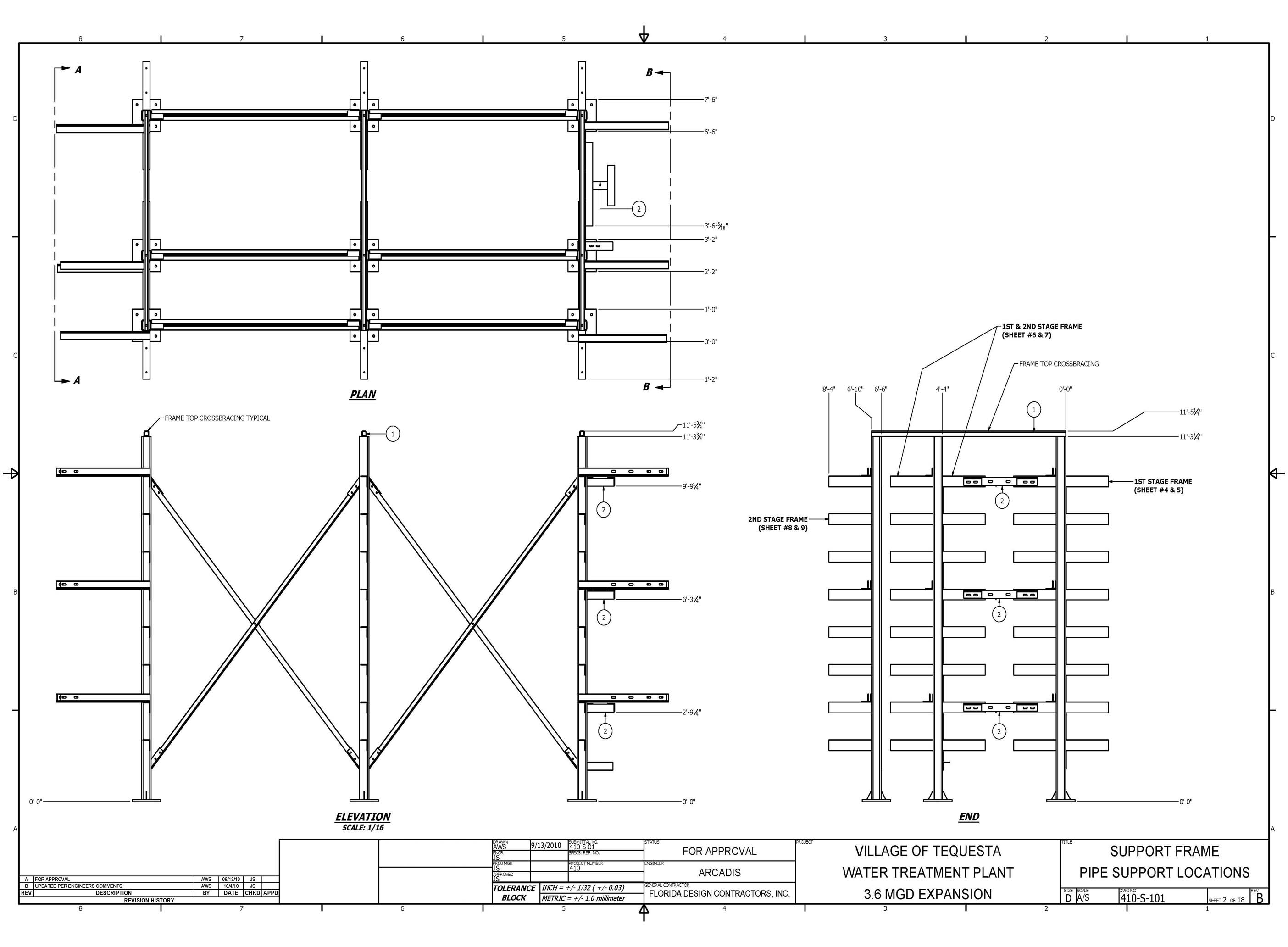

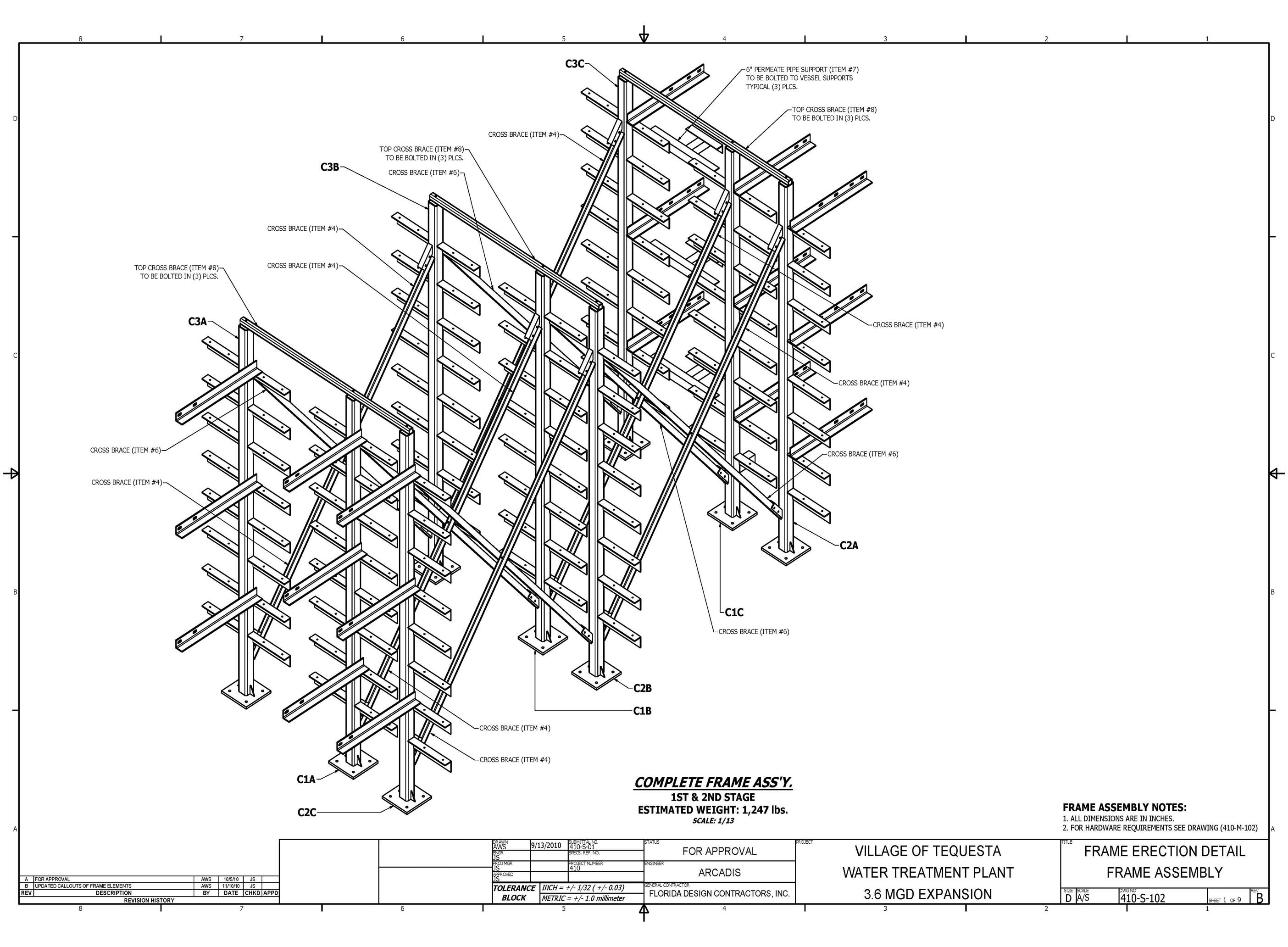

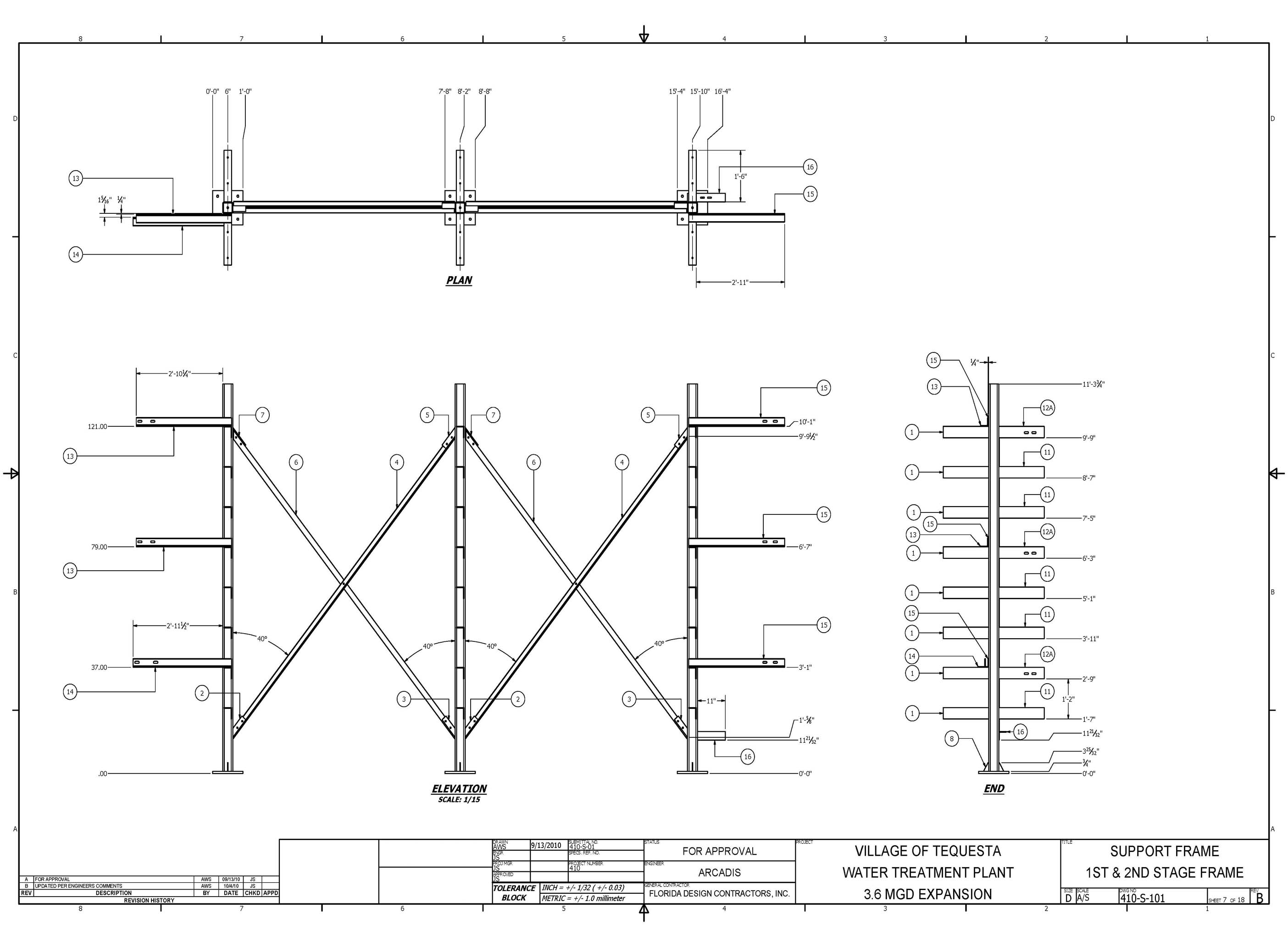

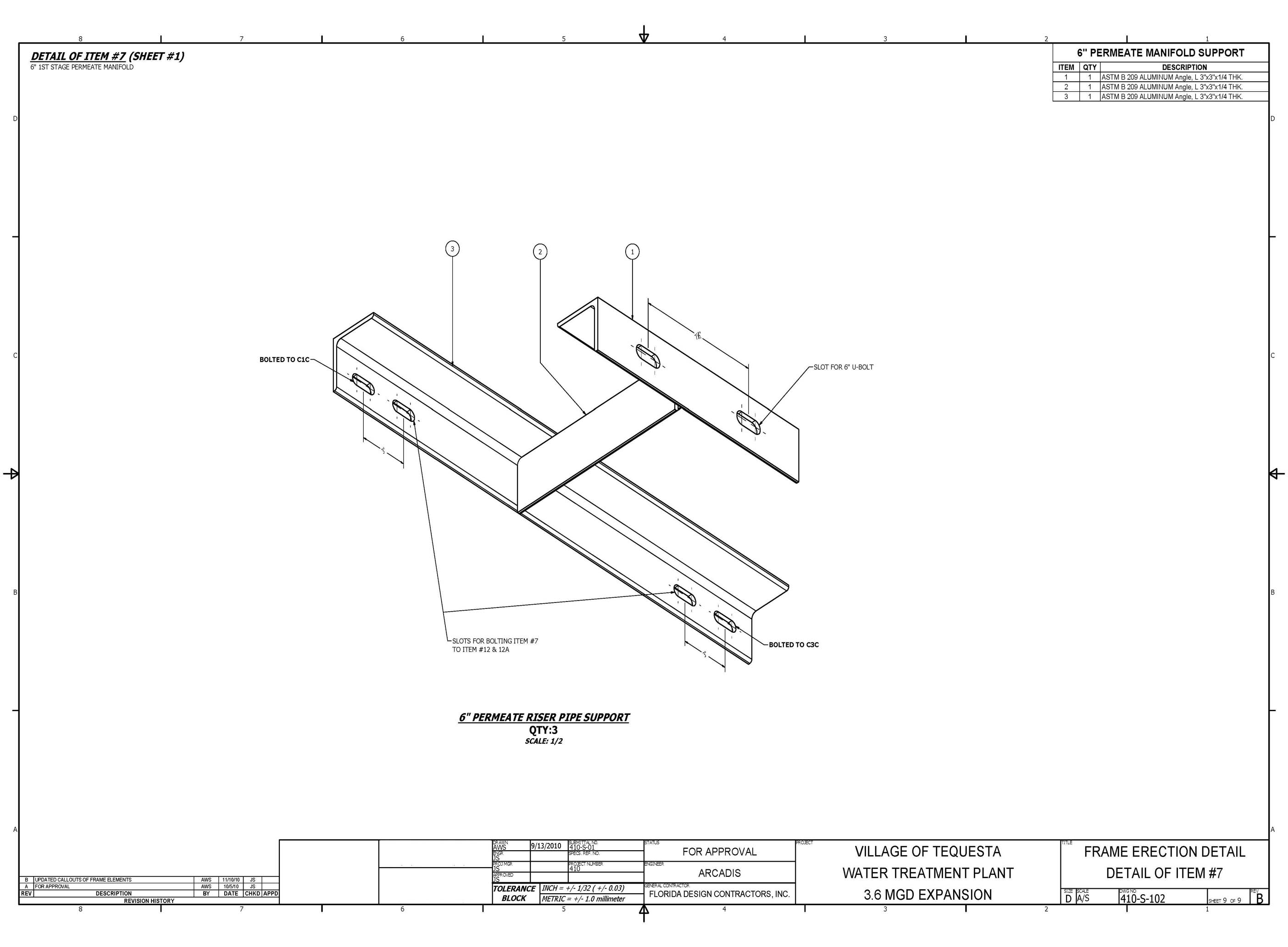

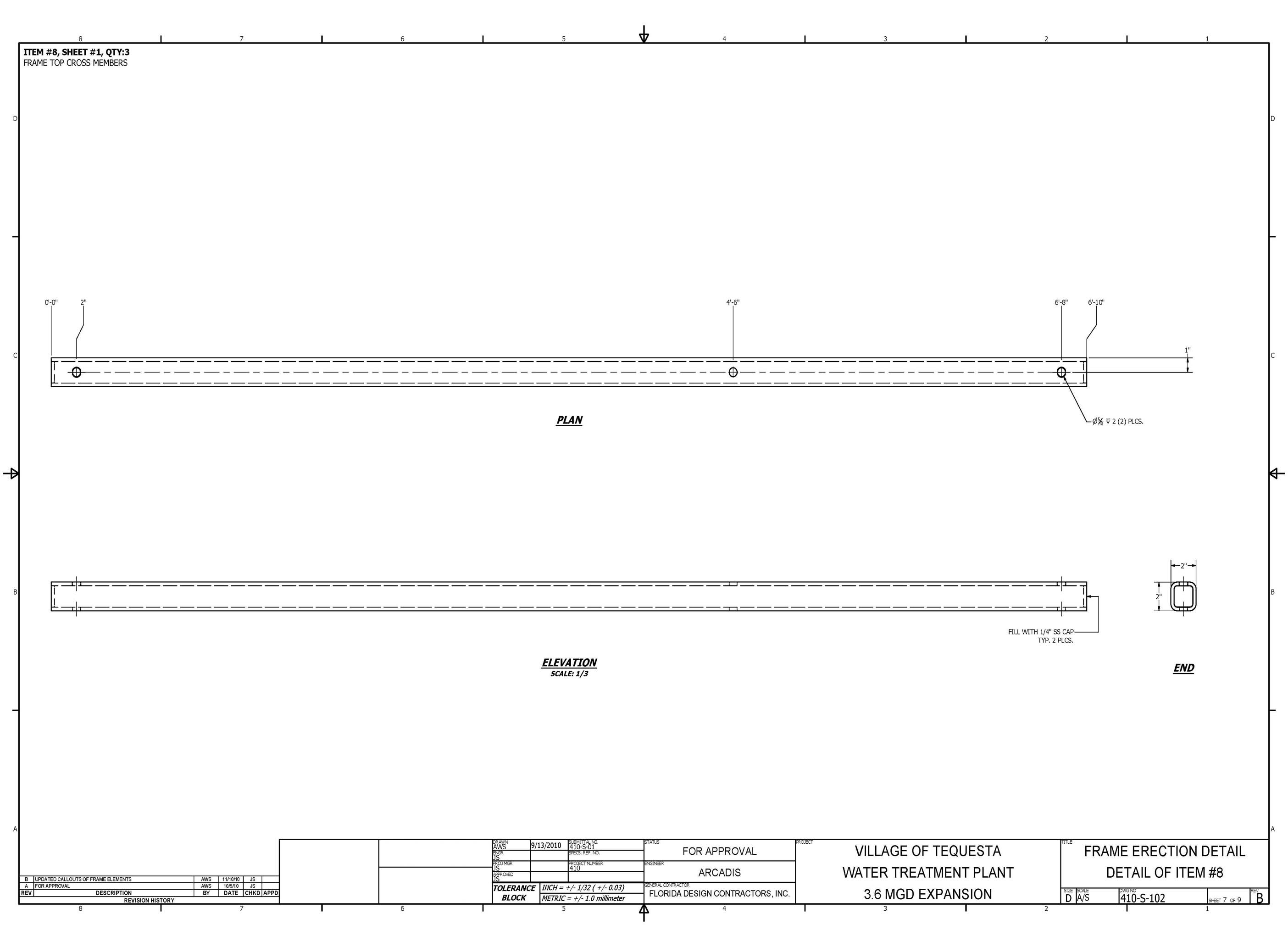

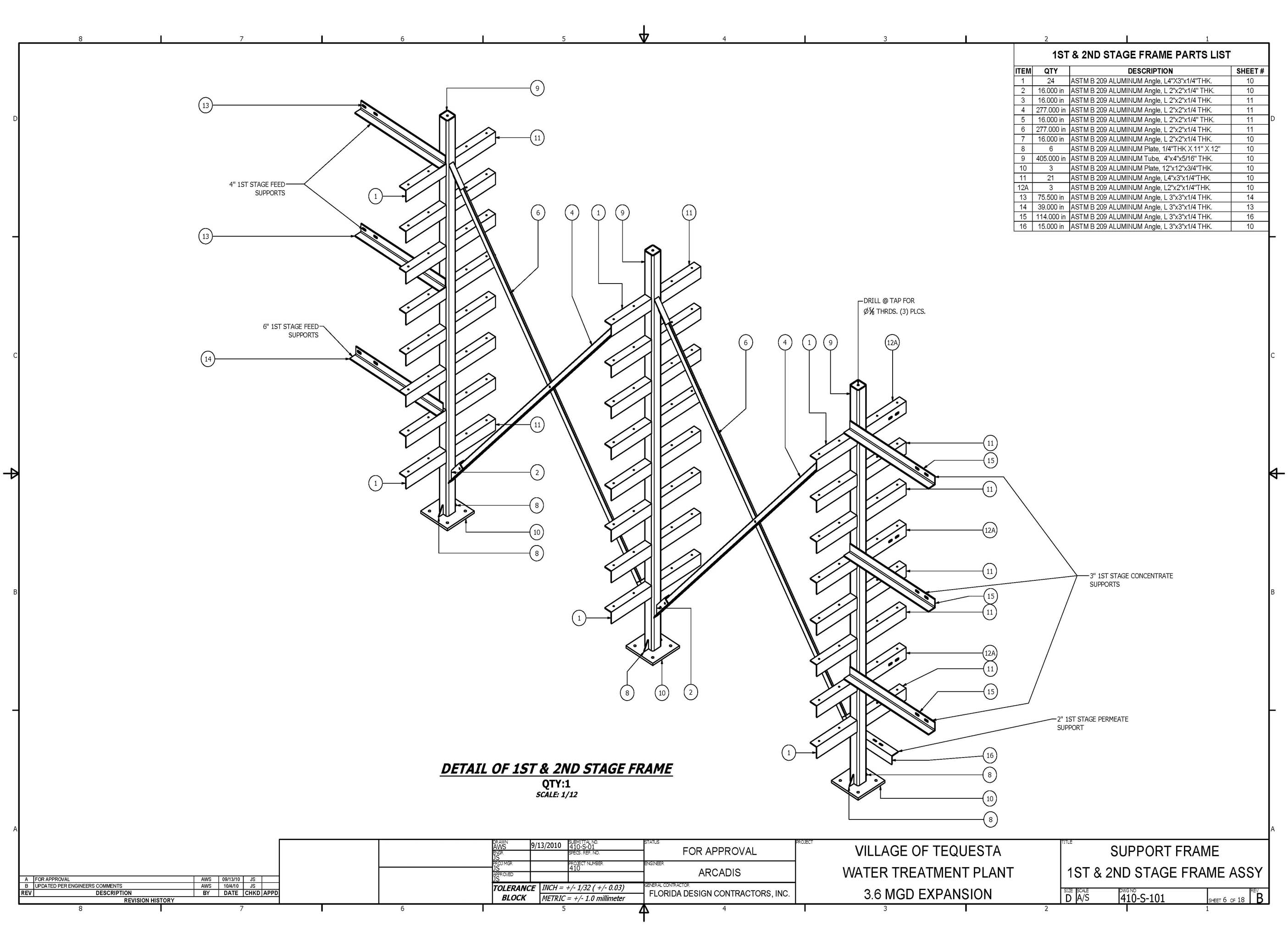

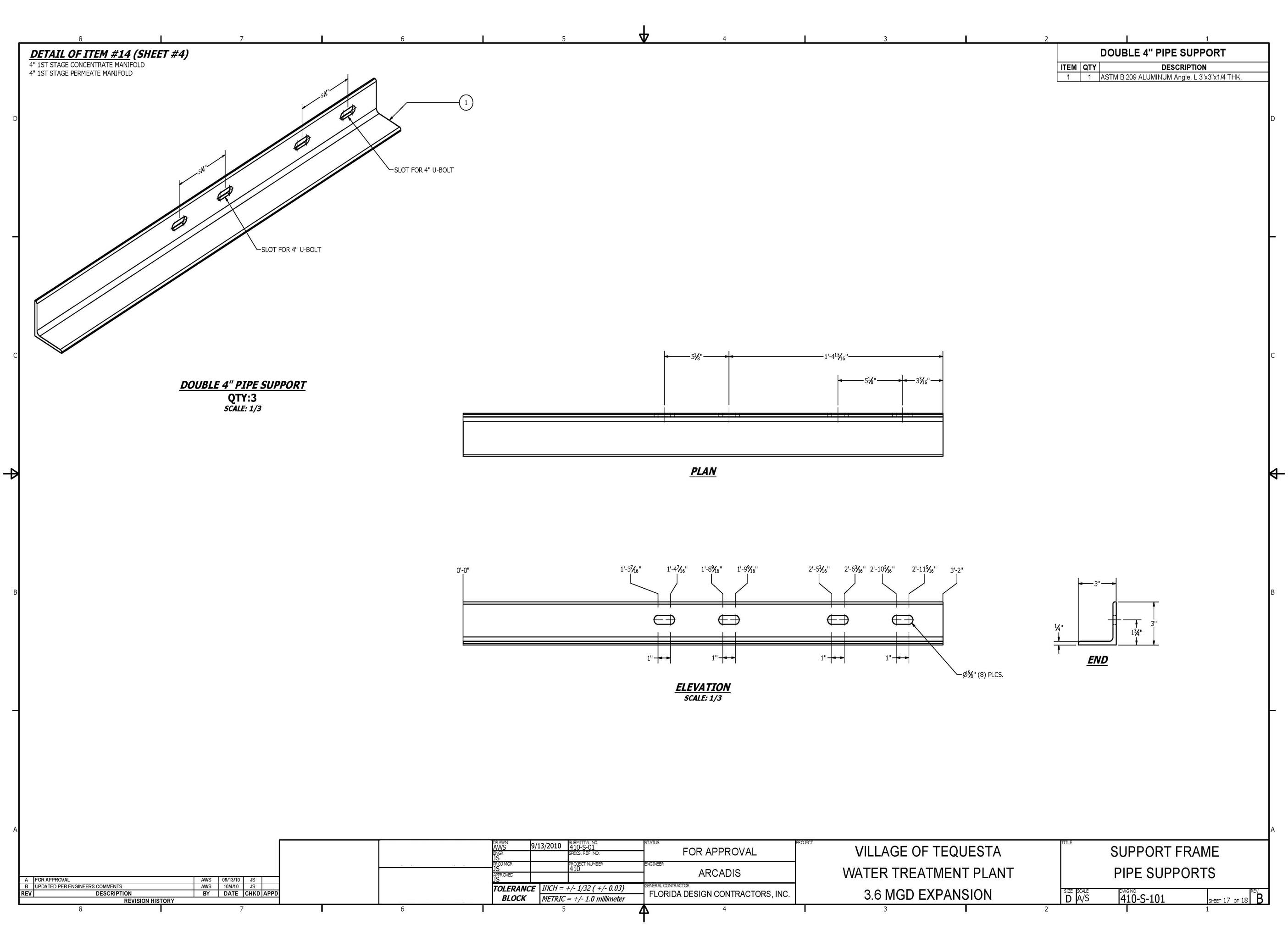

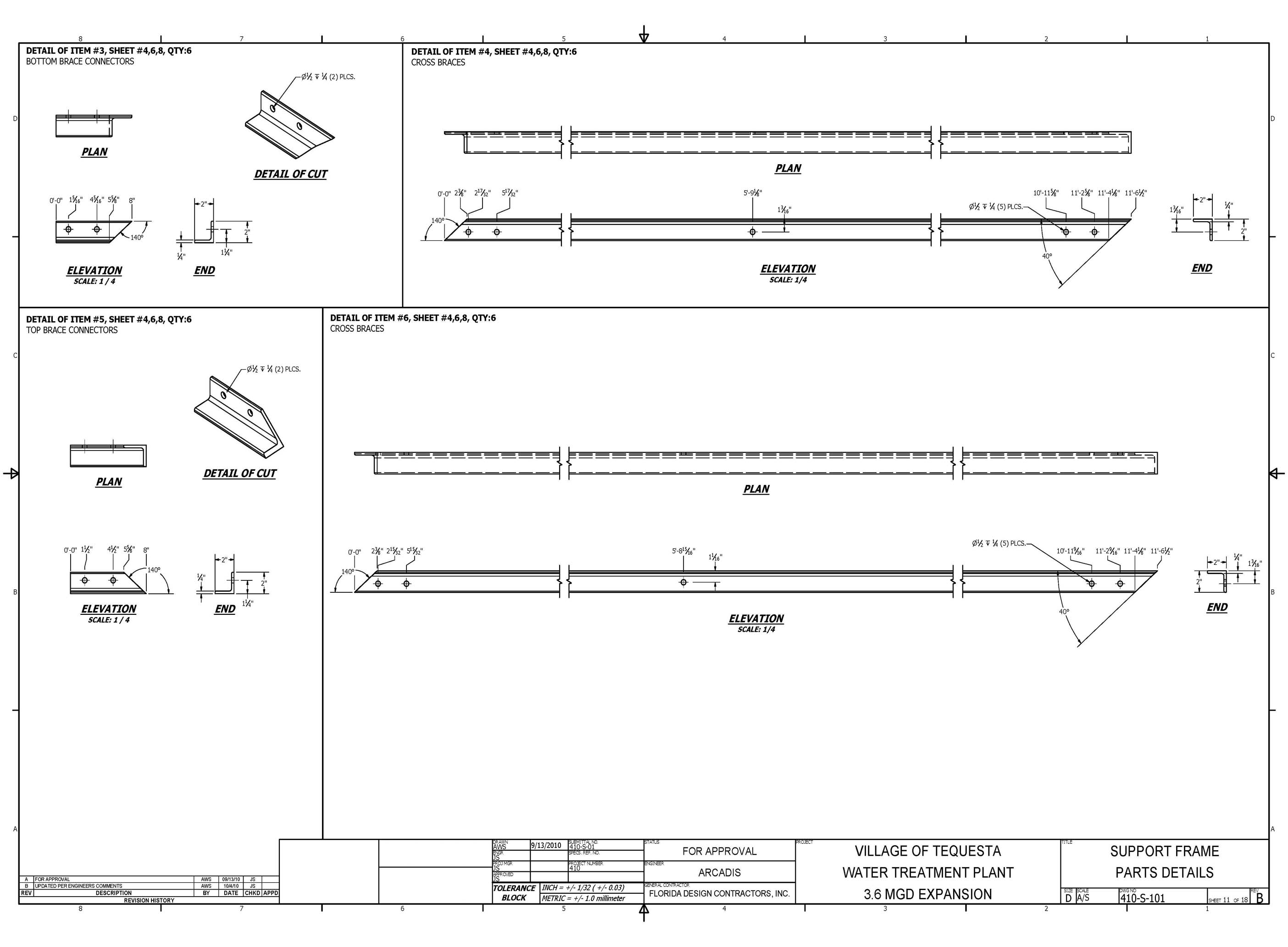

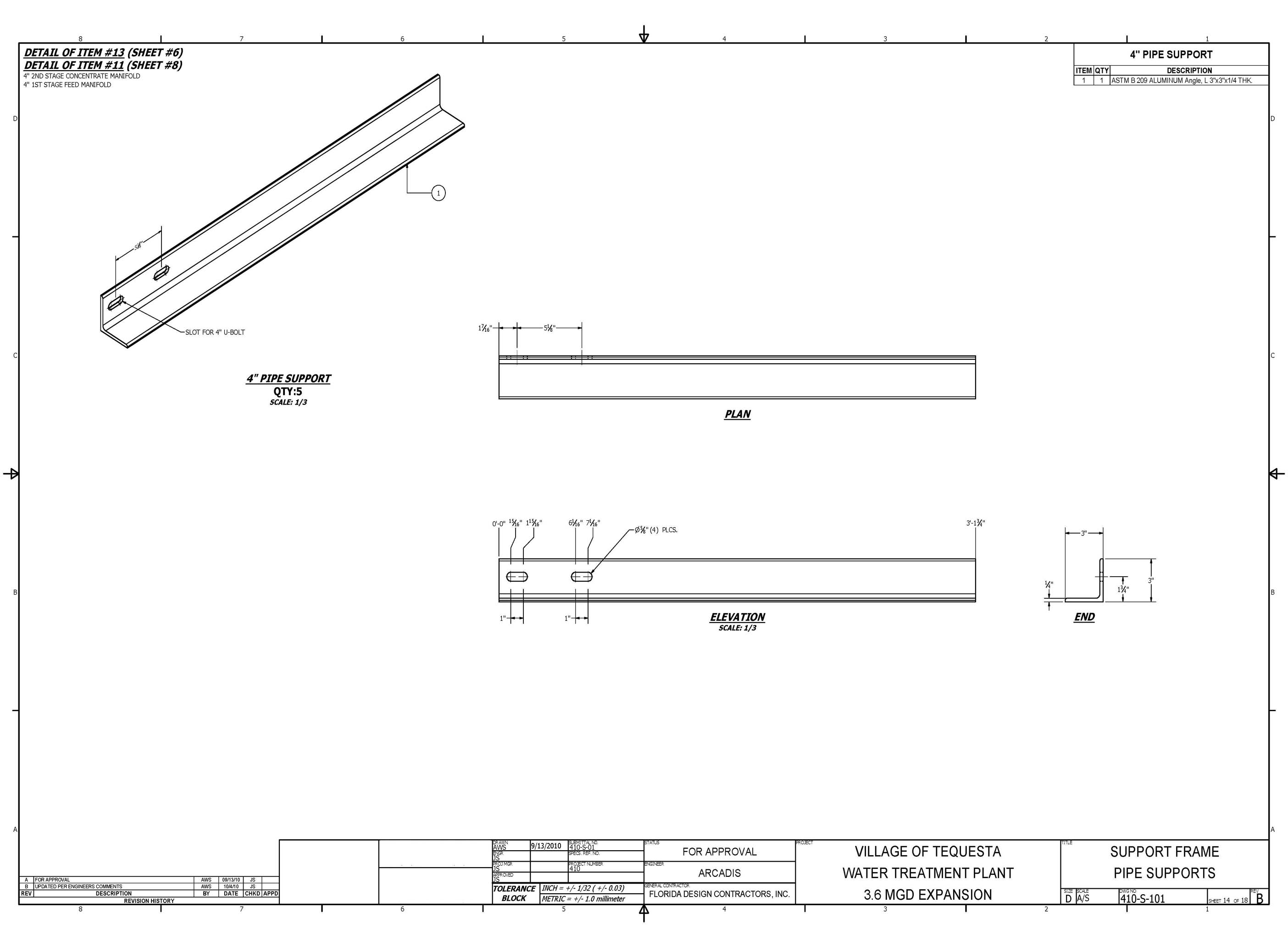

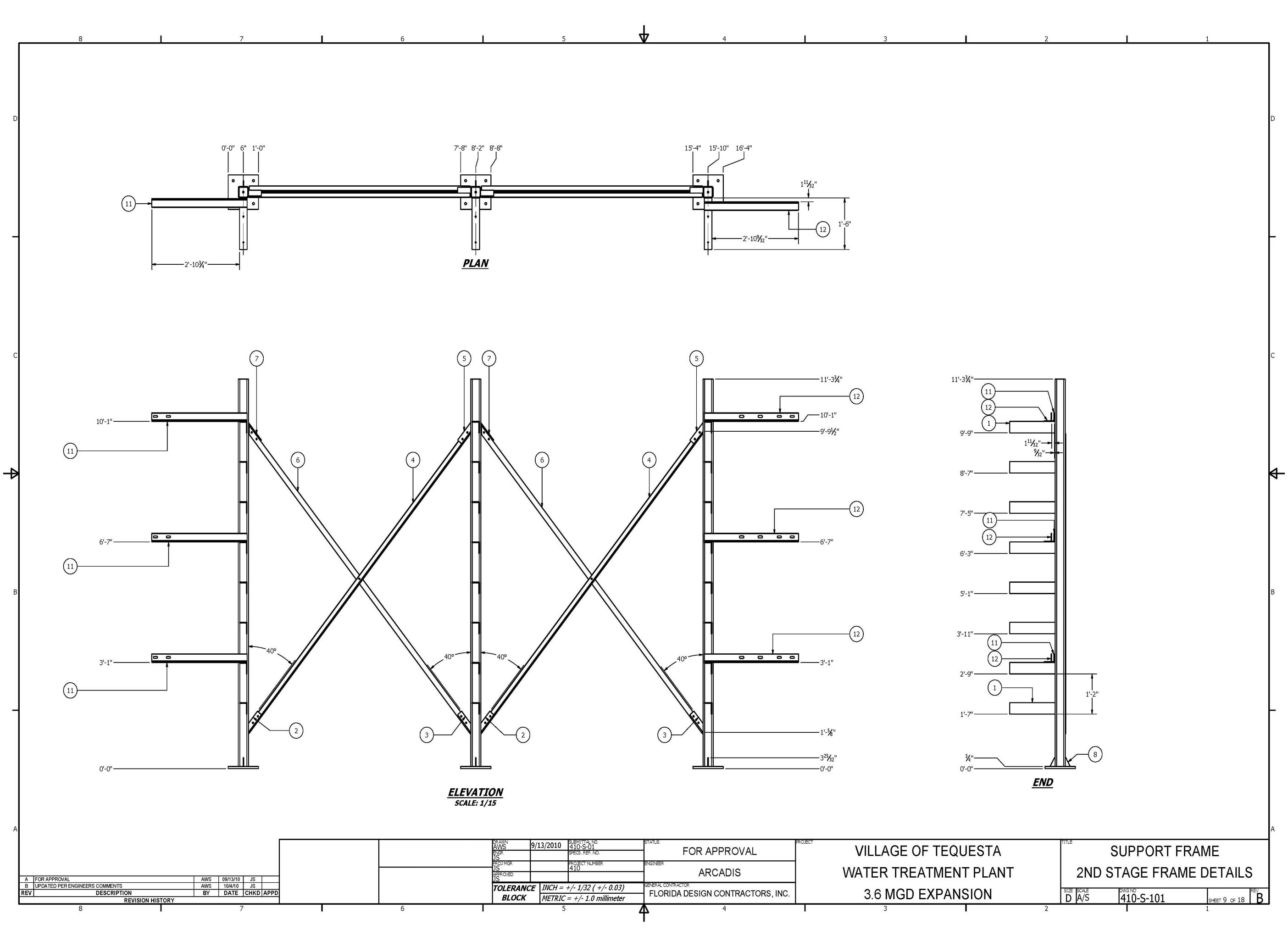

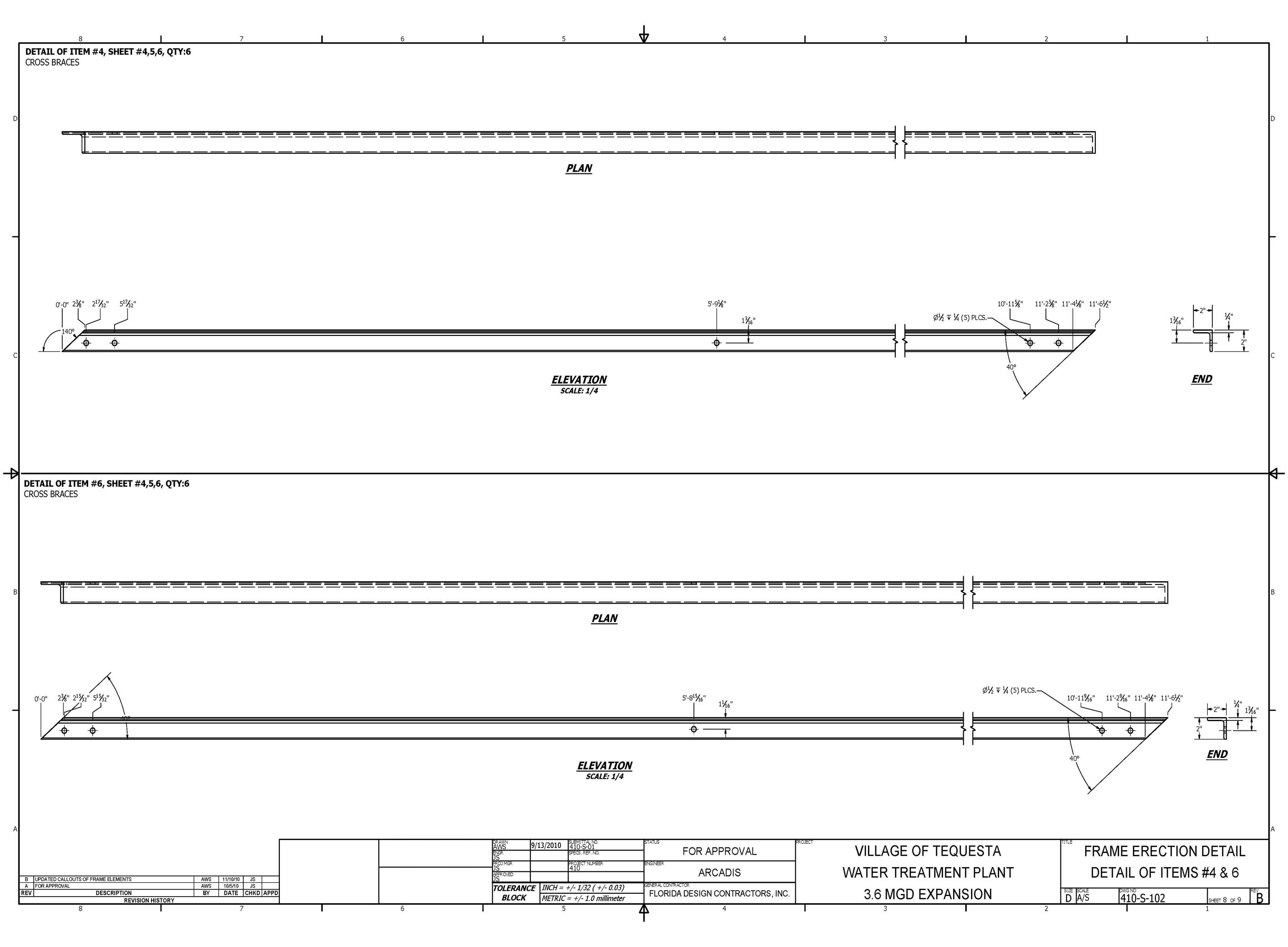

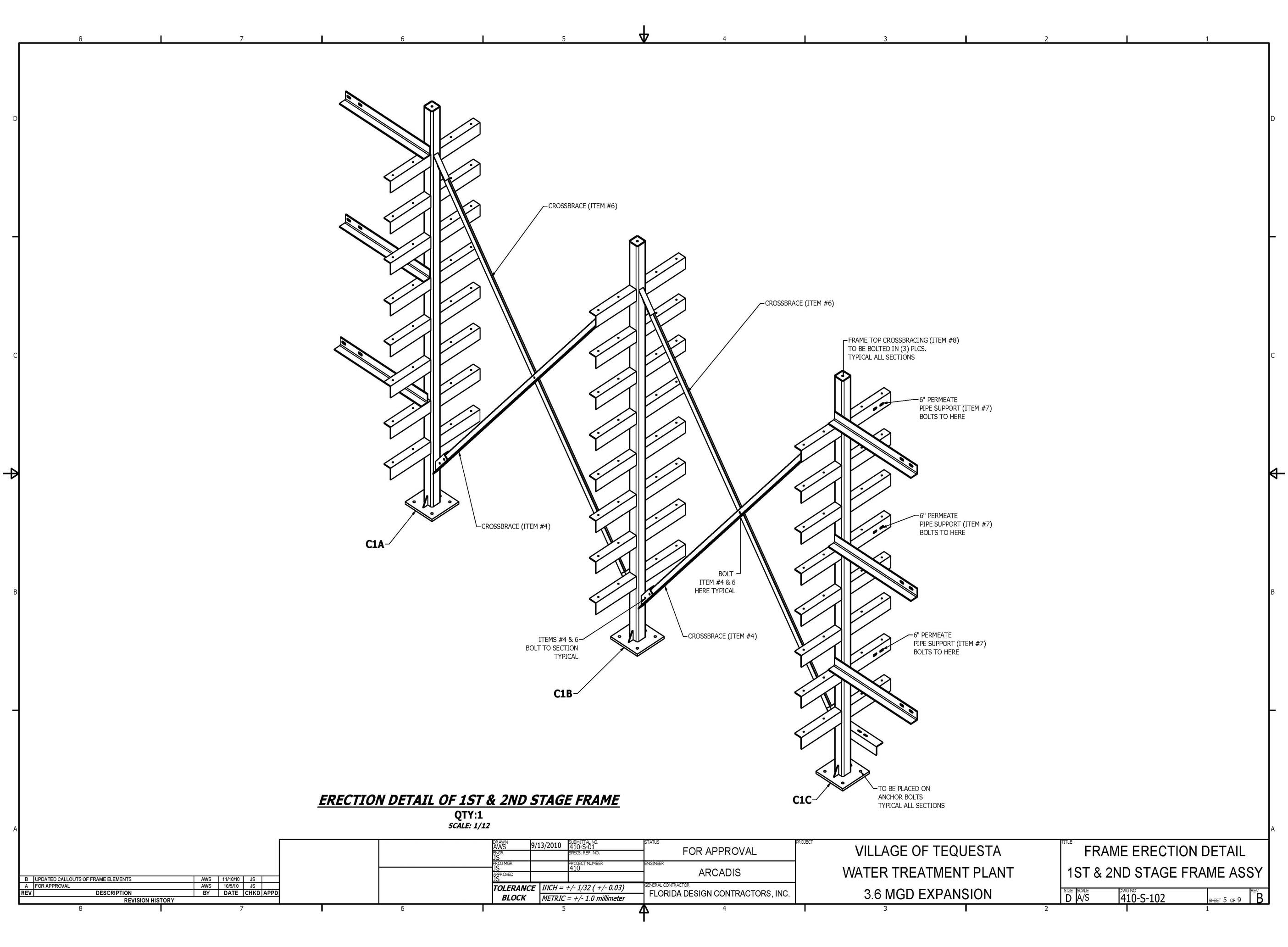

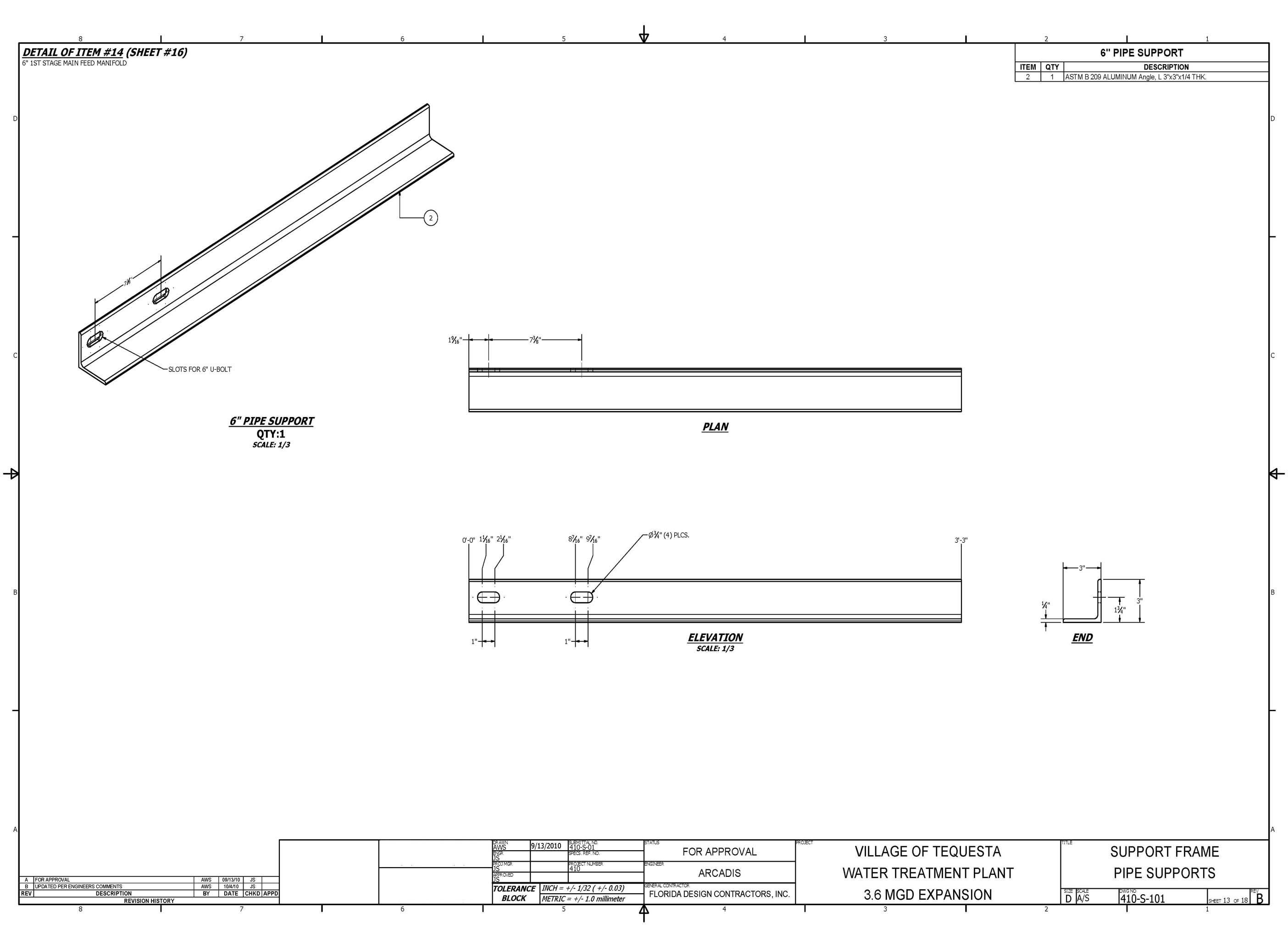

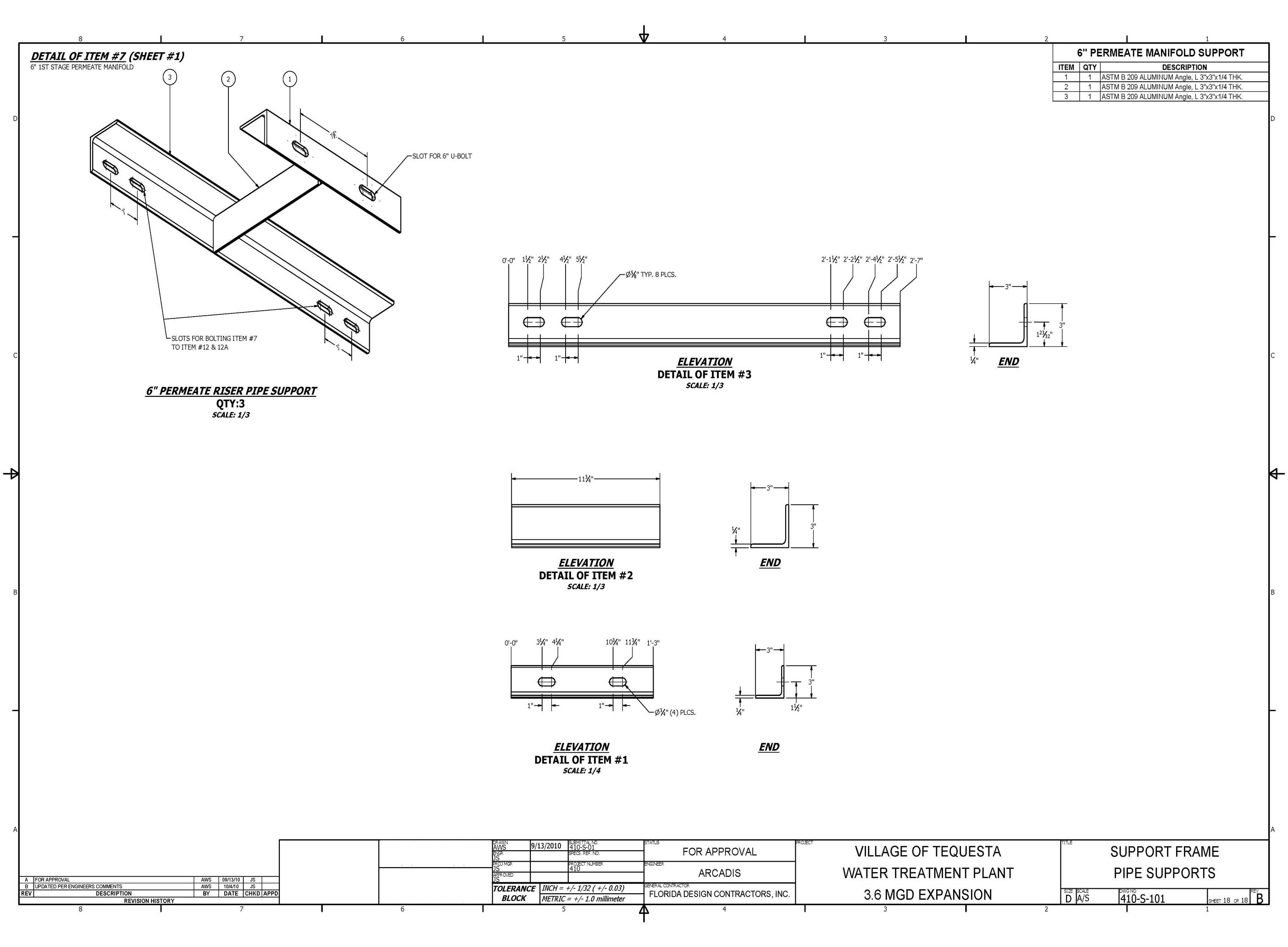

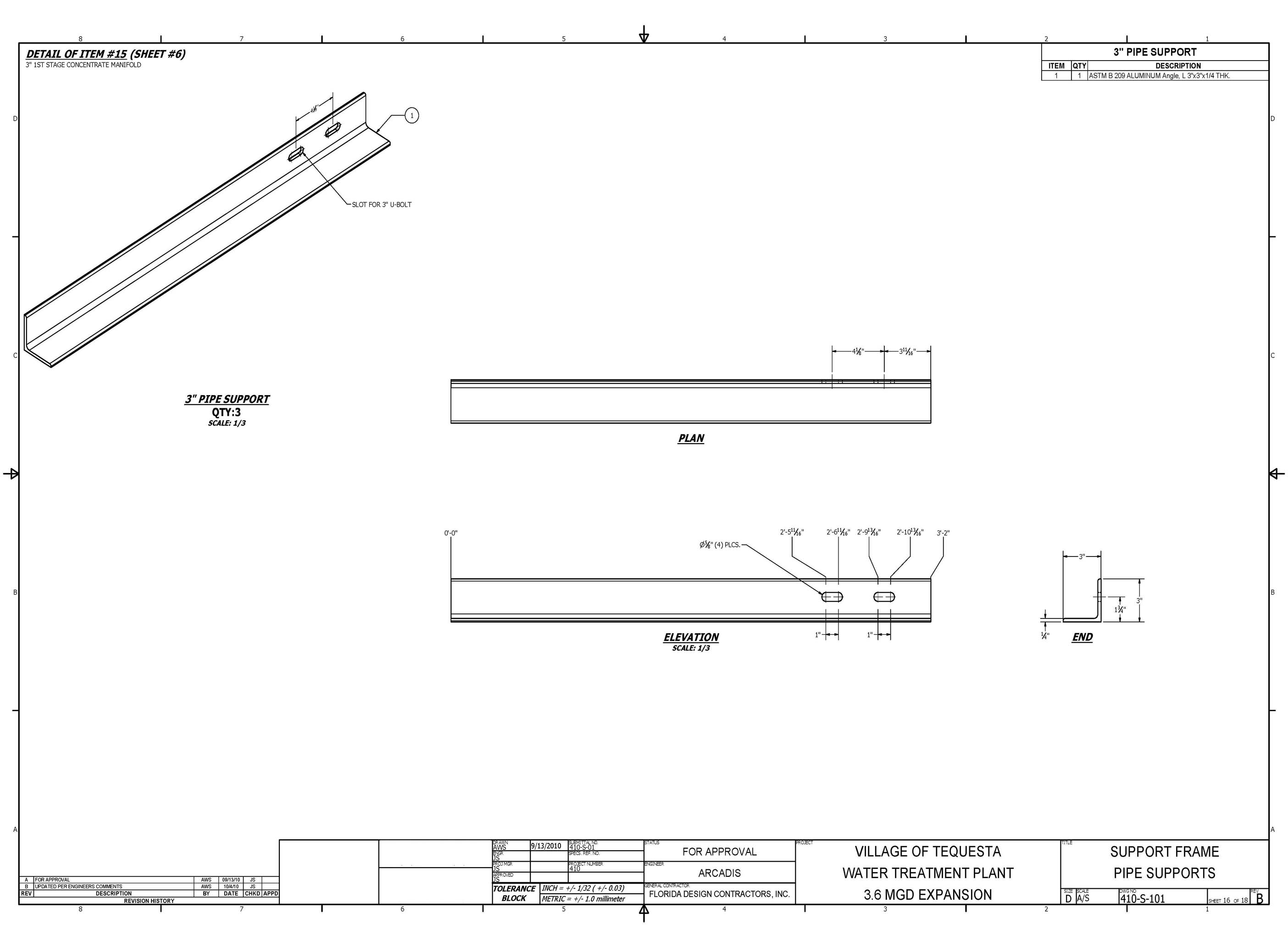

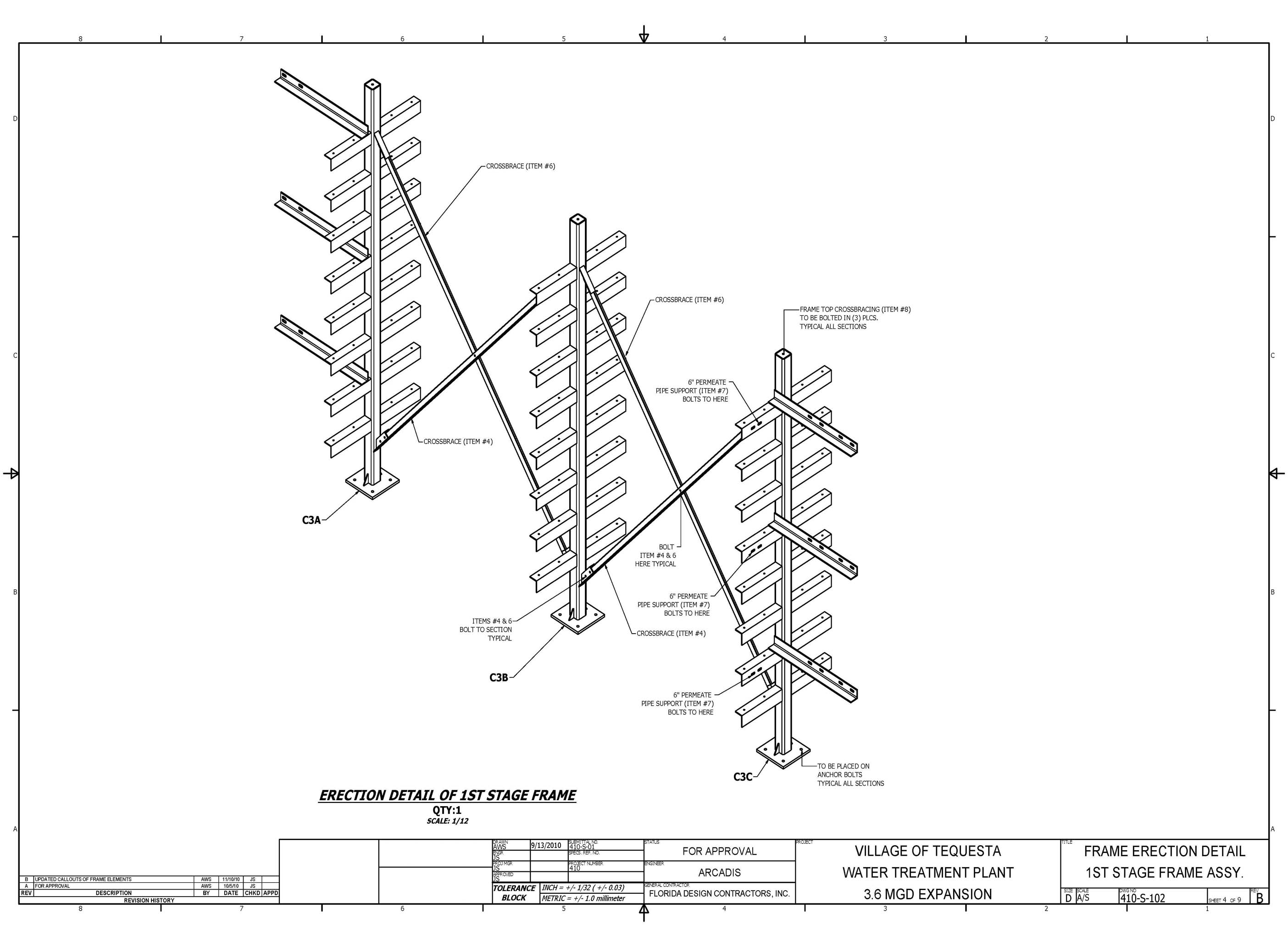

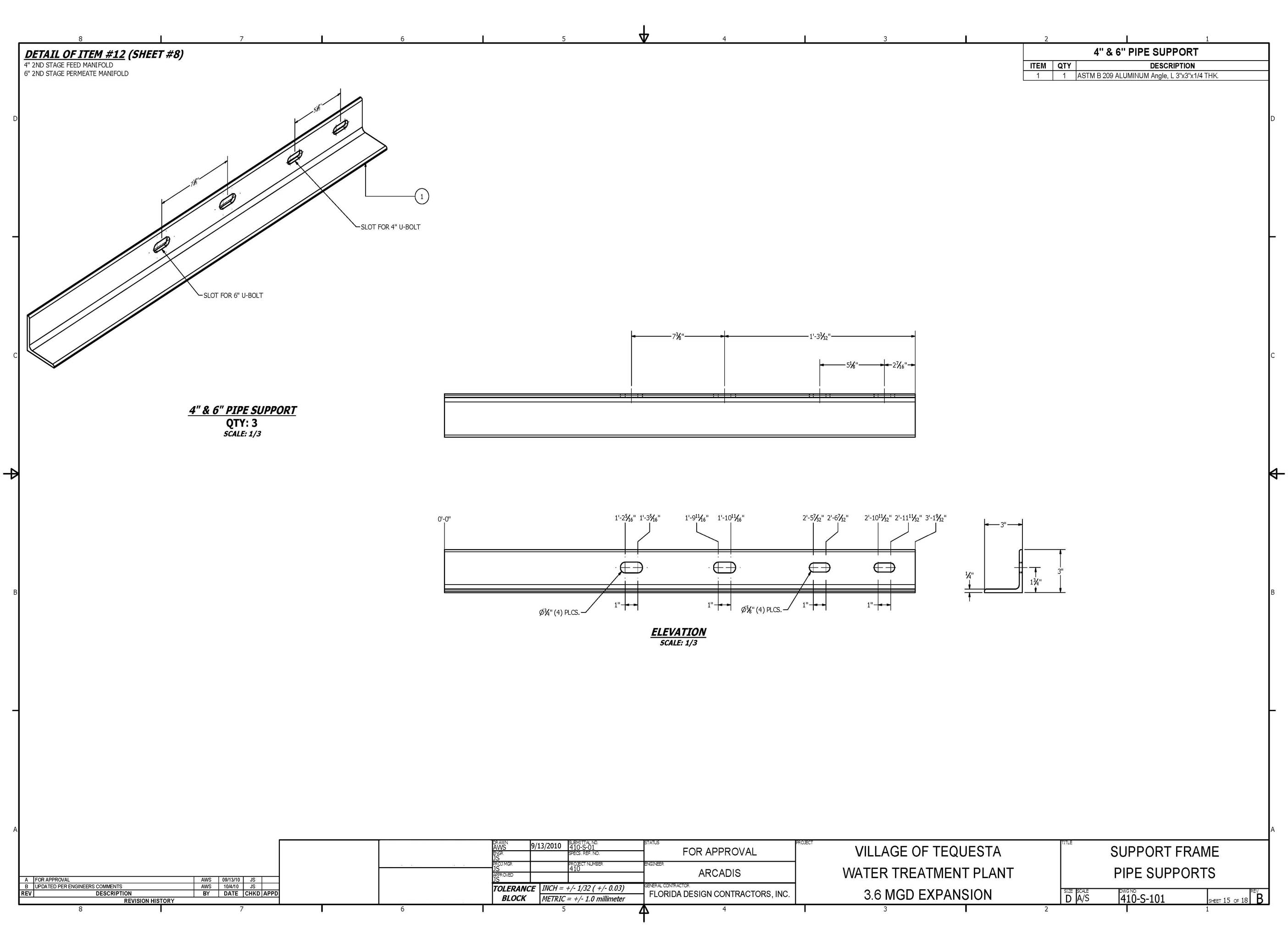

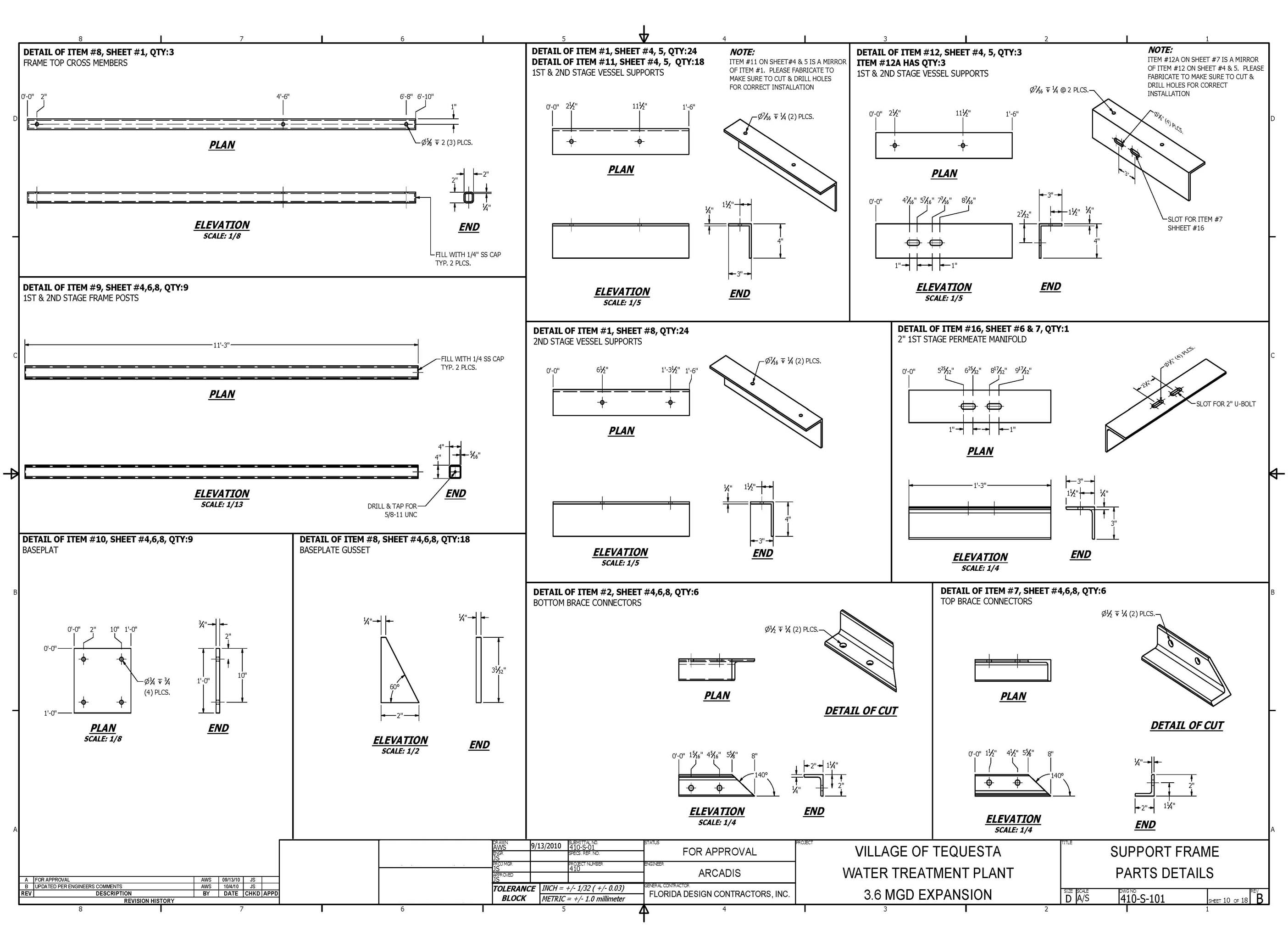

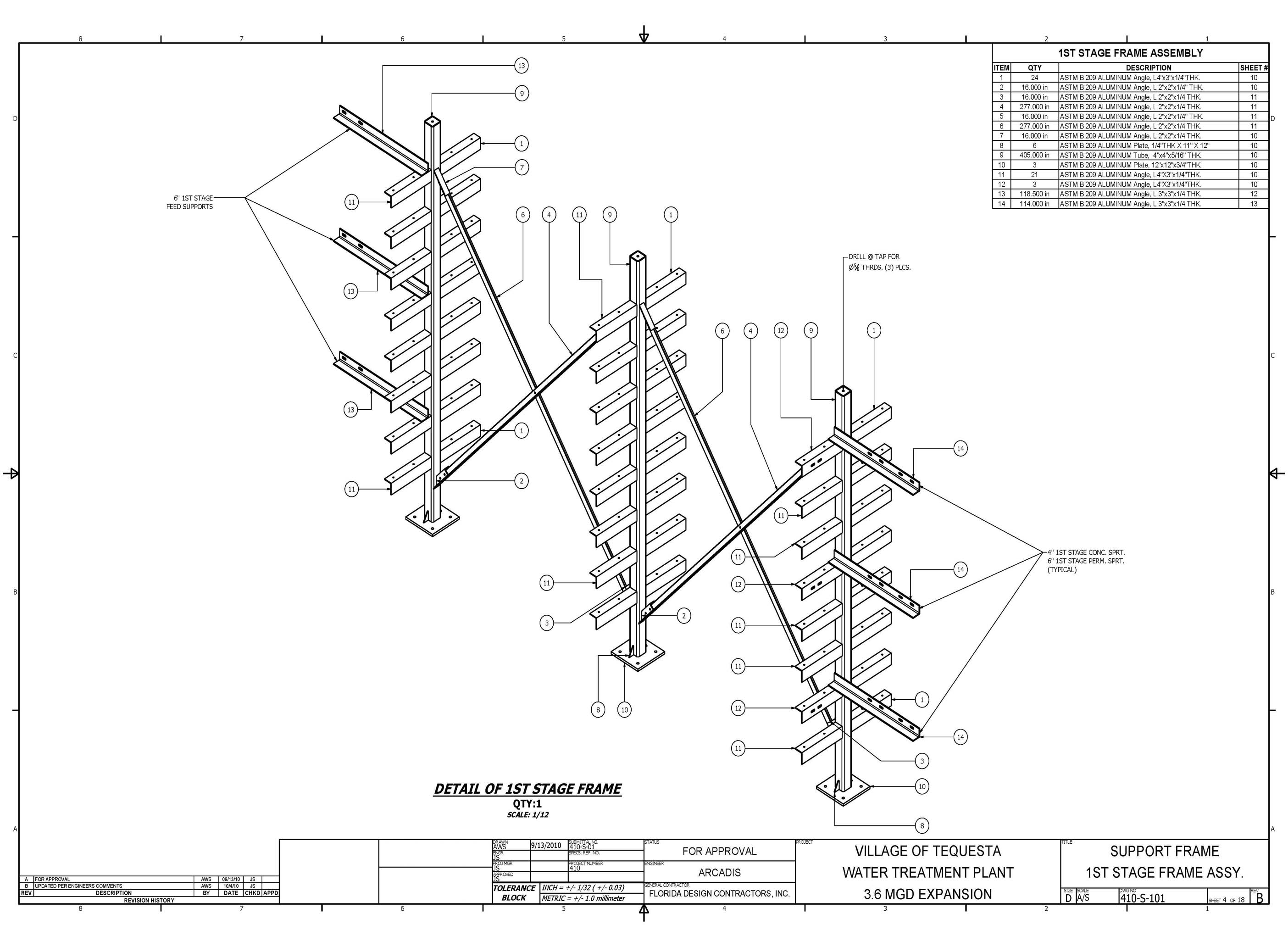

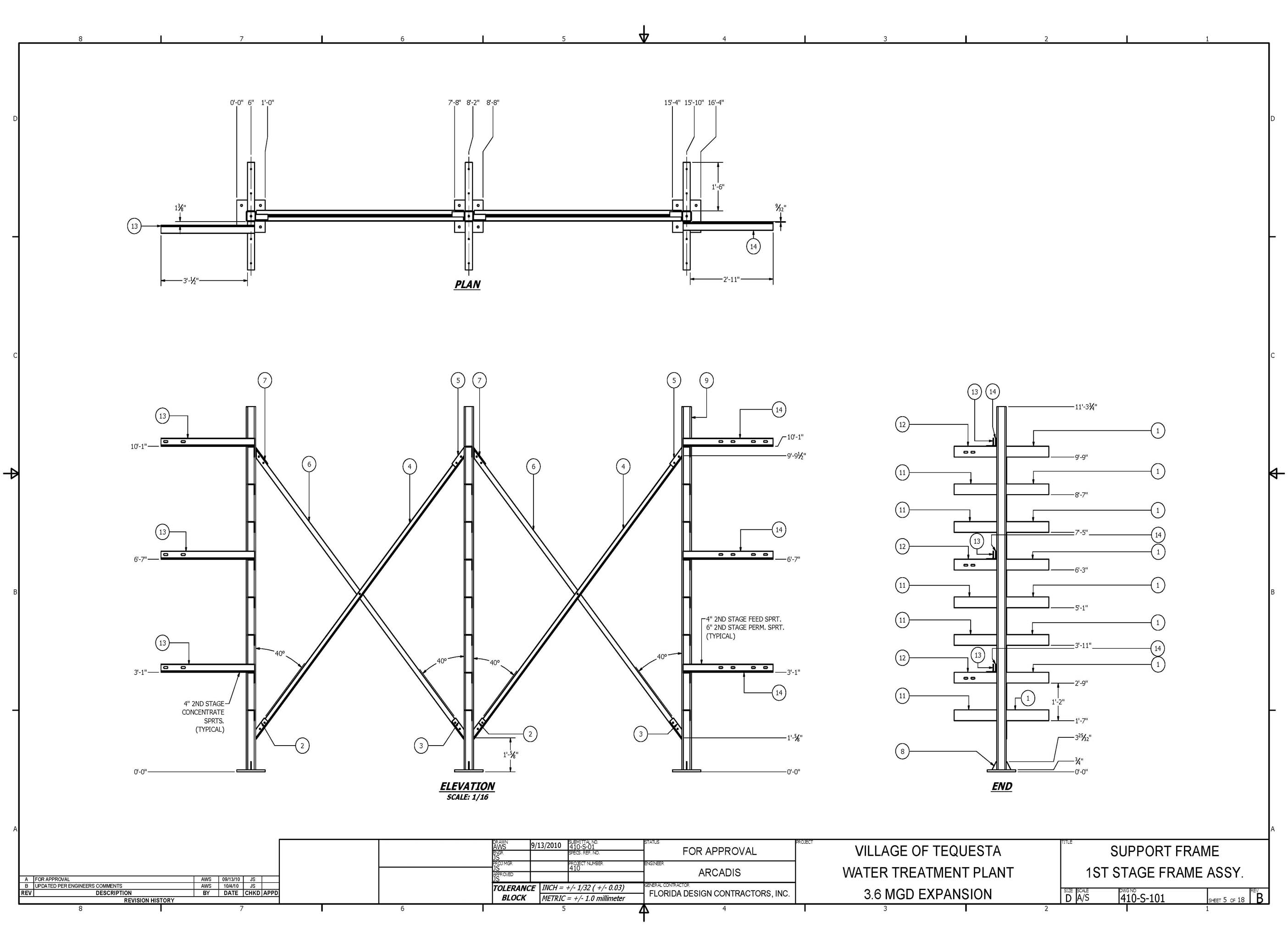

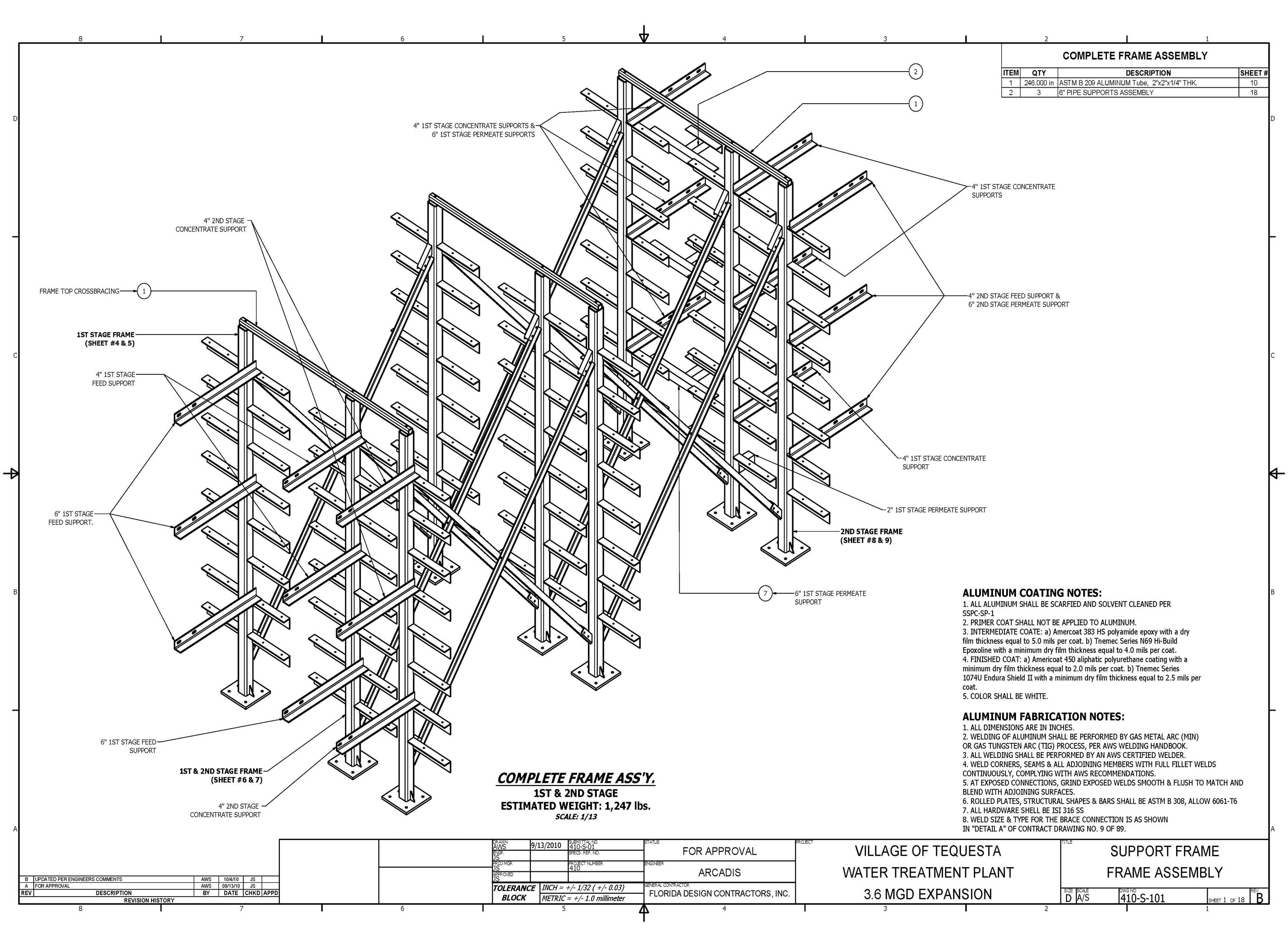

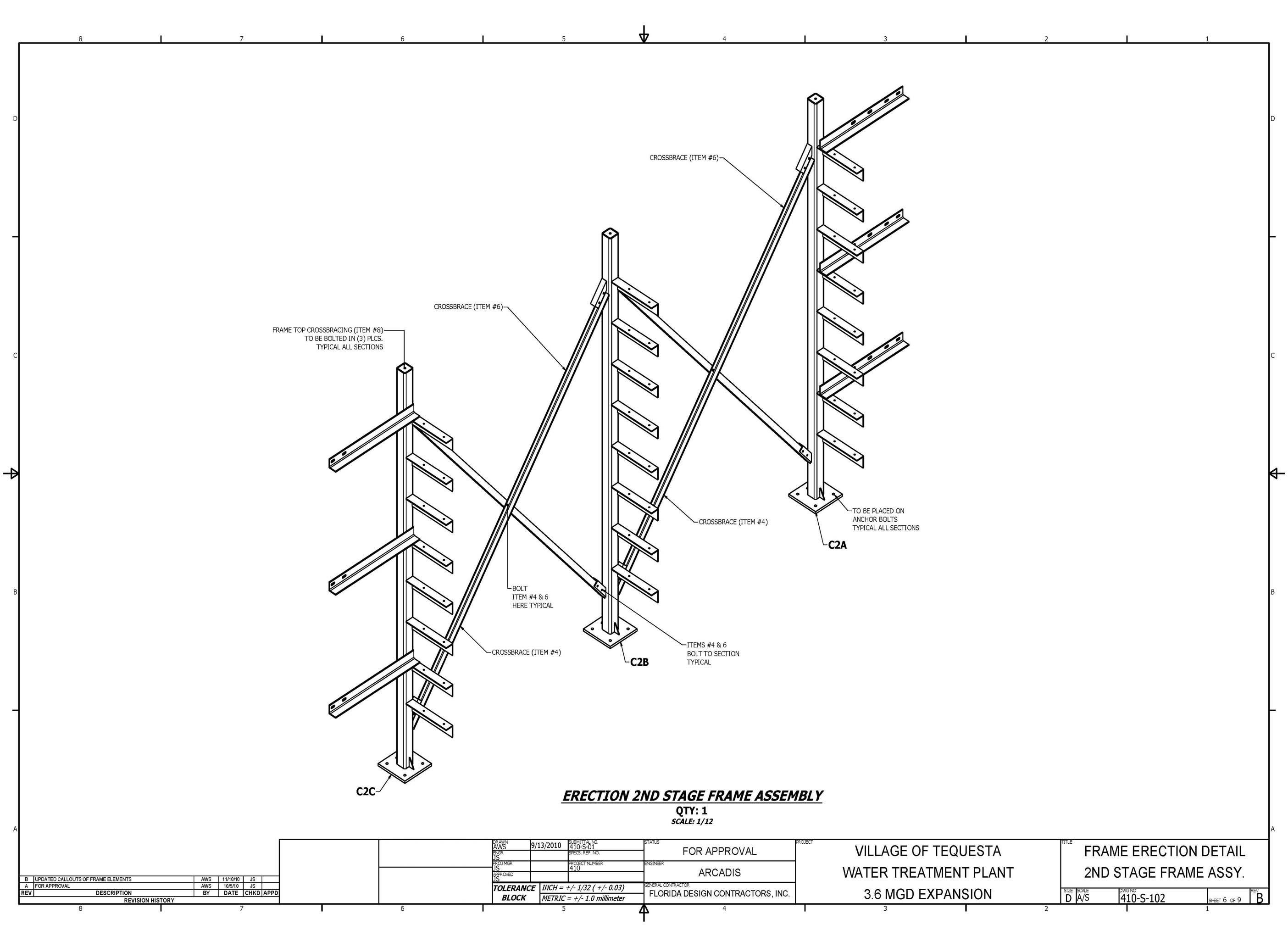

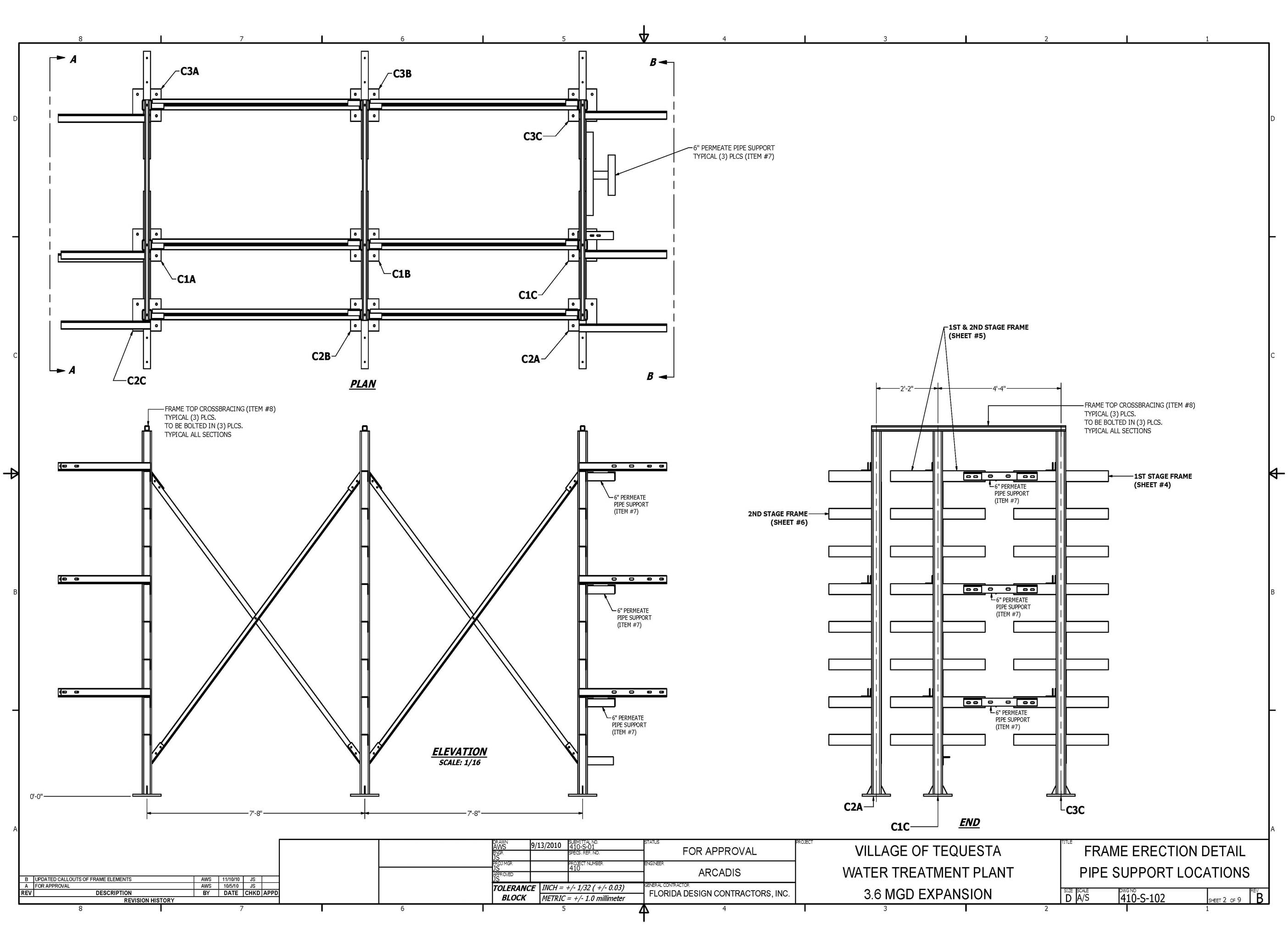

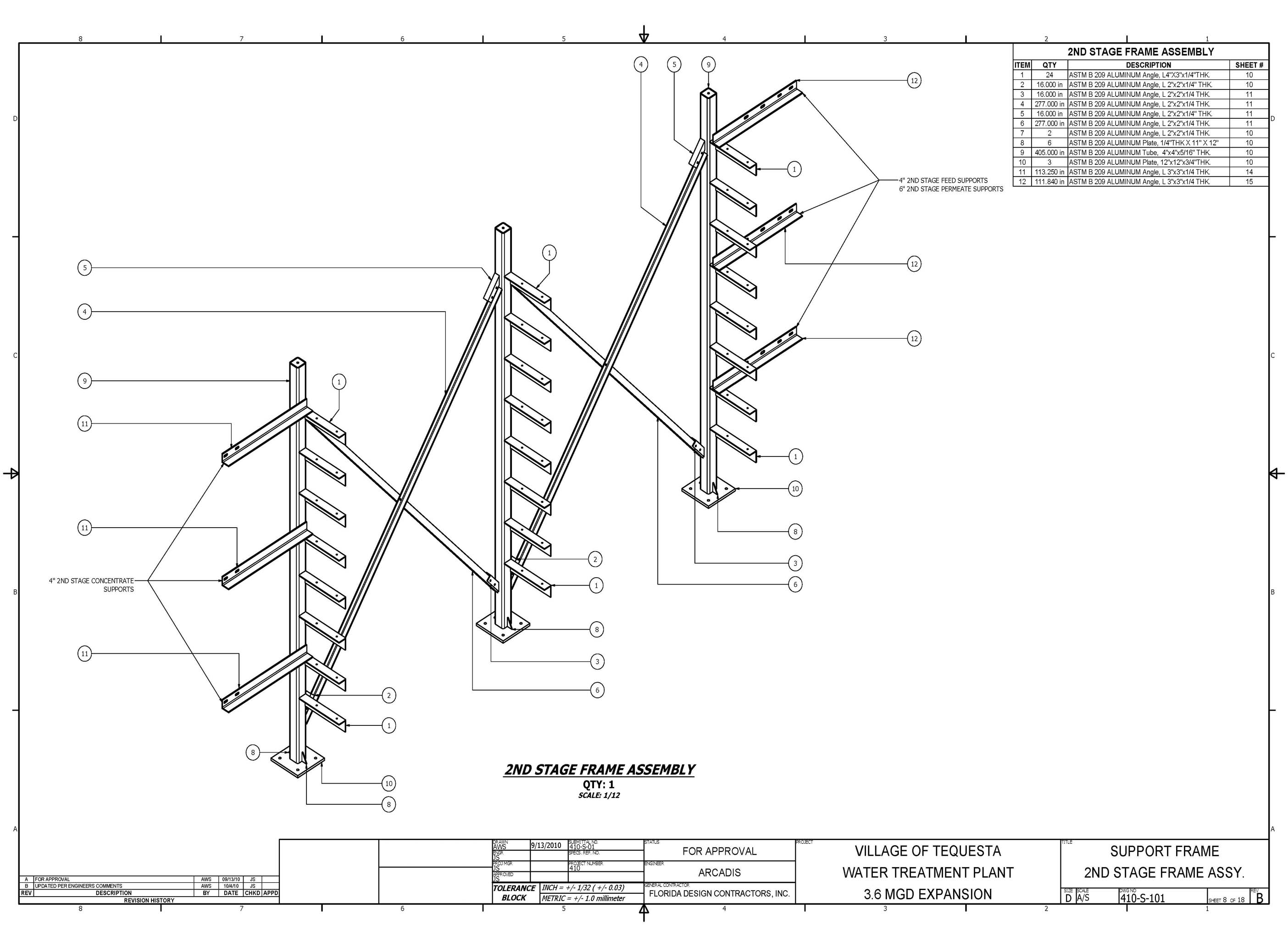

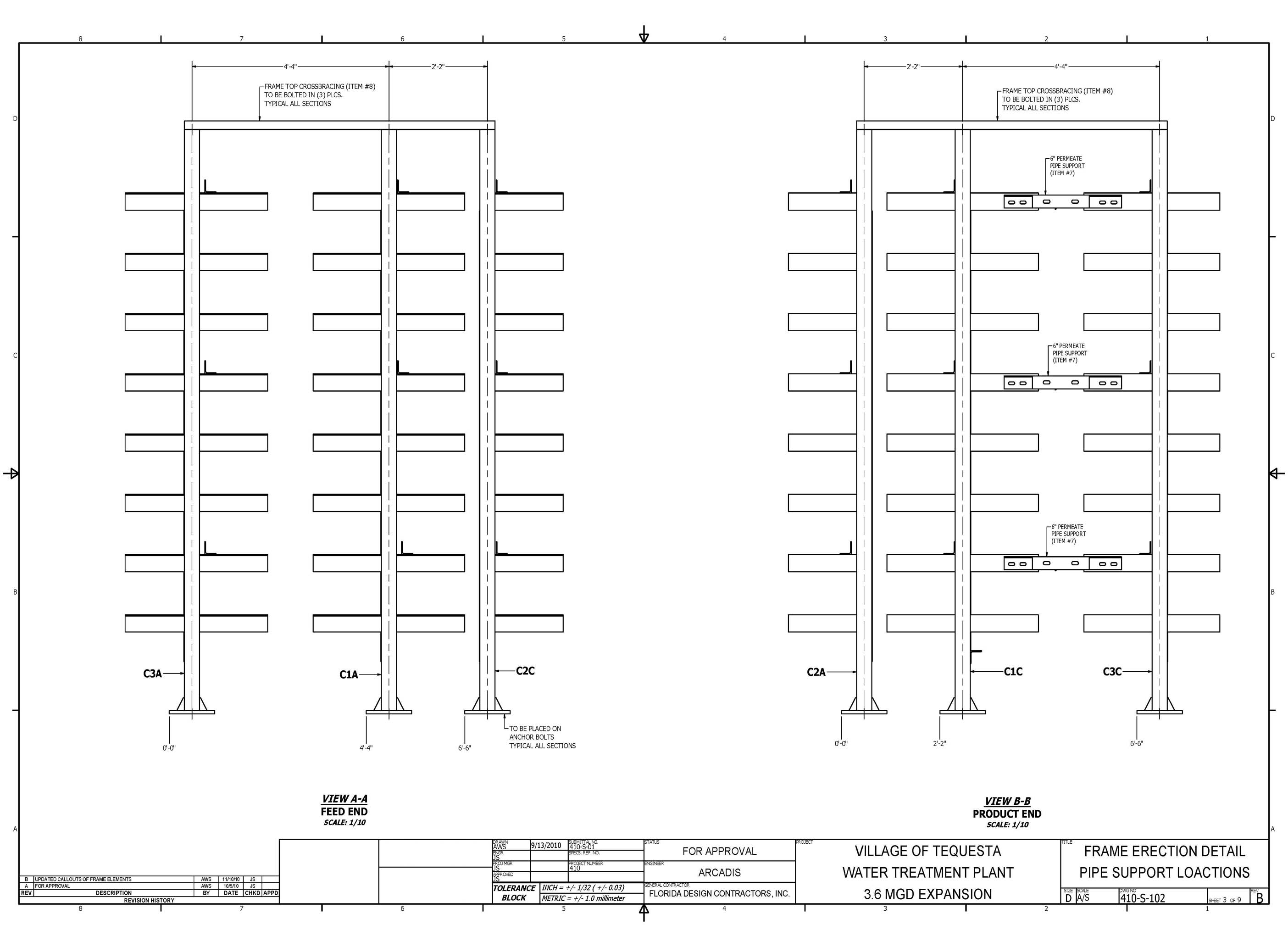

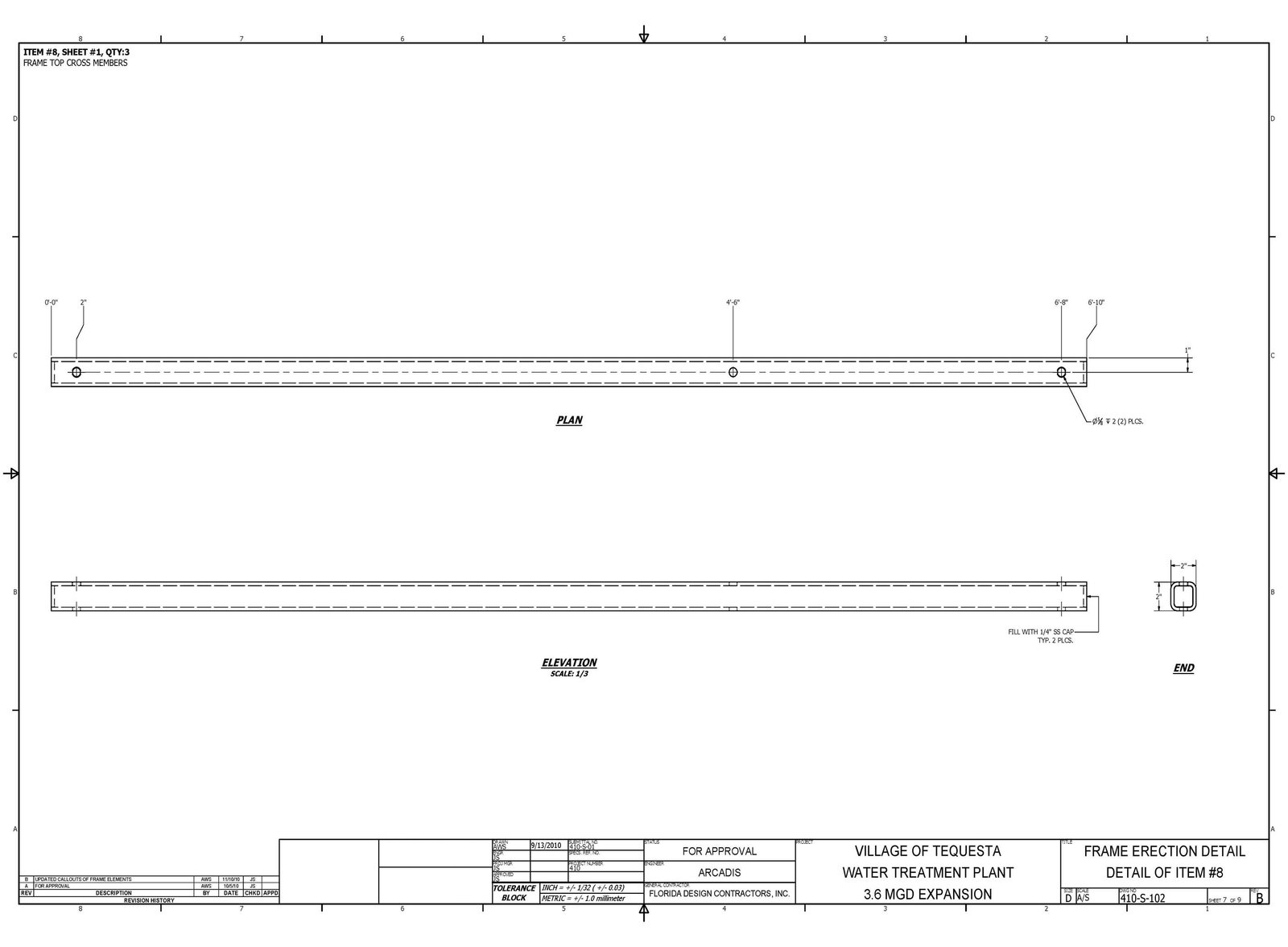

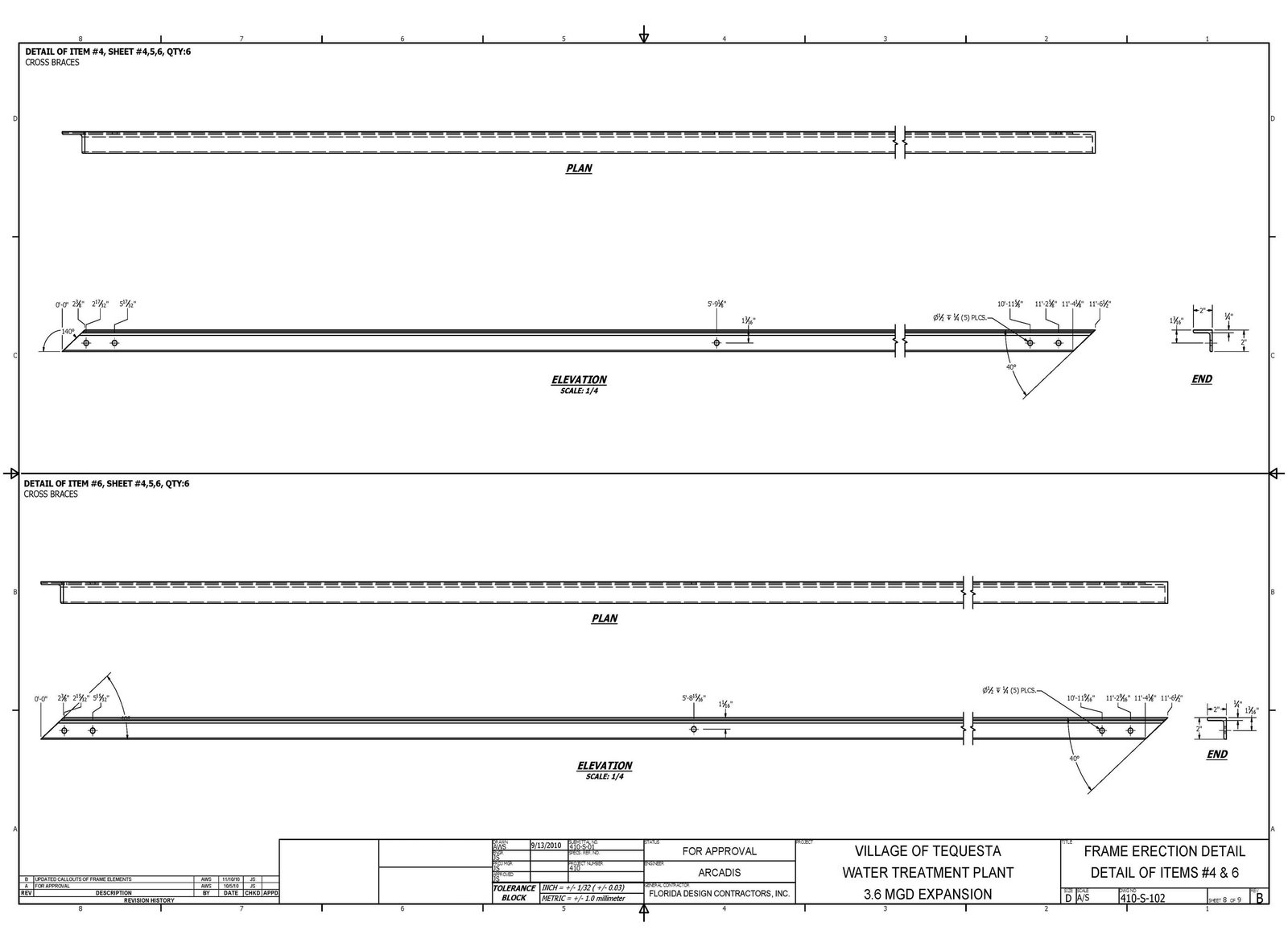

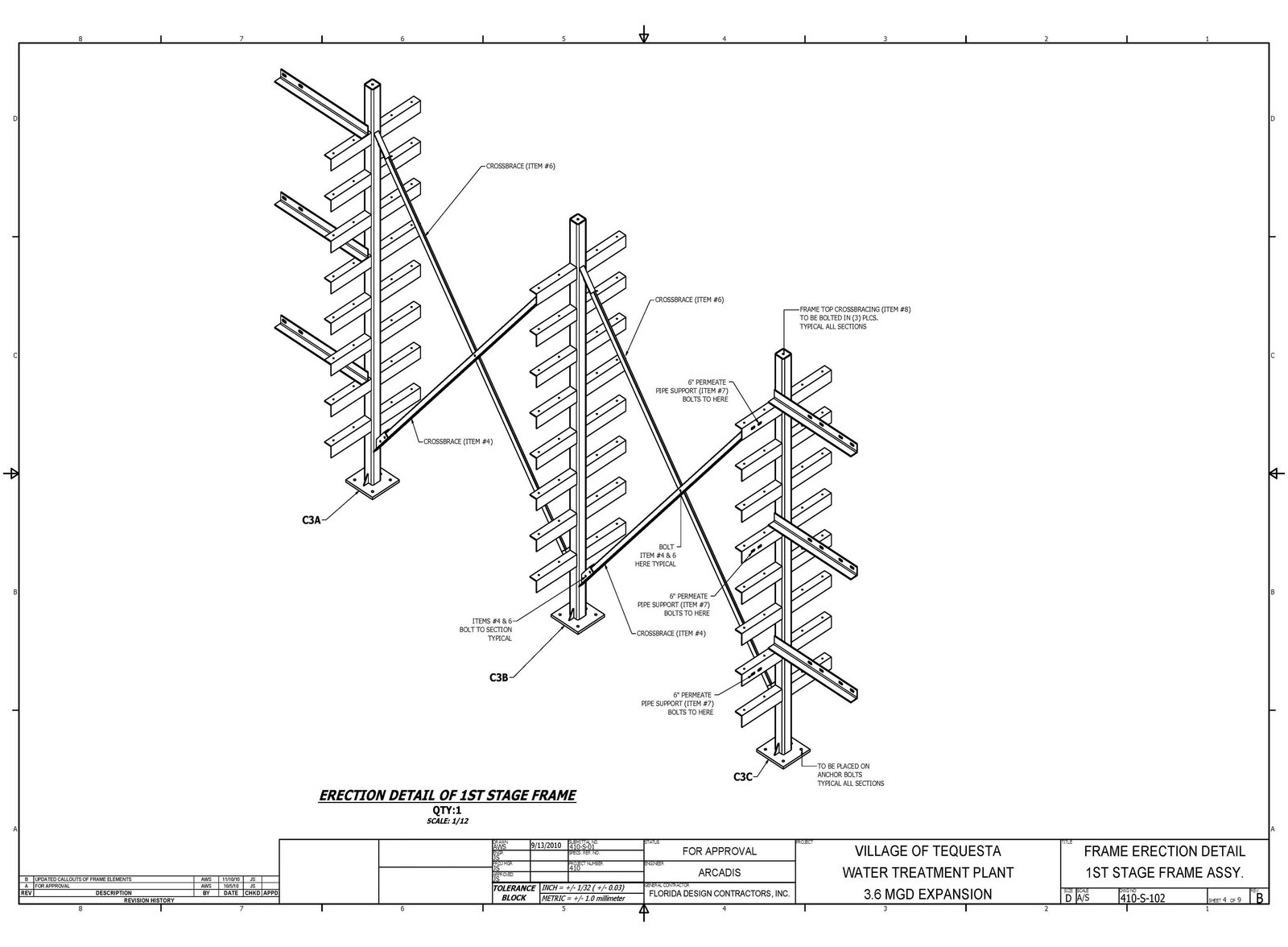

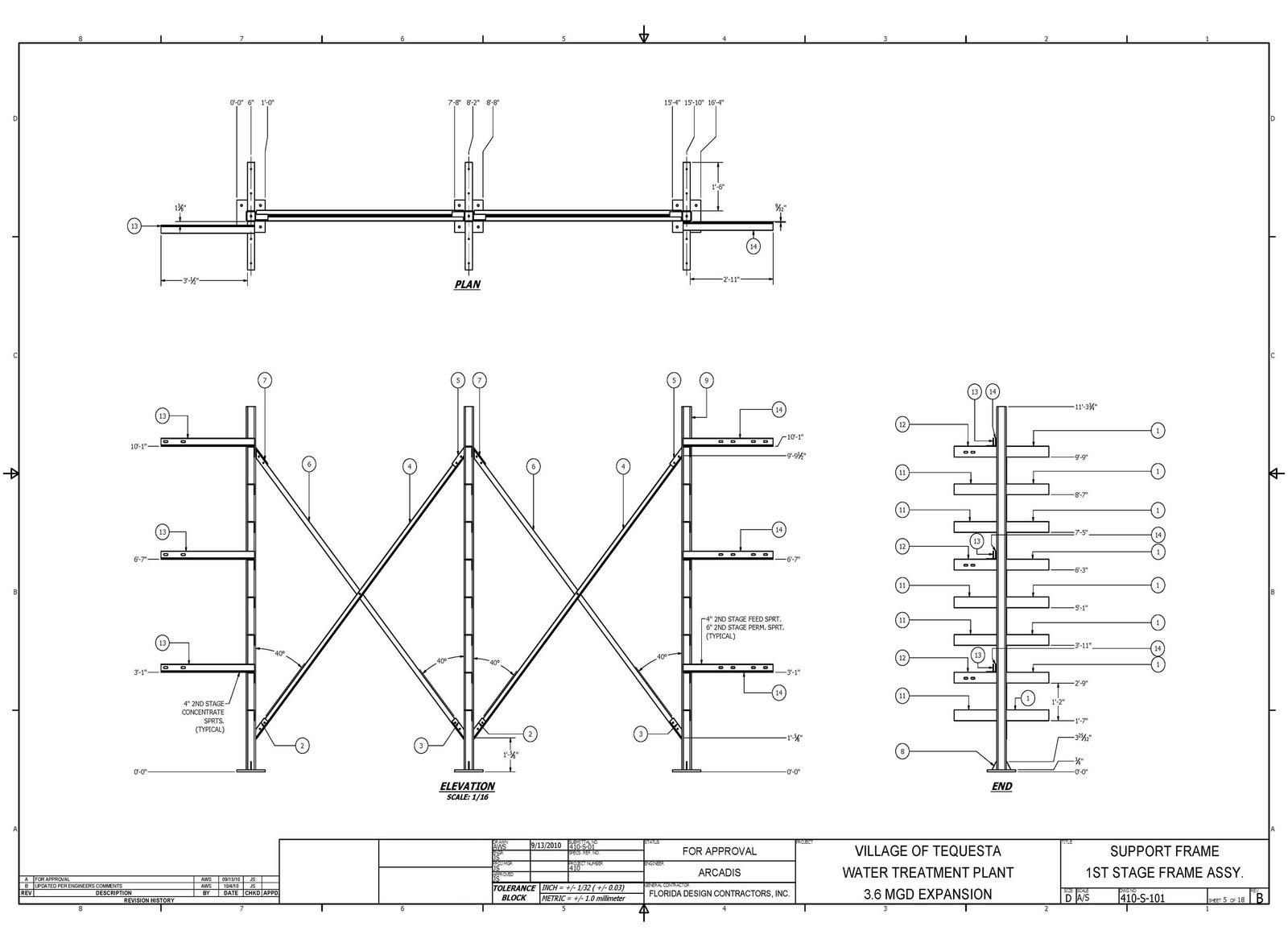

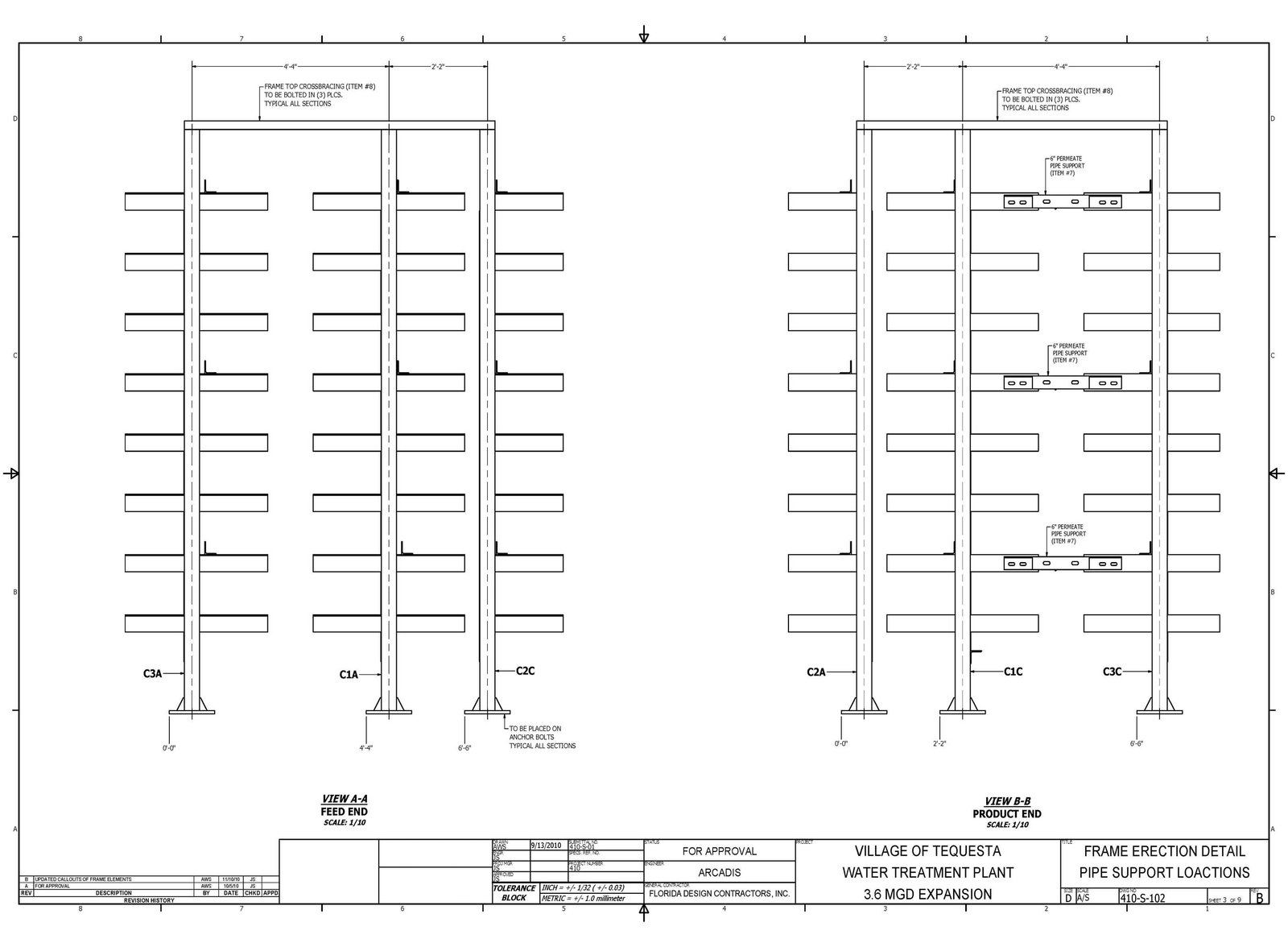

The frame detail drawings document the structural framing assemblies, connection details, and dimensional specifications for the Tequesta Municipal facility. These 26 sheets provide the fabrication references for all structural frame components ensuring precise fit-up and alignment during installation.

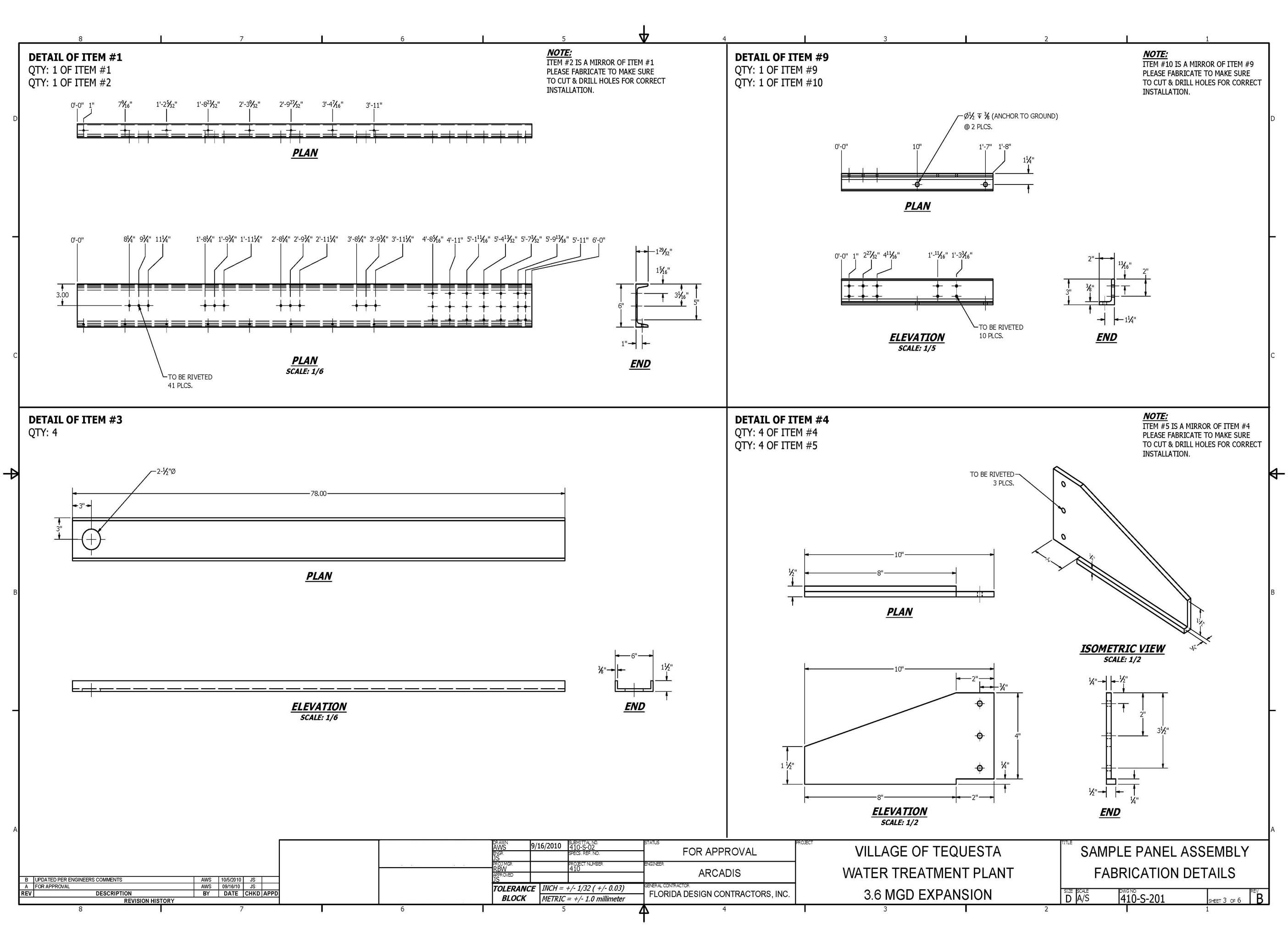

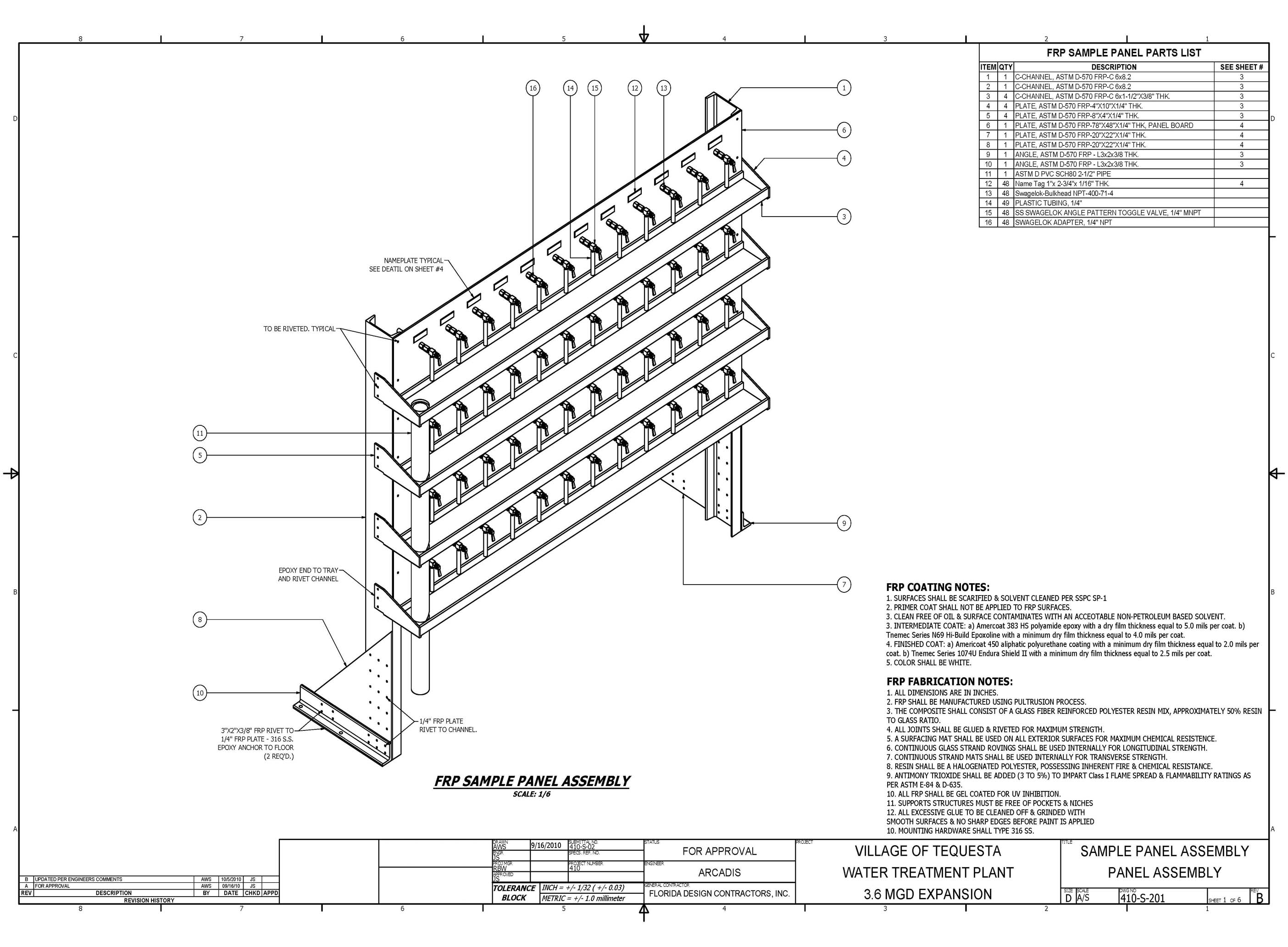

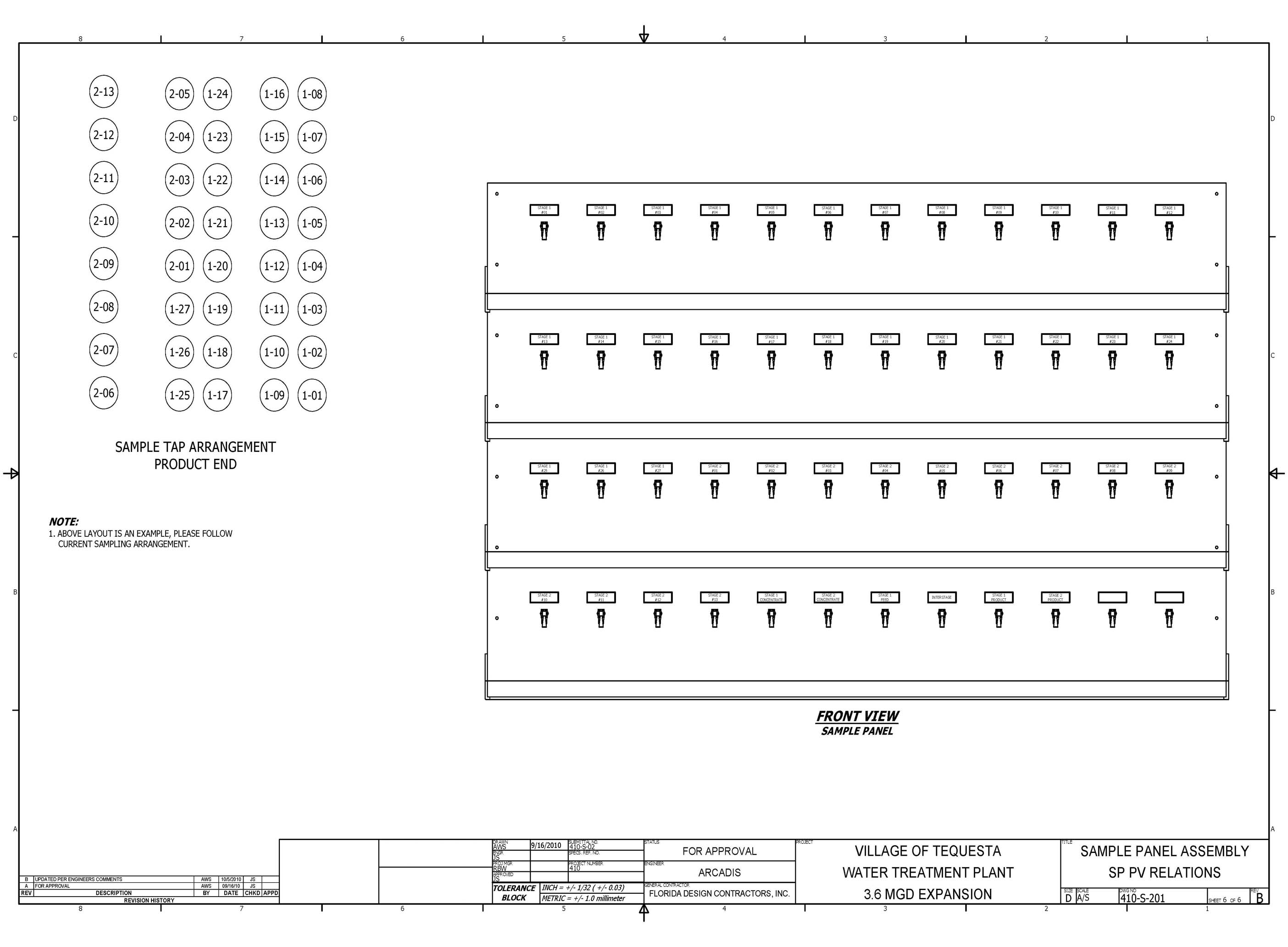

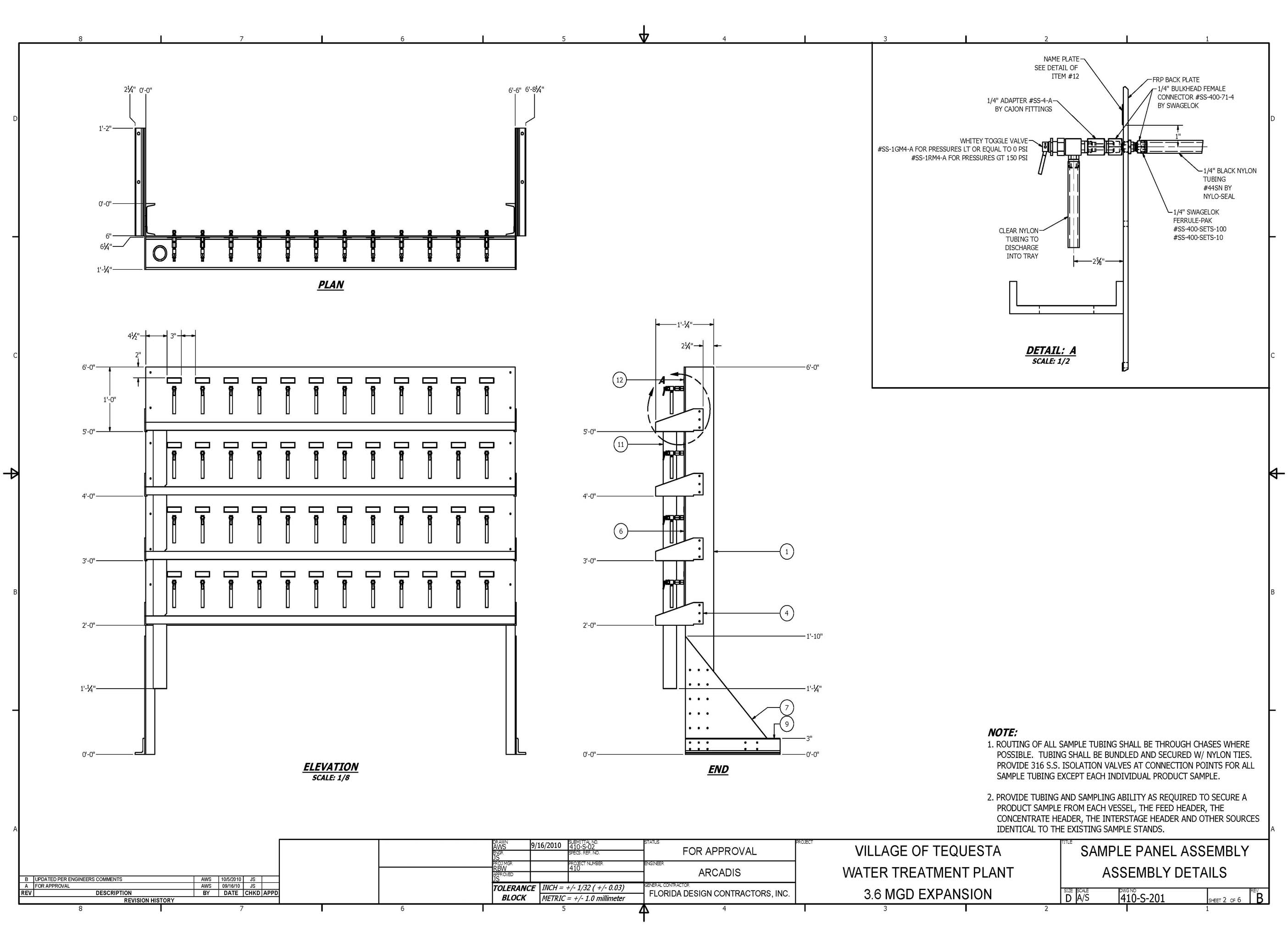

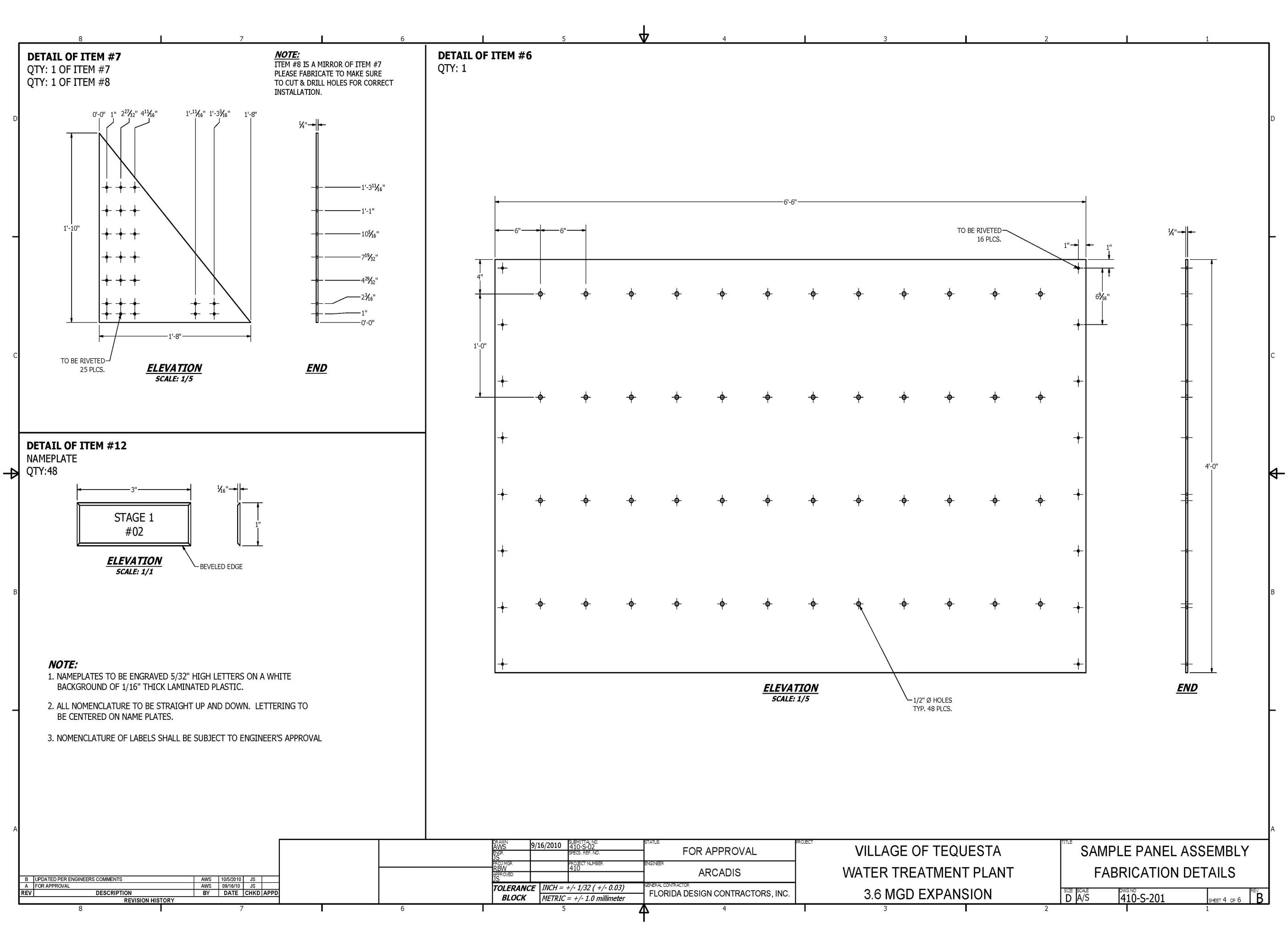

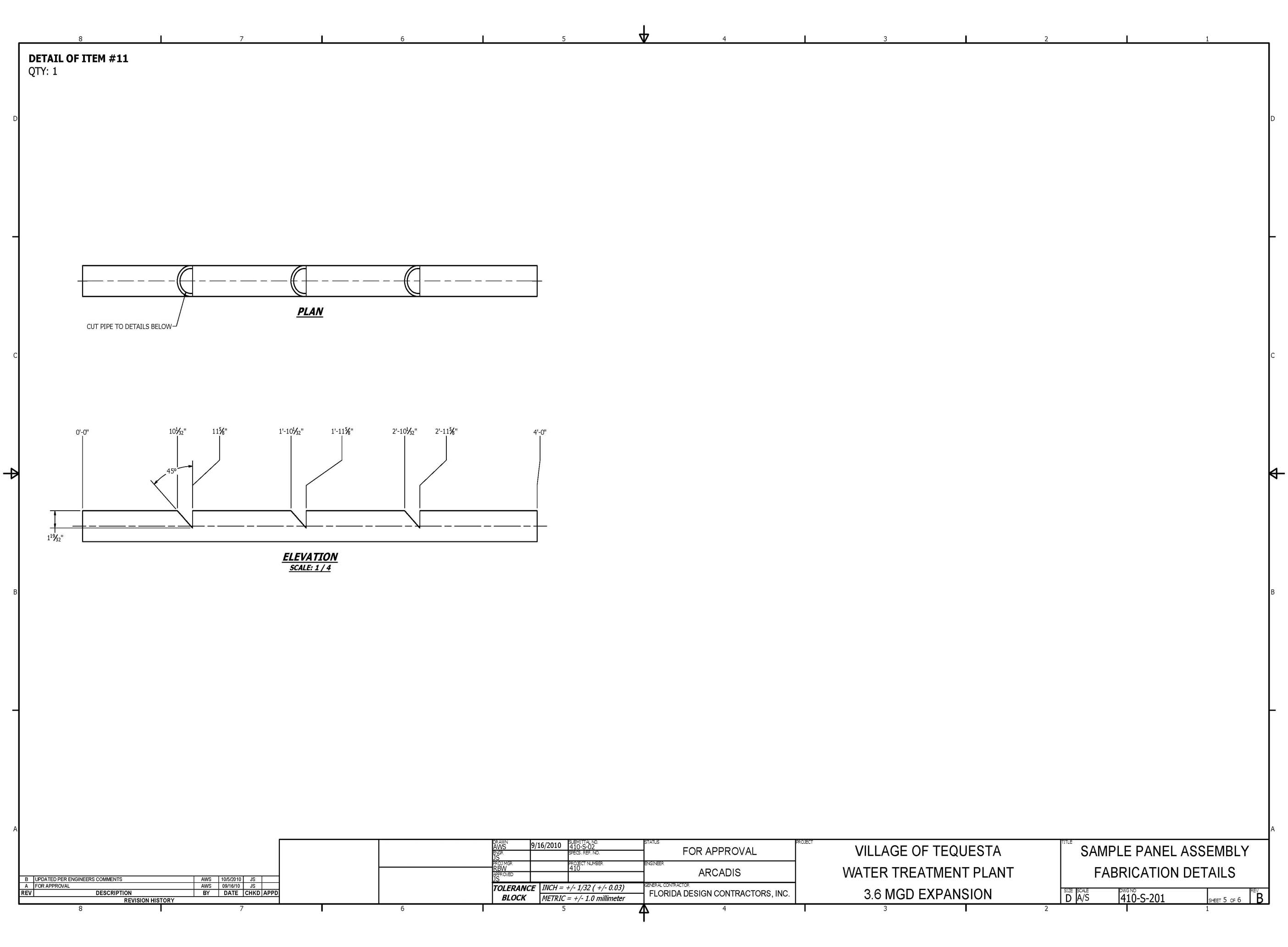

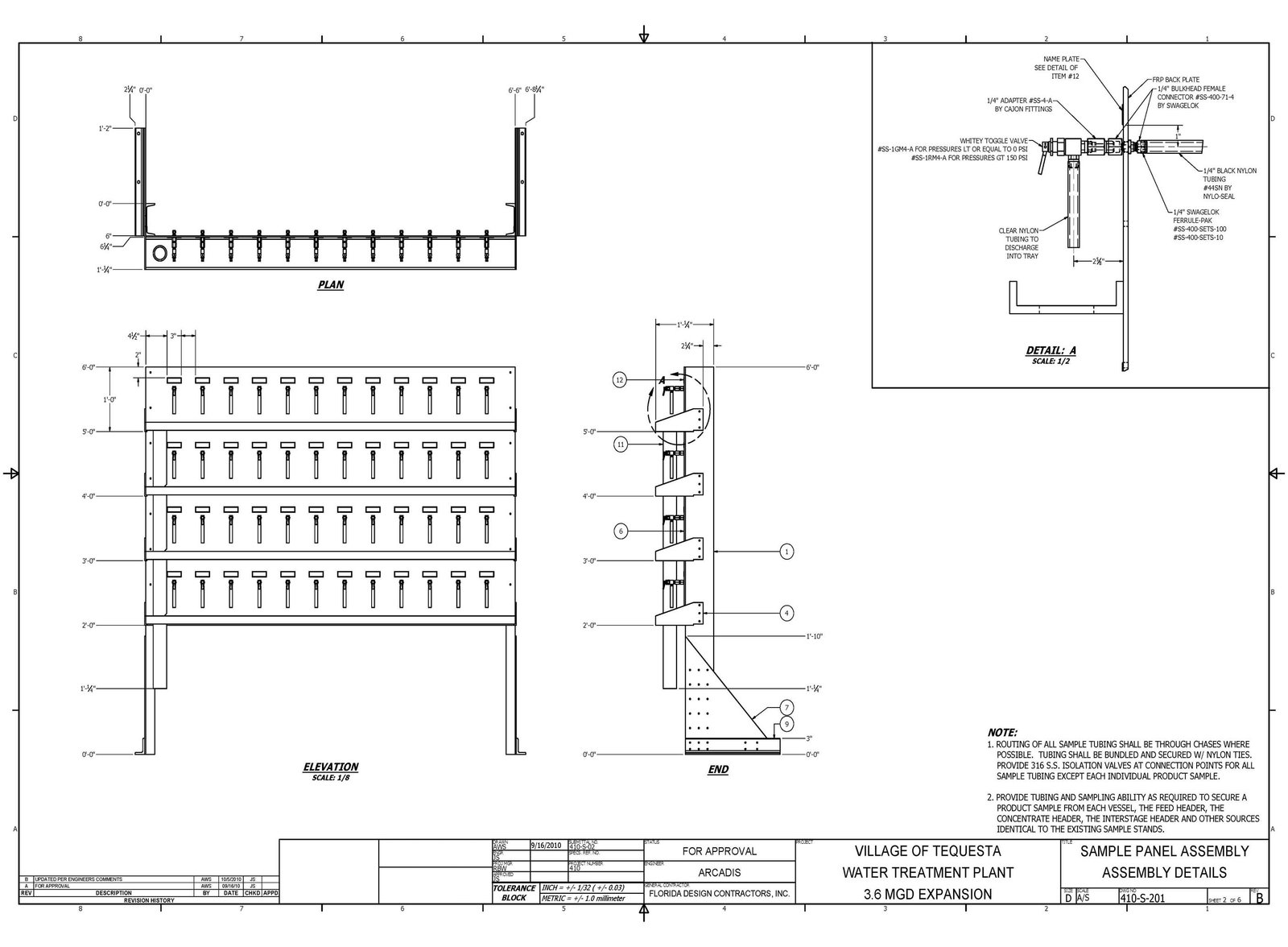

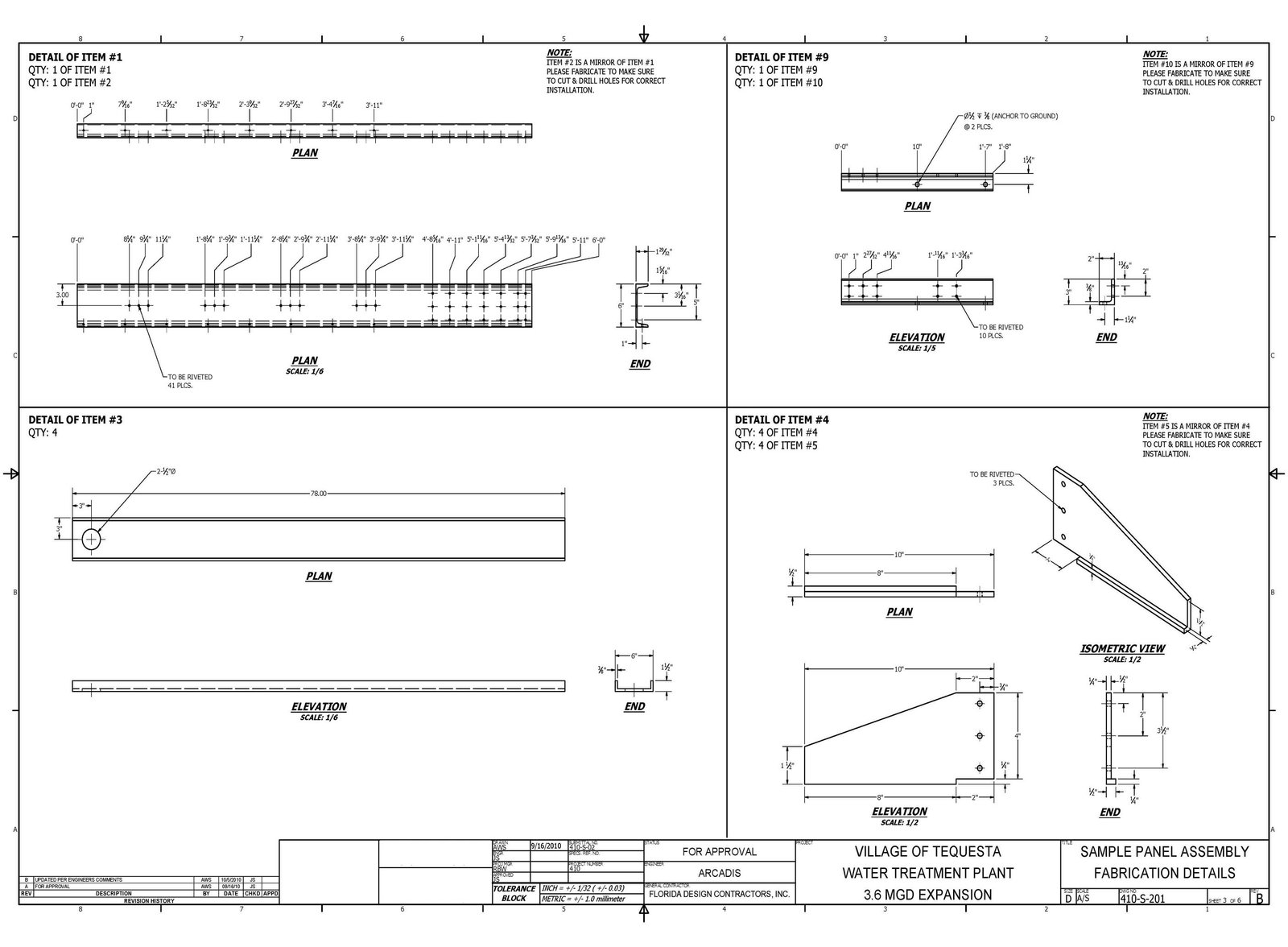

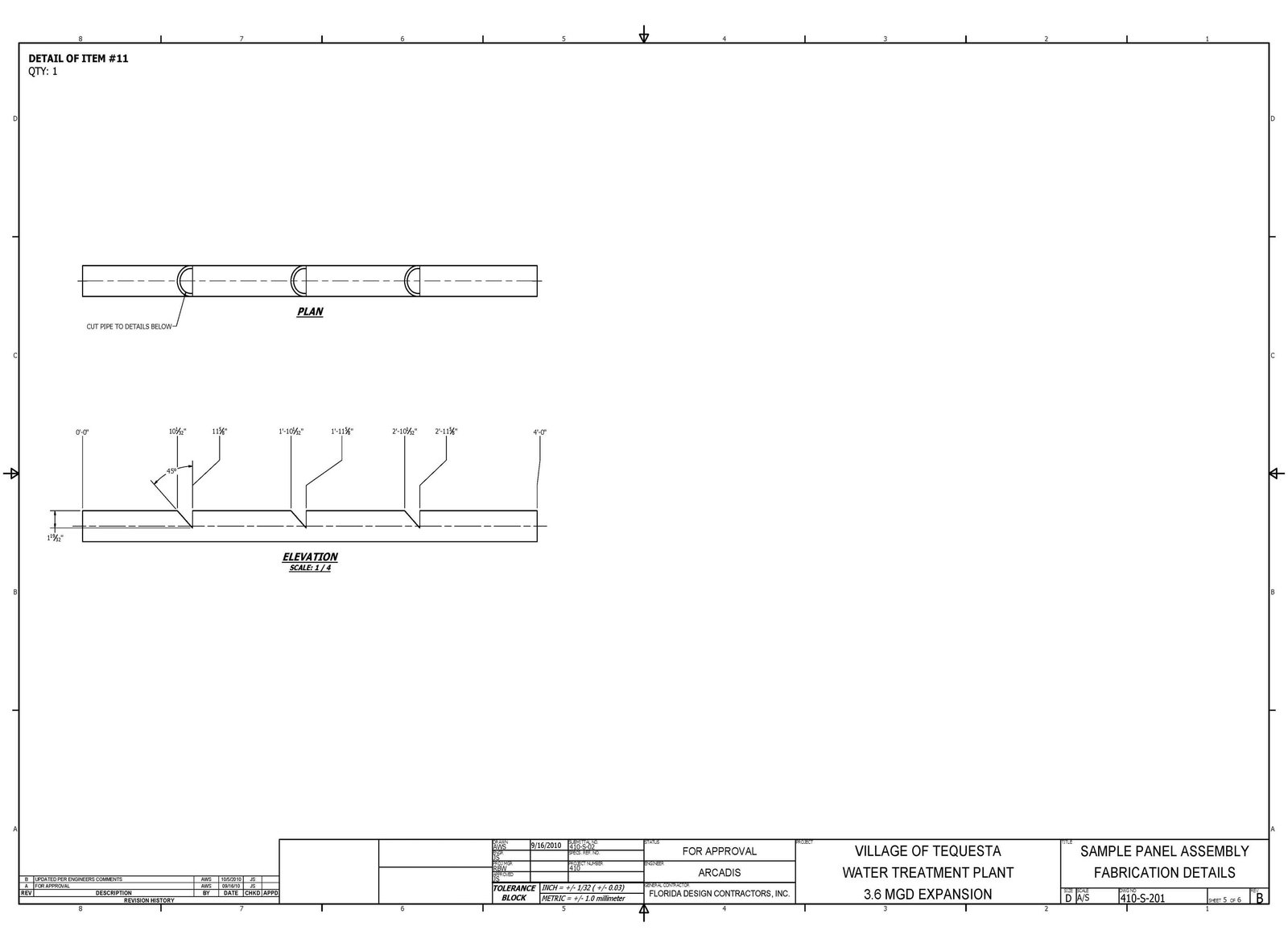

The sample panel detail drawings document the instrument placement, sample point configurations, and connection details for the water quality monitoring assemblies at Tequesta. These 6 sheets define the sample tap locations and flow paths required for accurate process monitoring throughout the treatment system.

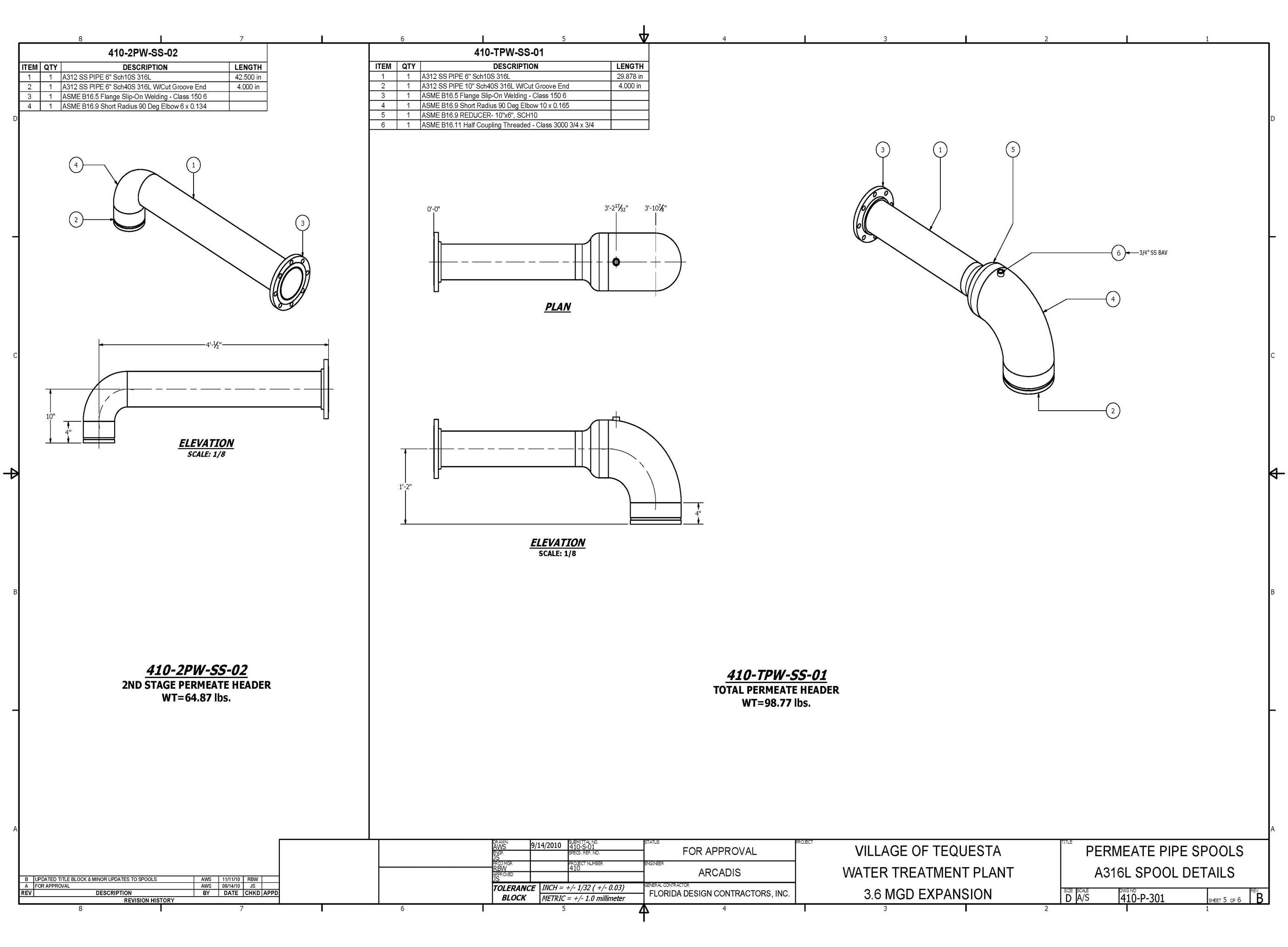

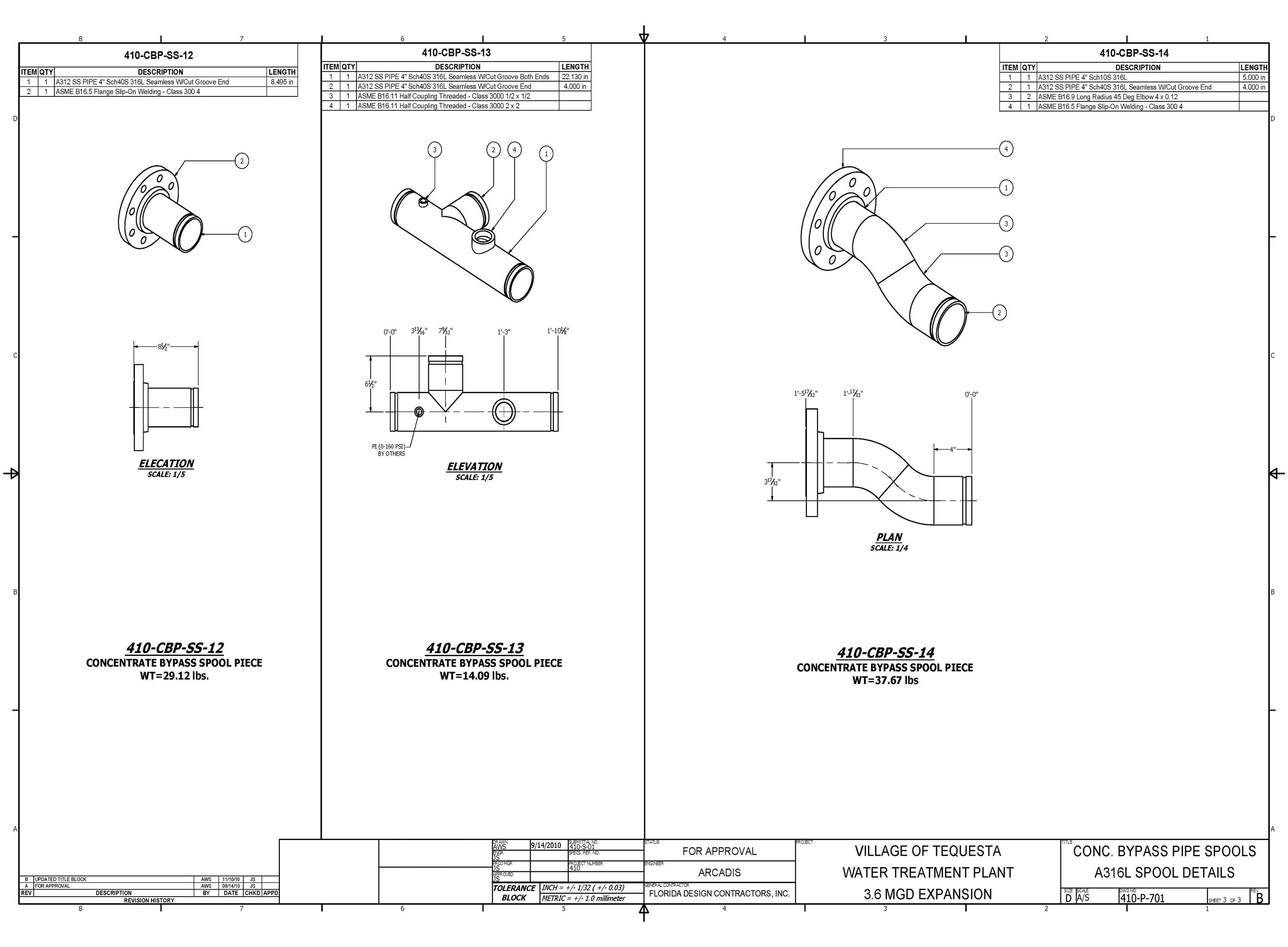

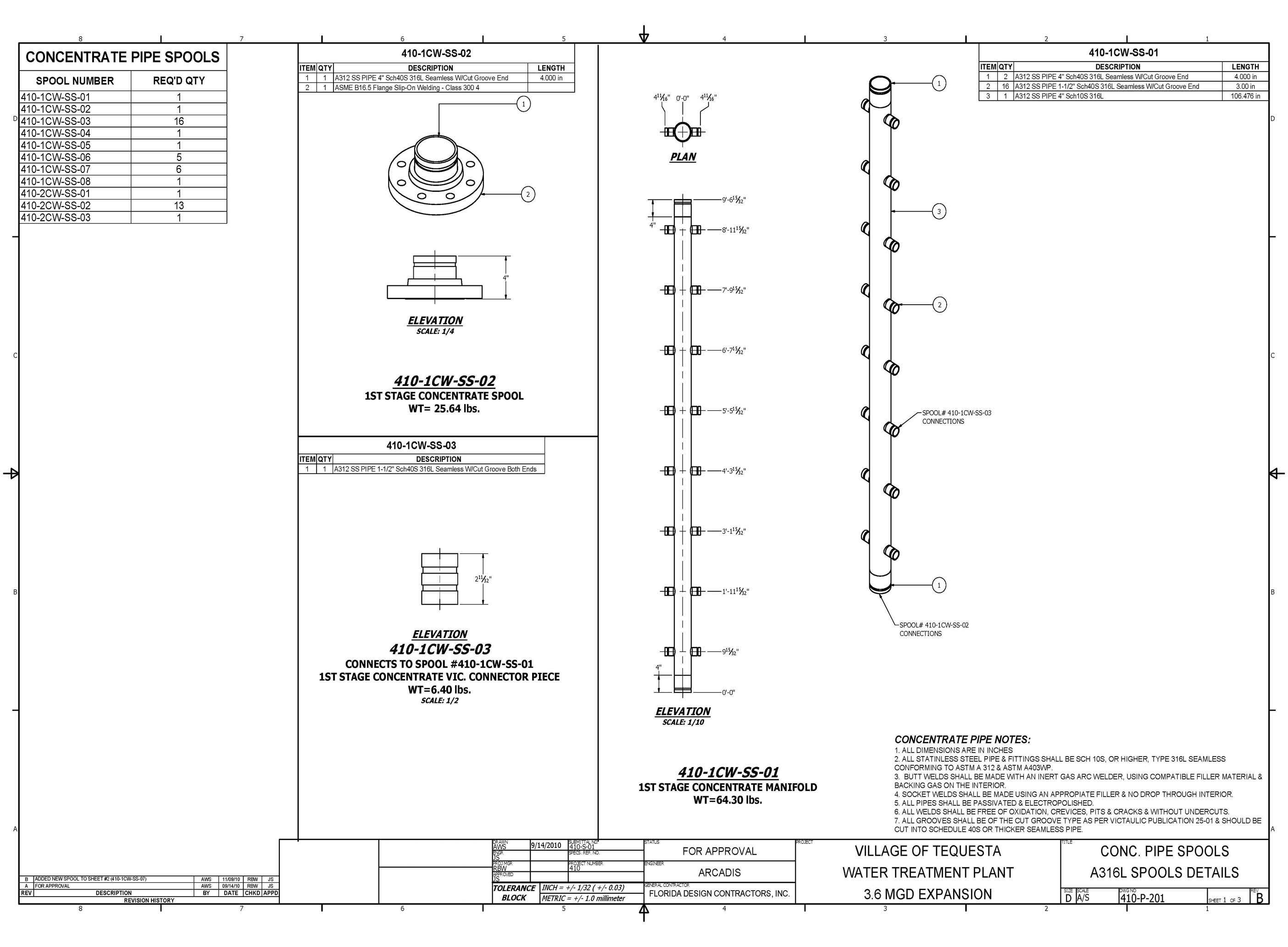

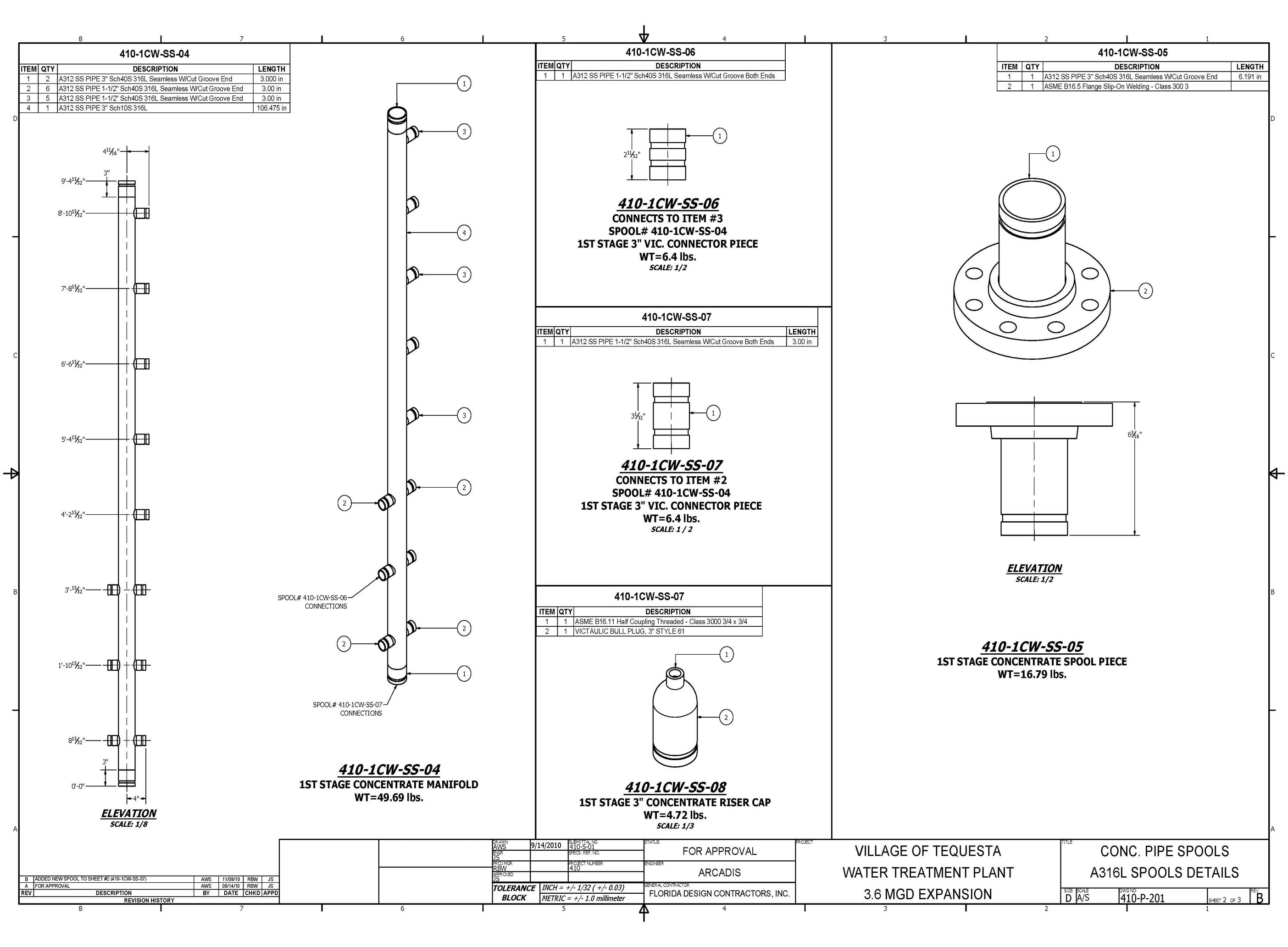

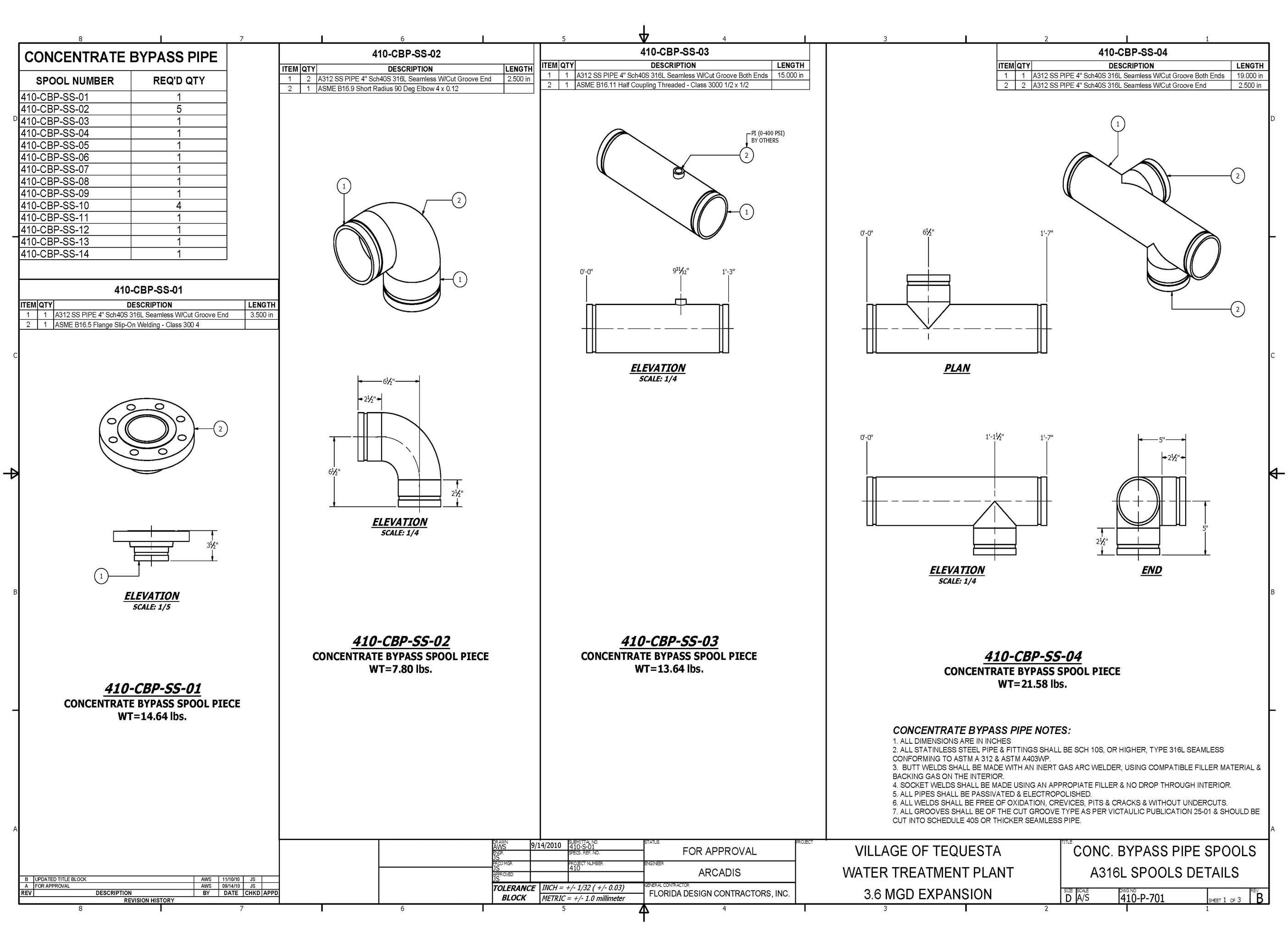

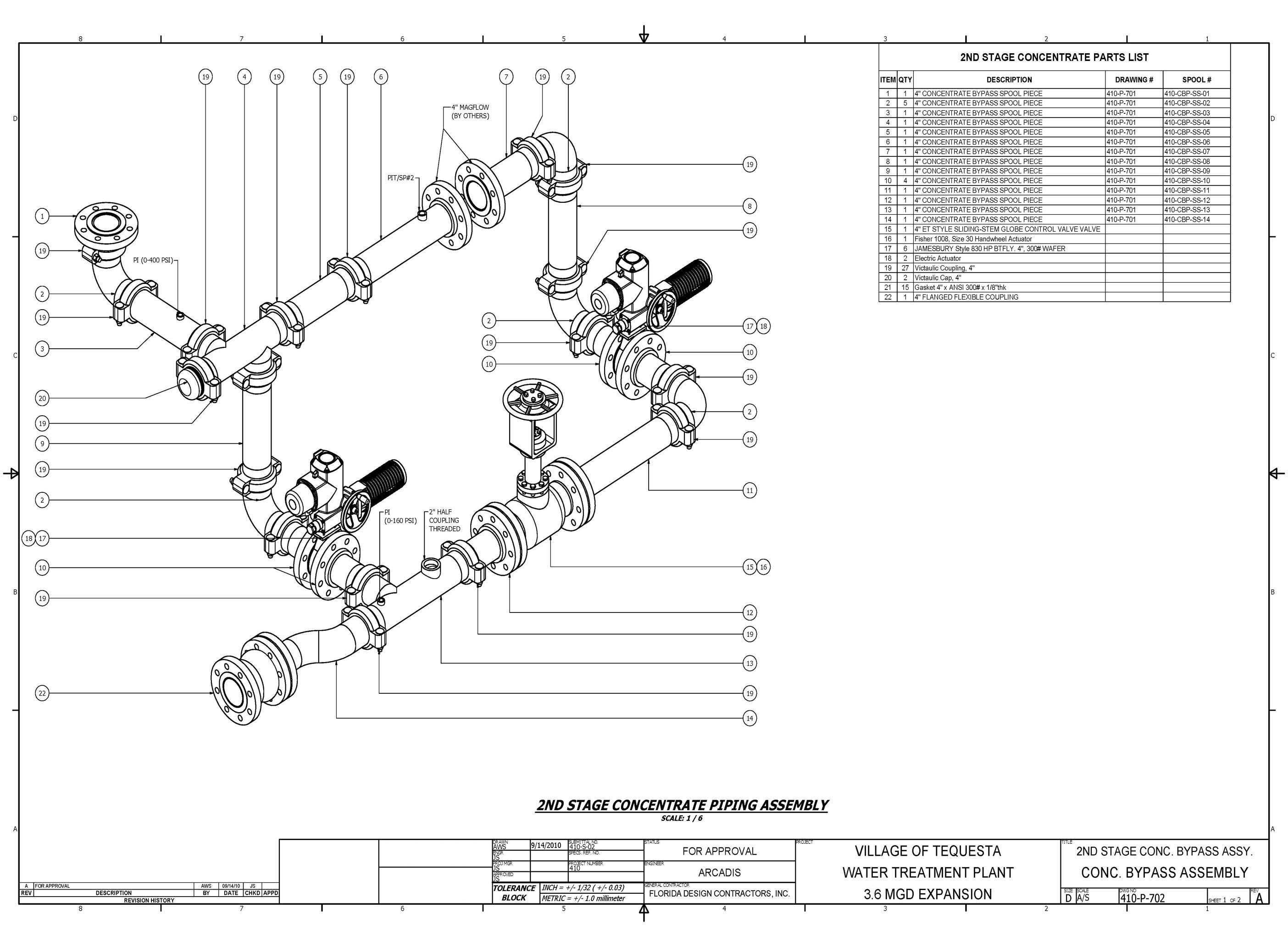

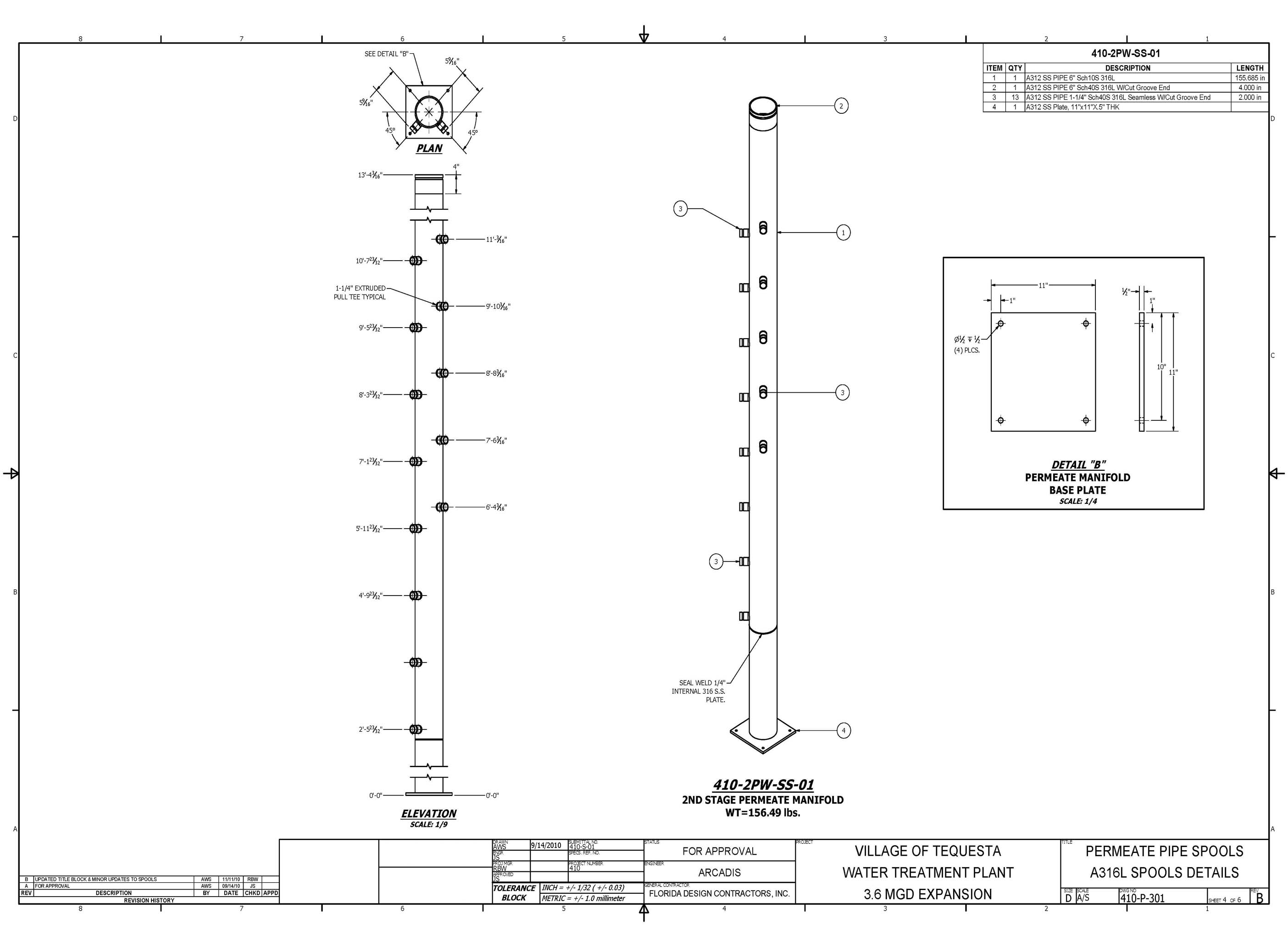

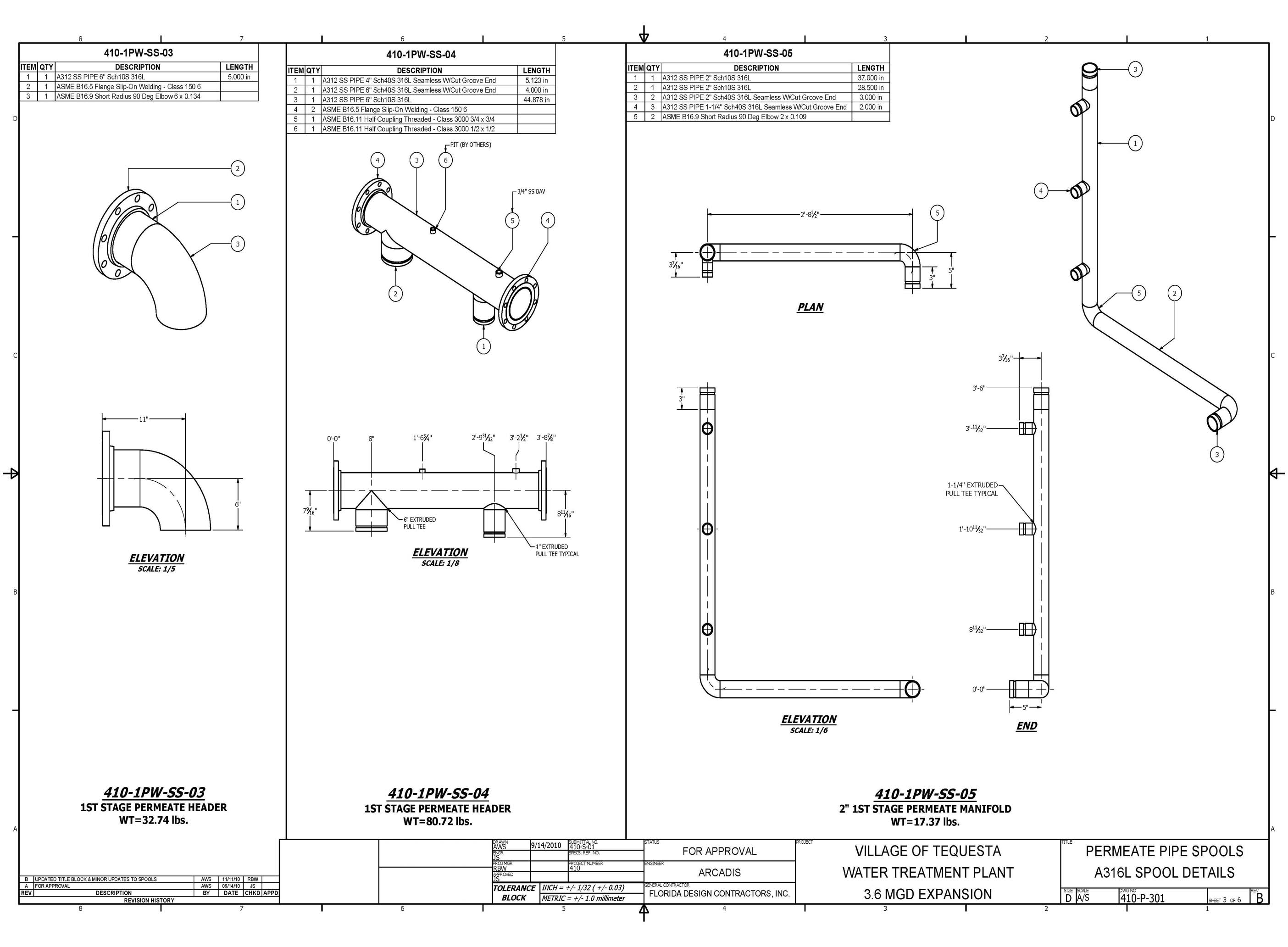

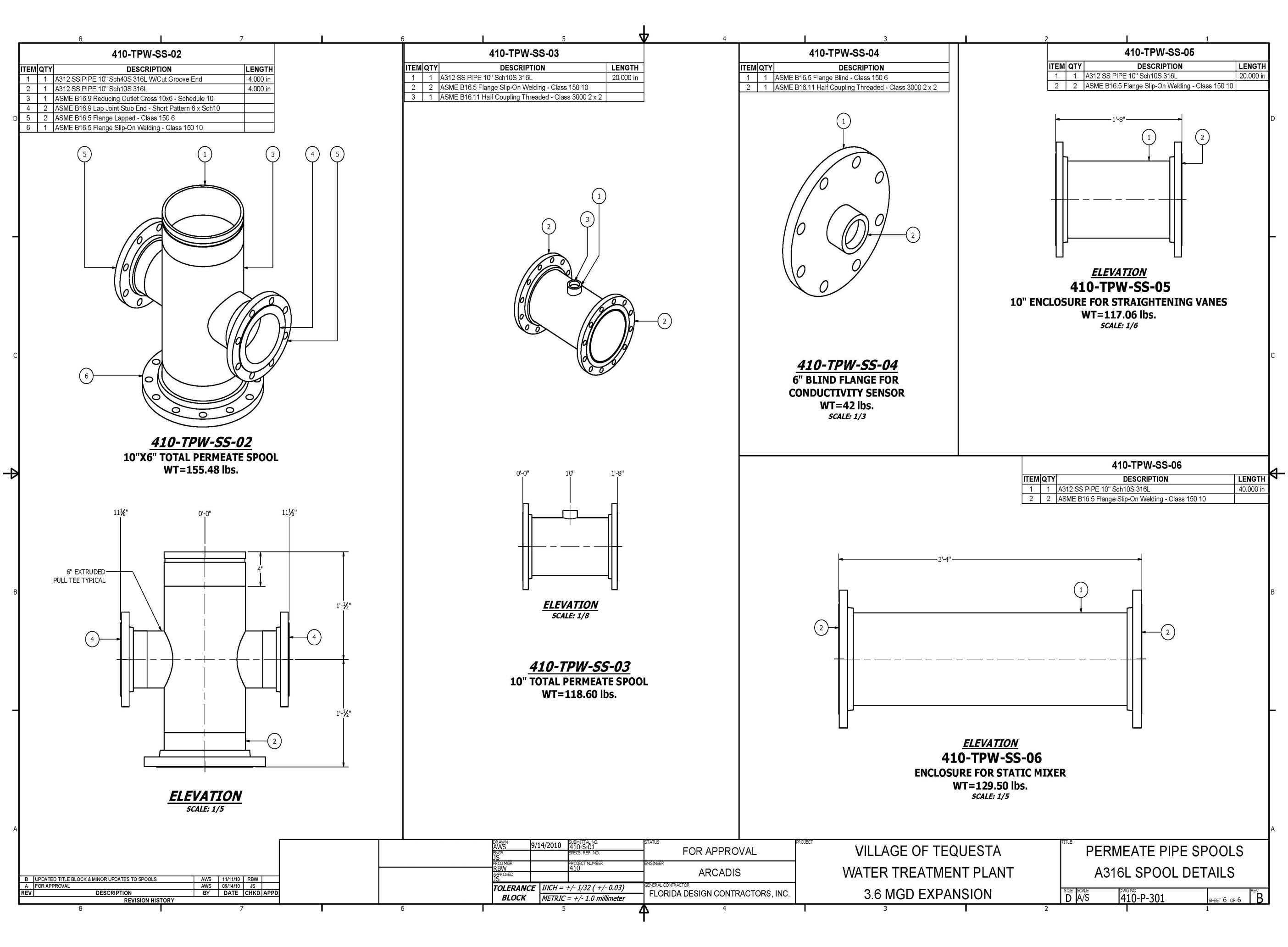

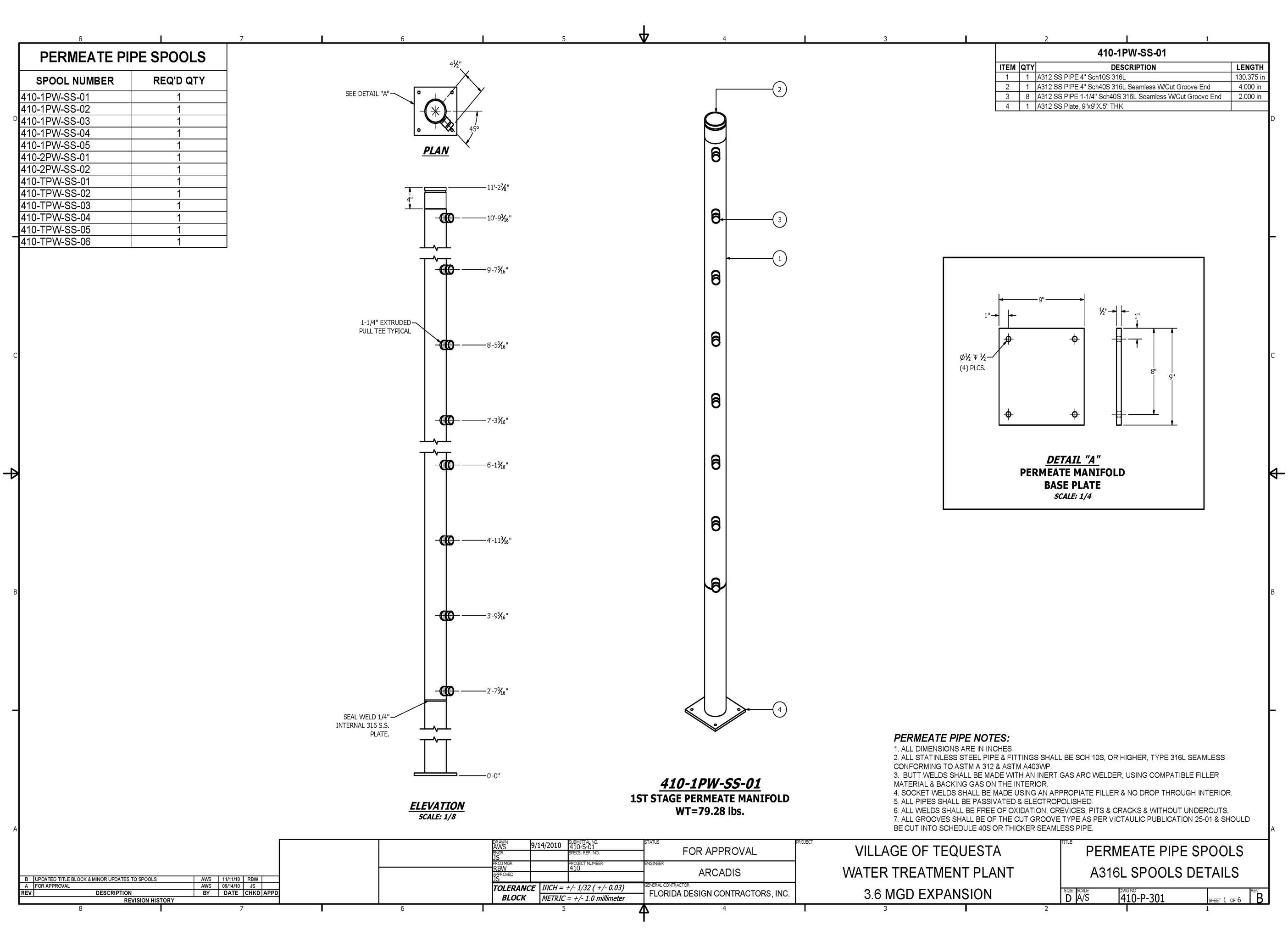

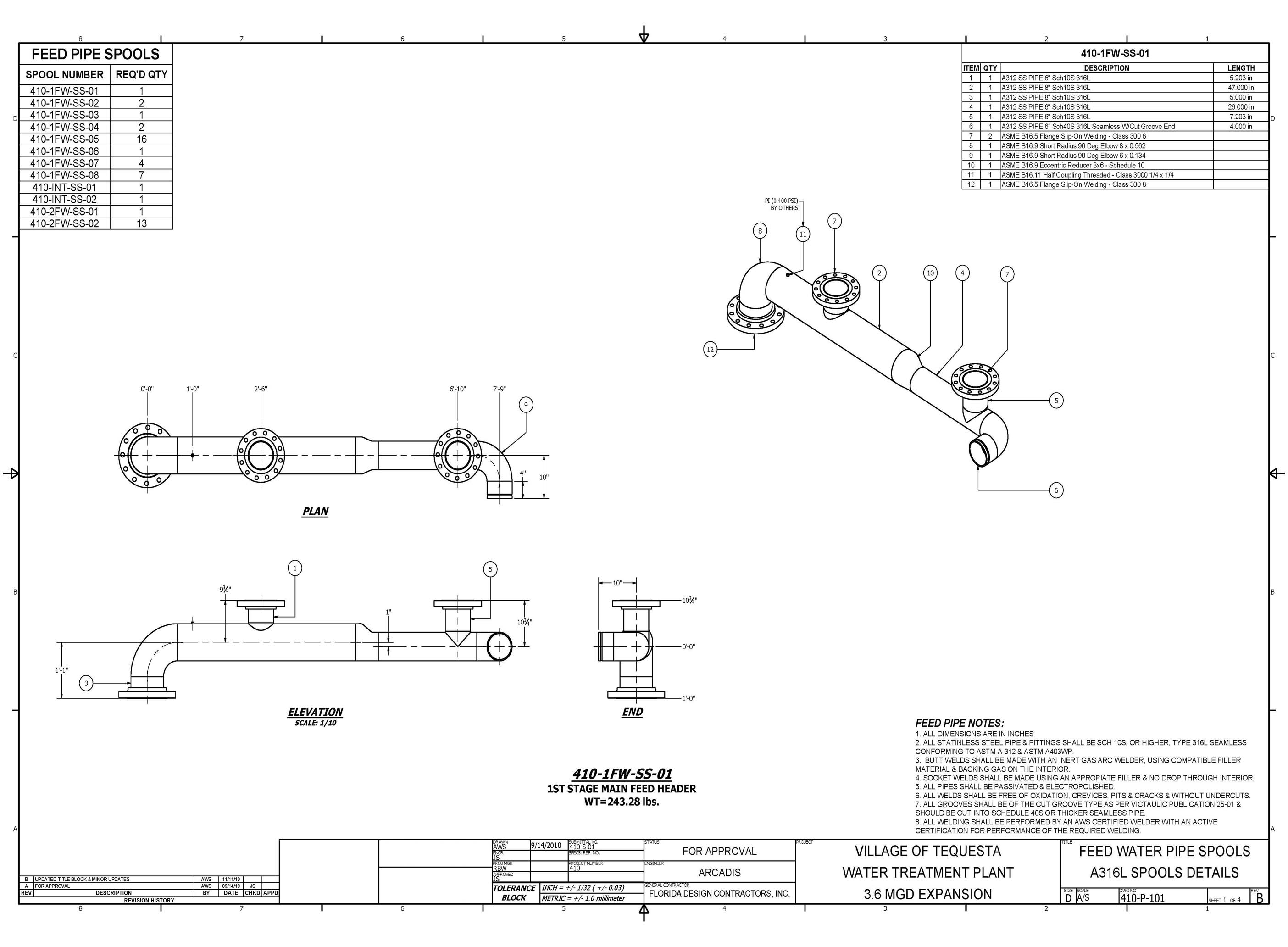

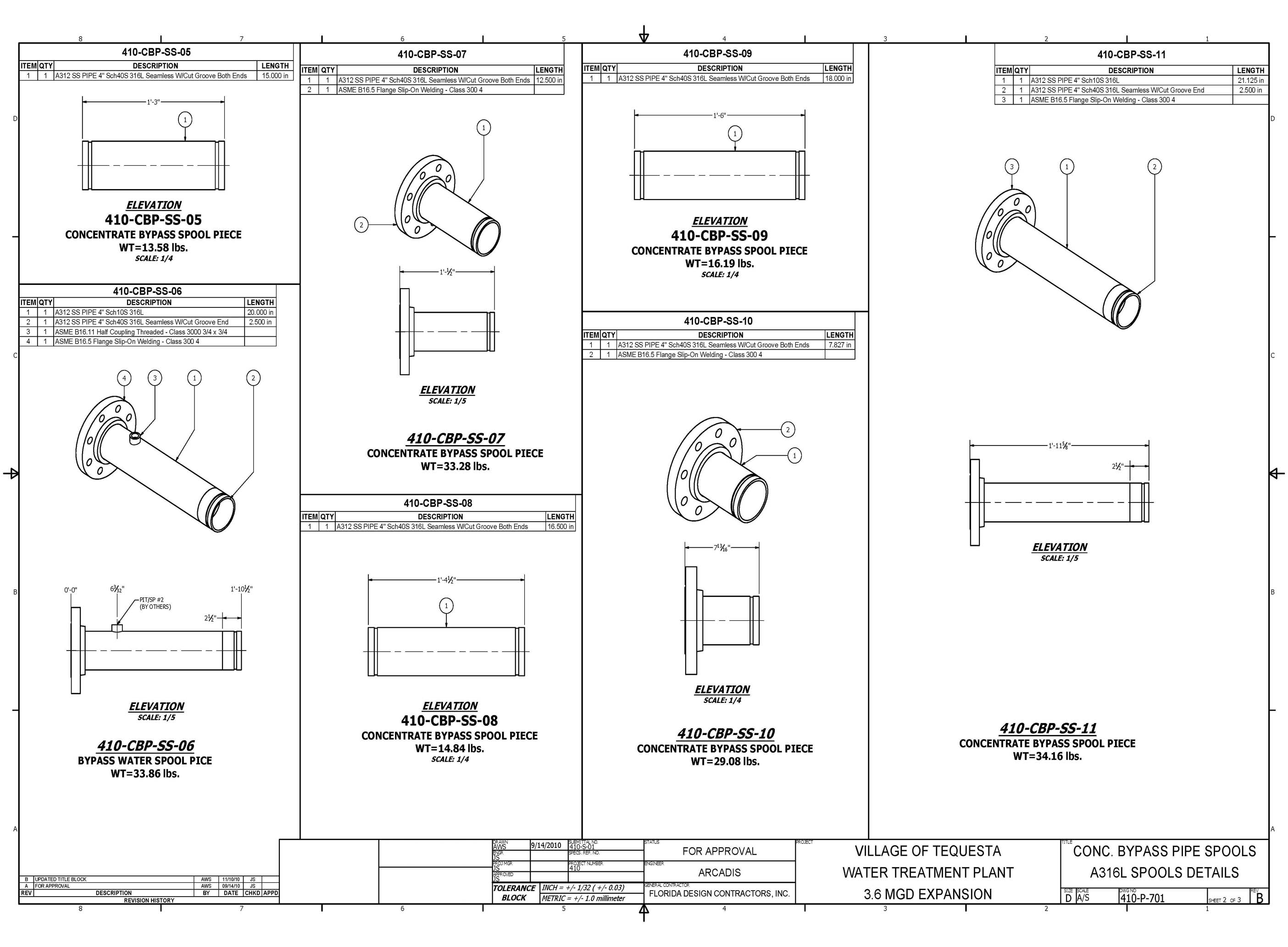

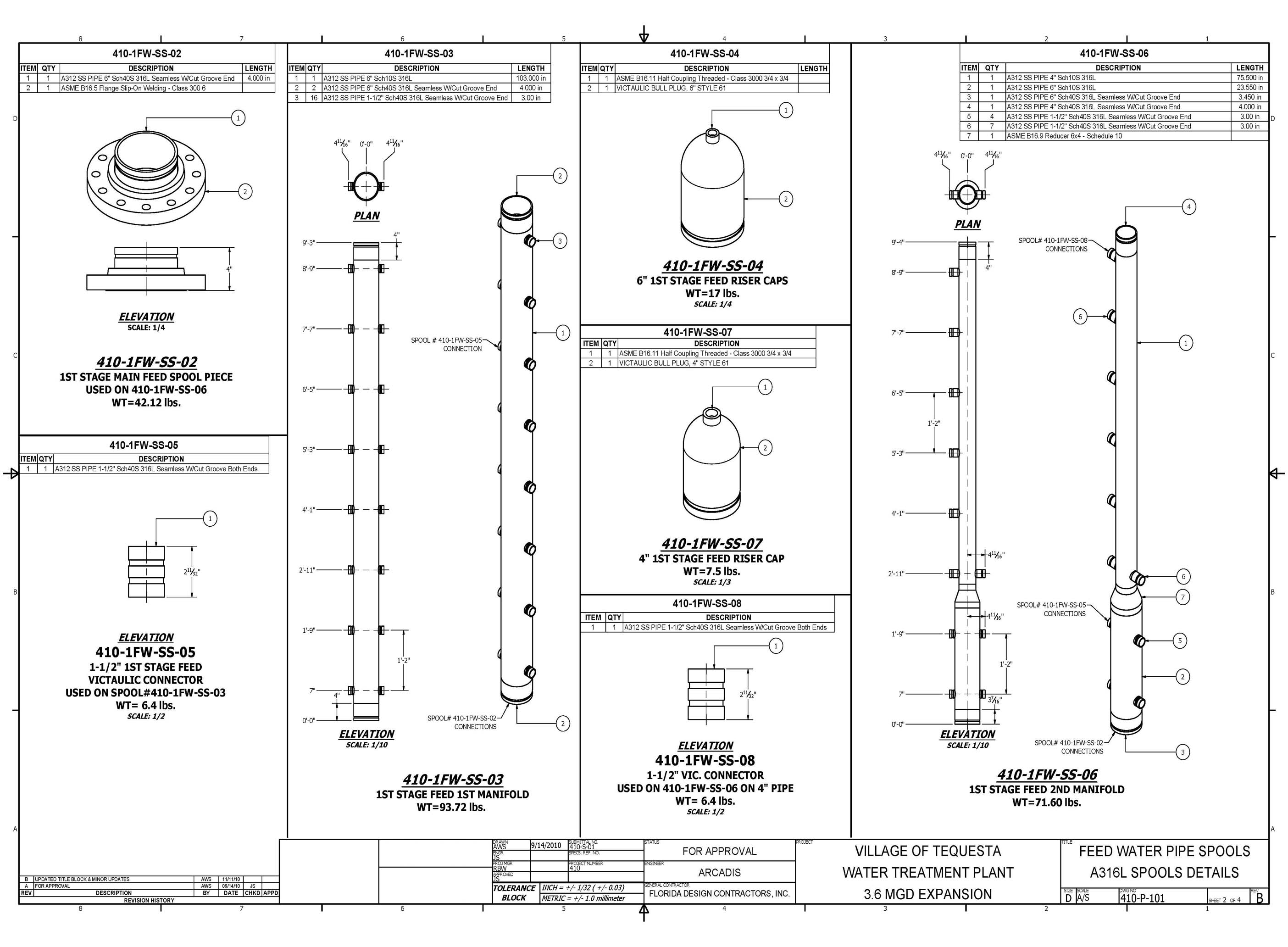

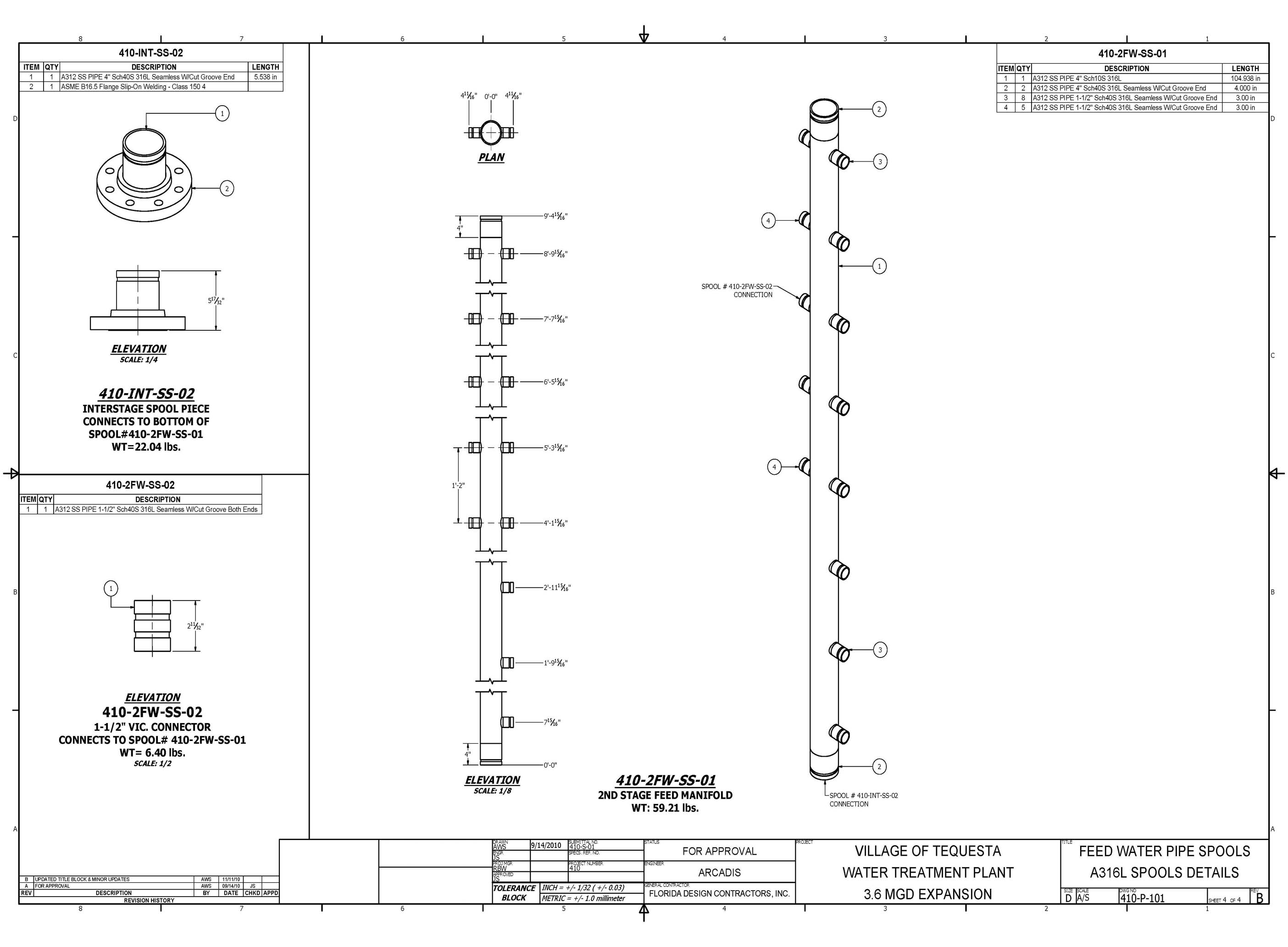

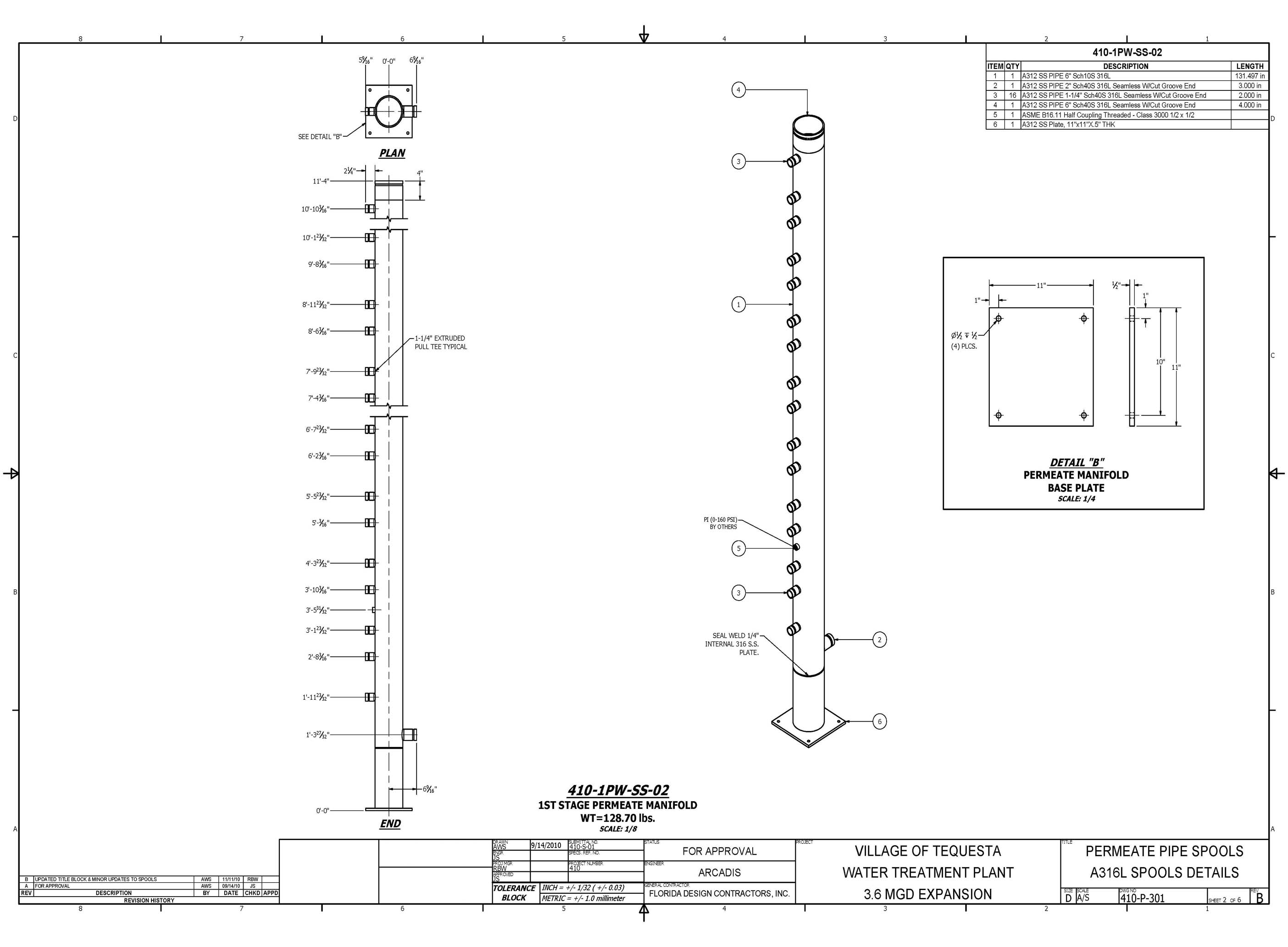

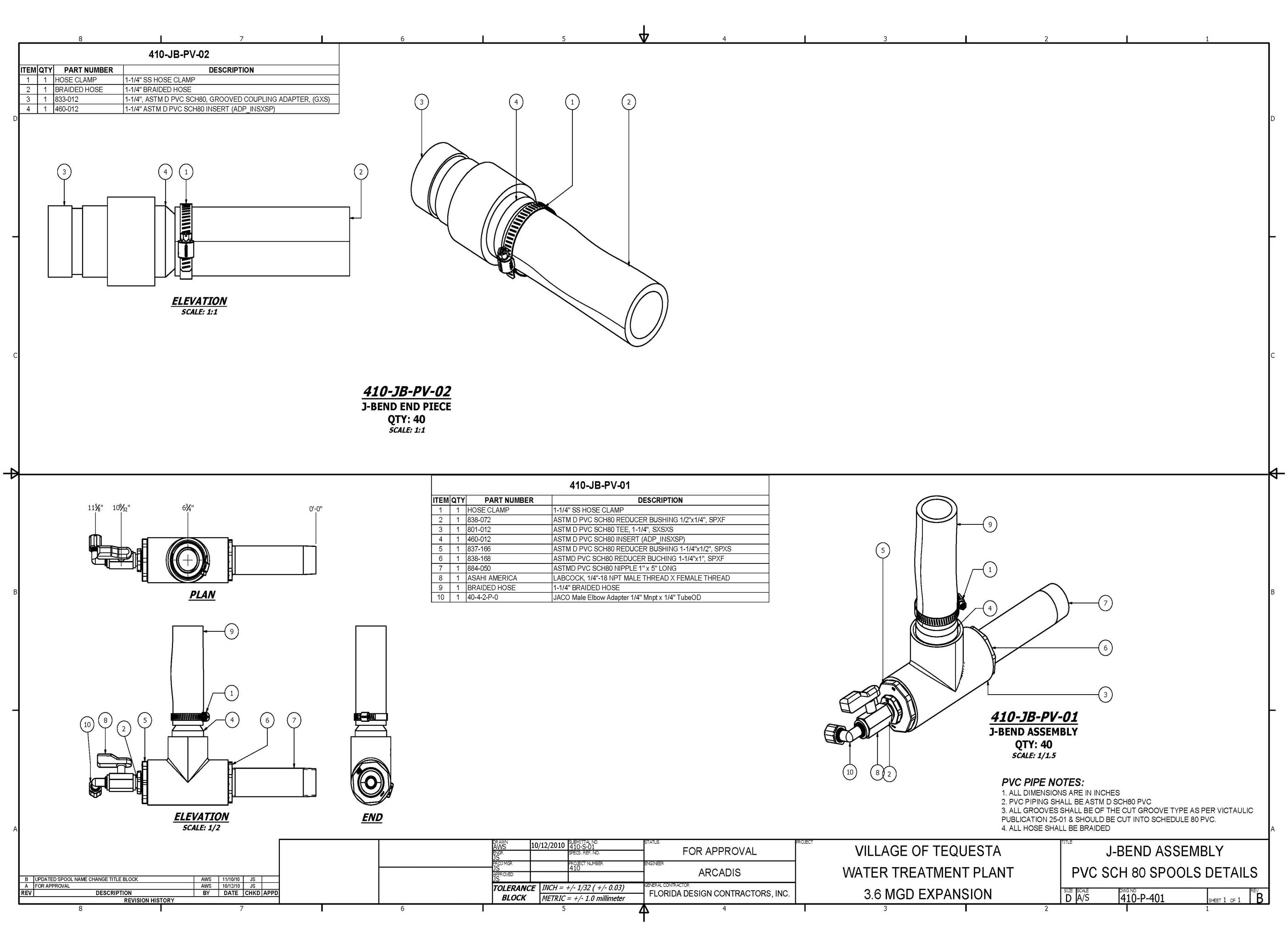

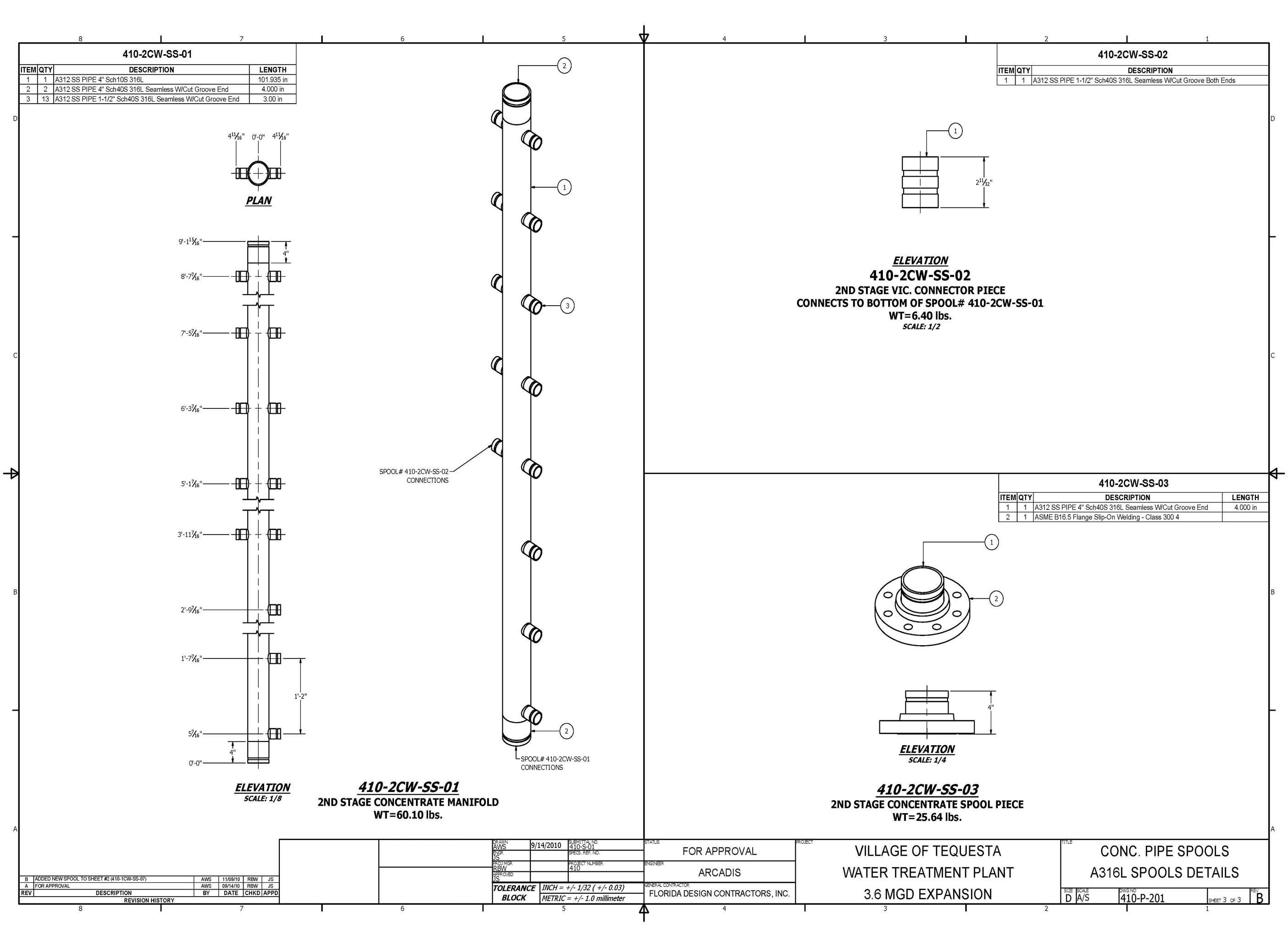

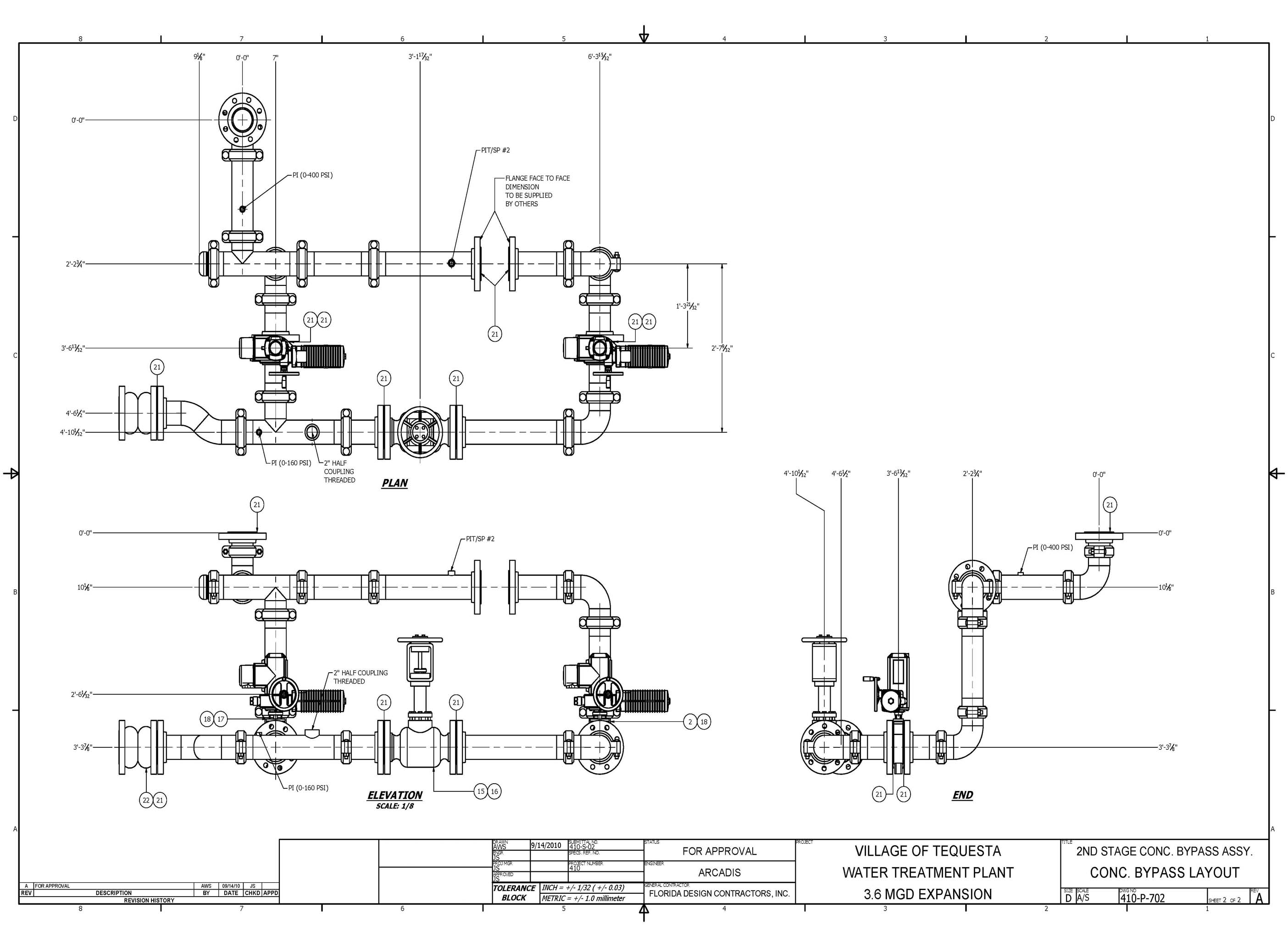

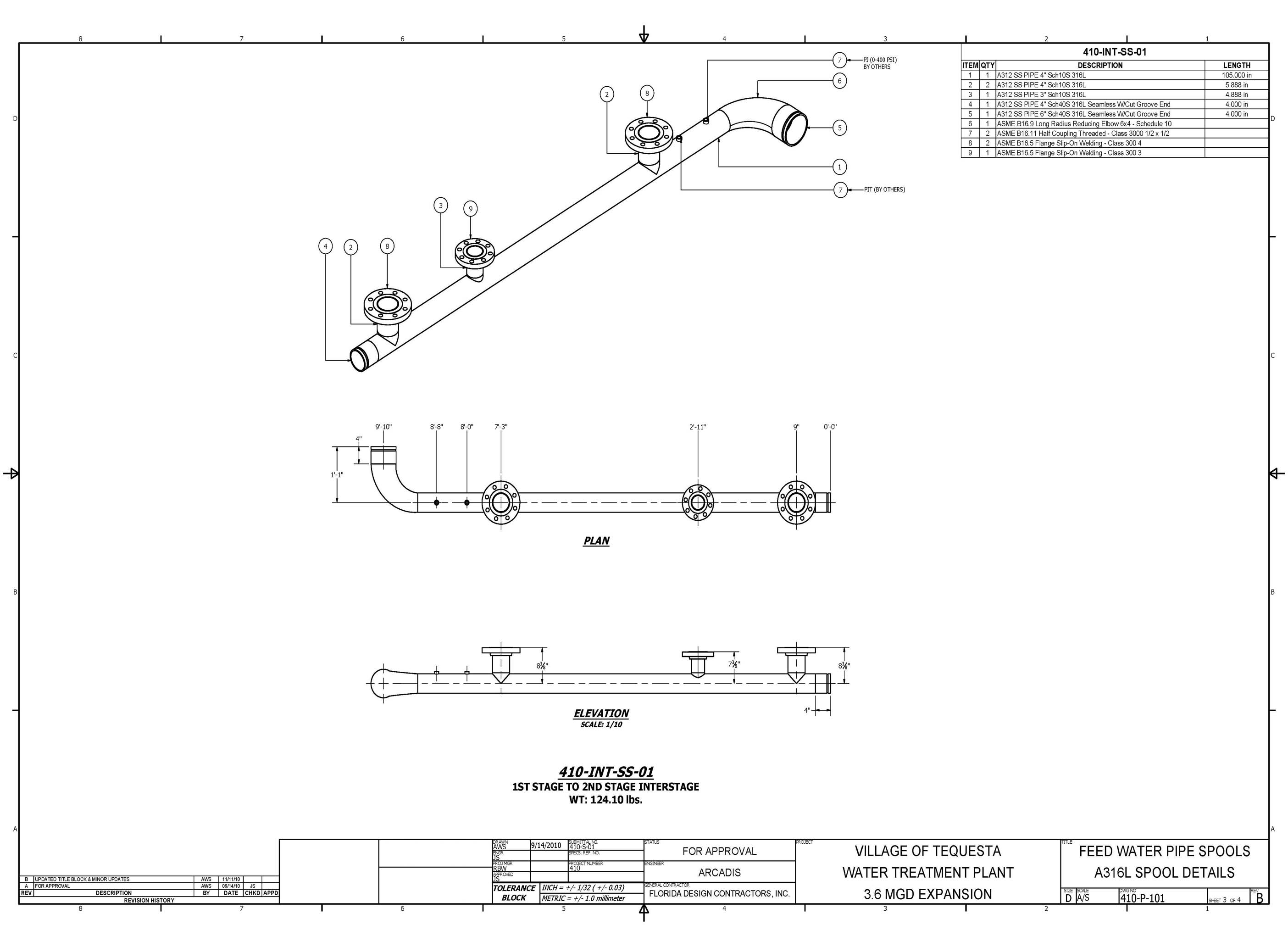

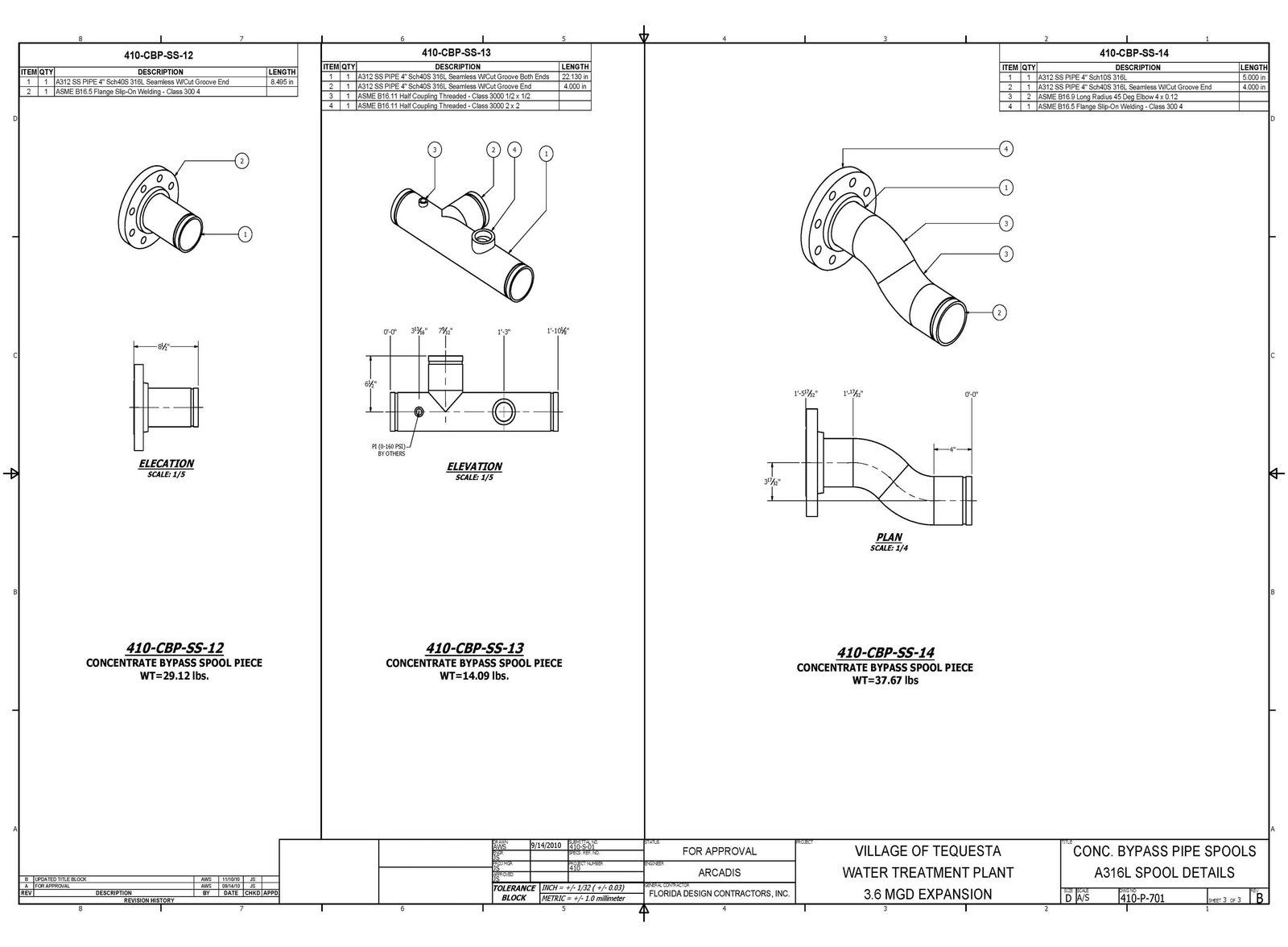

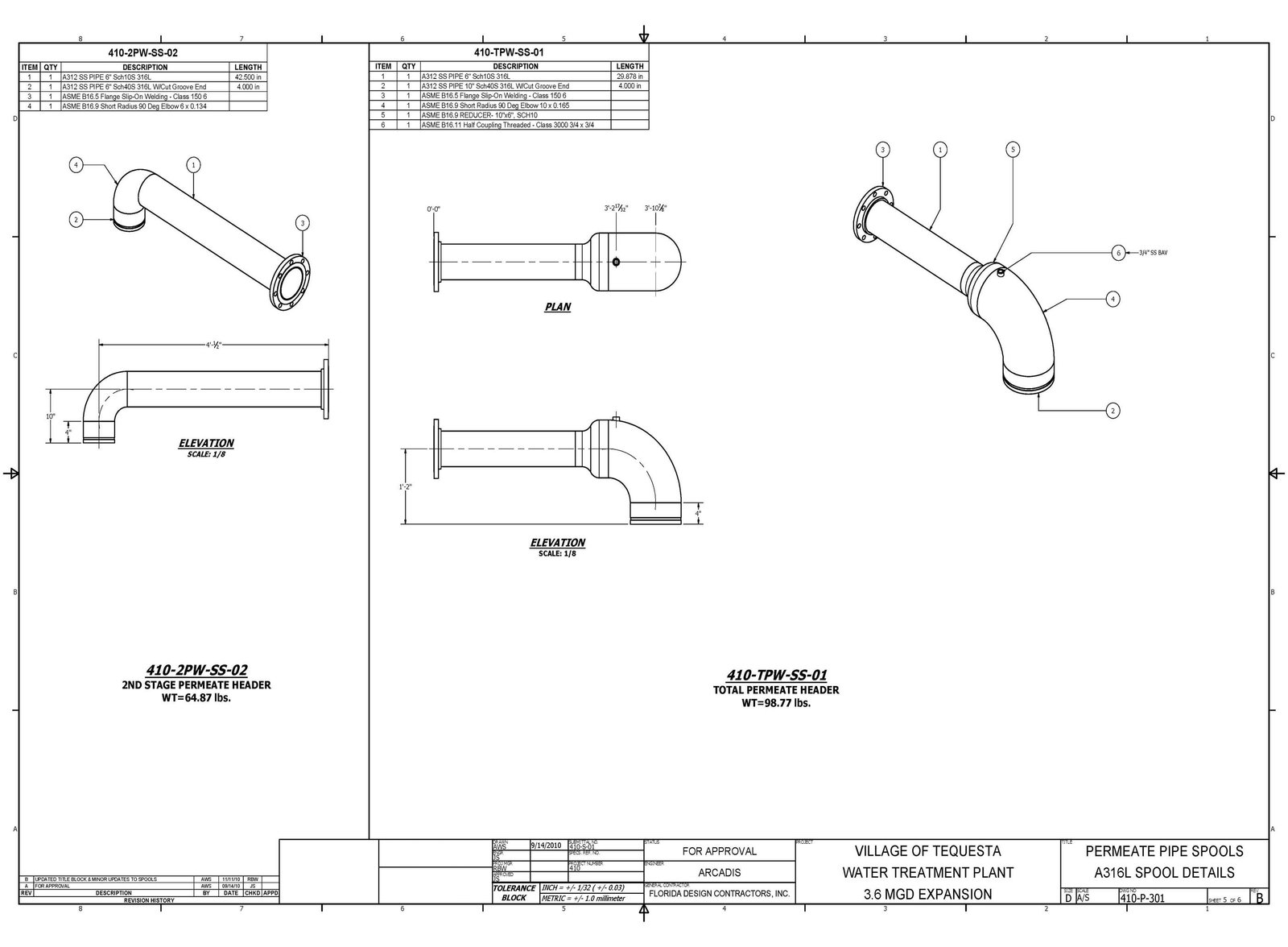

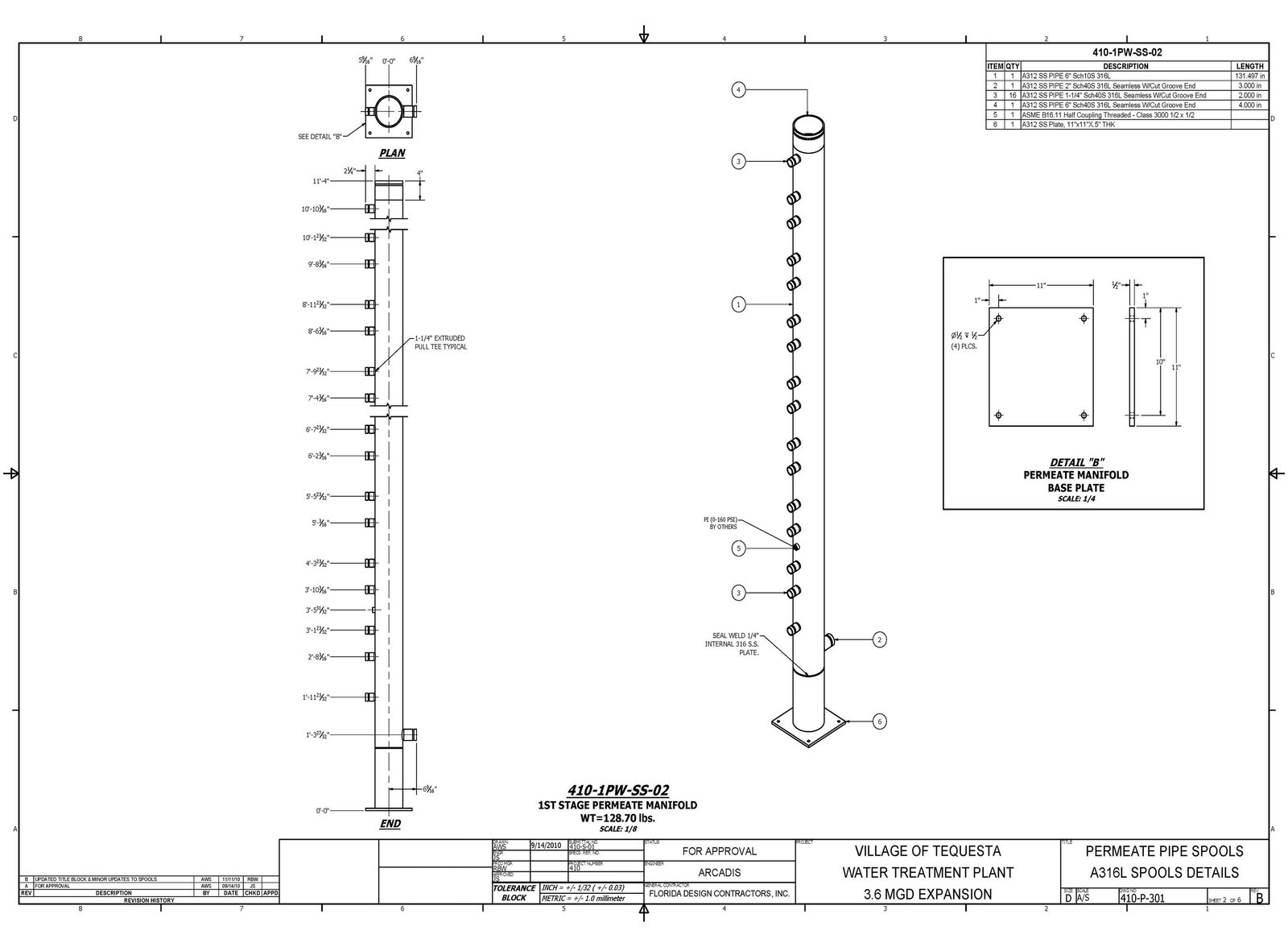

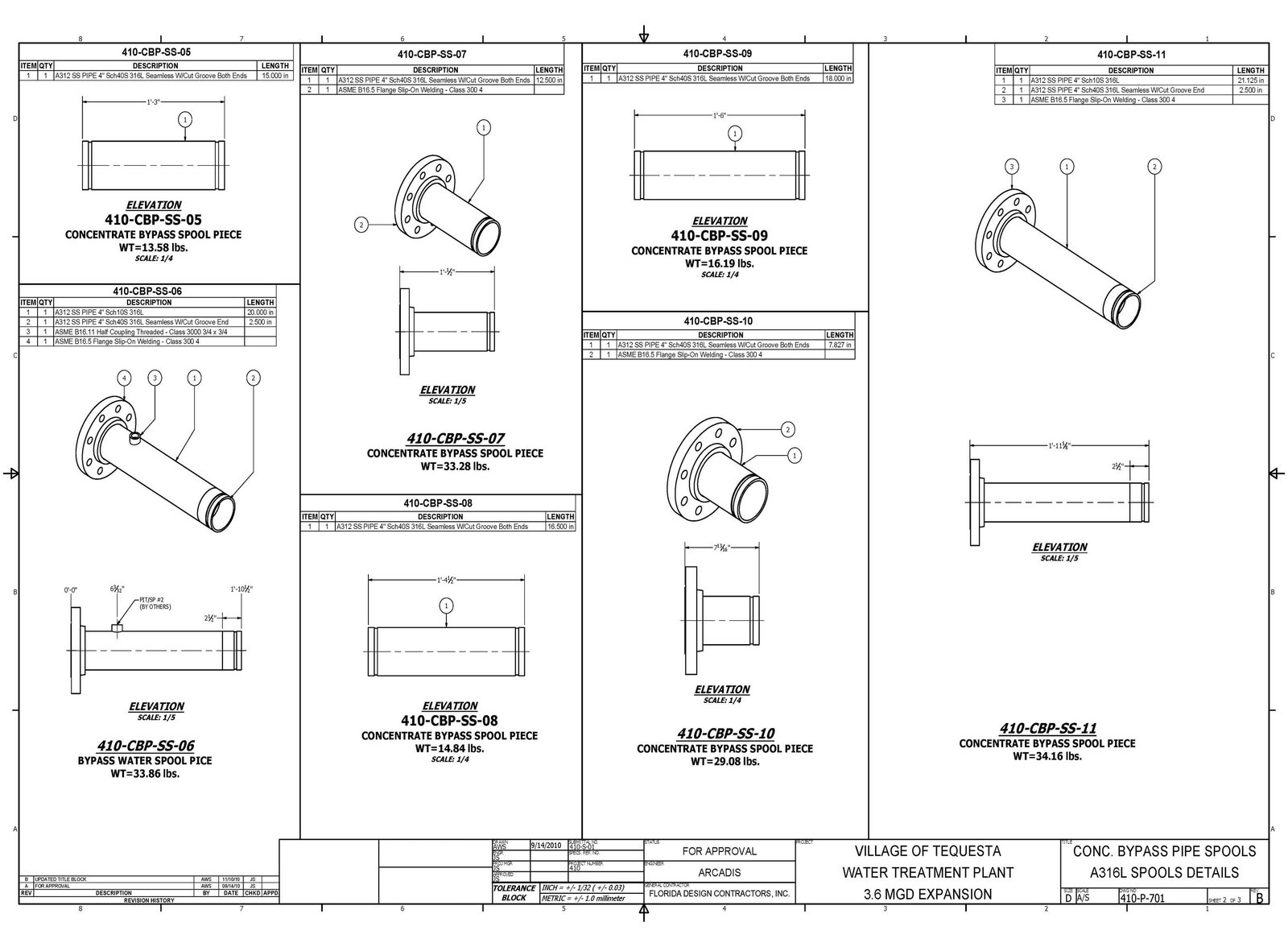

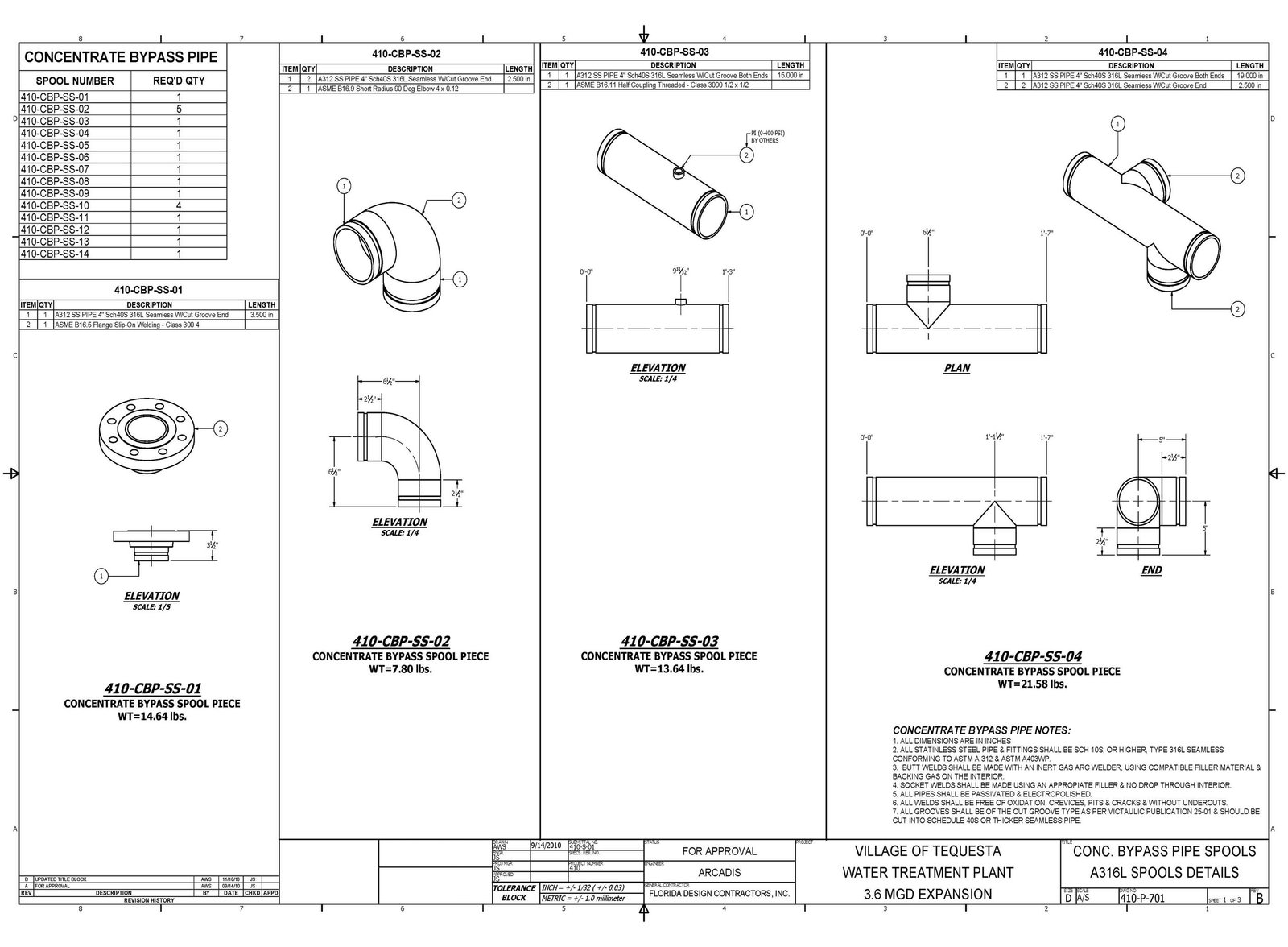

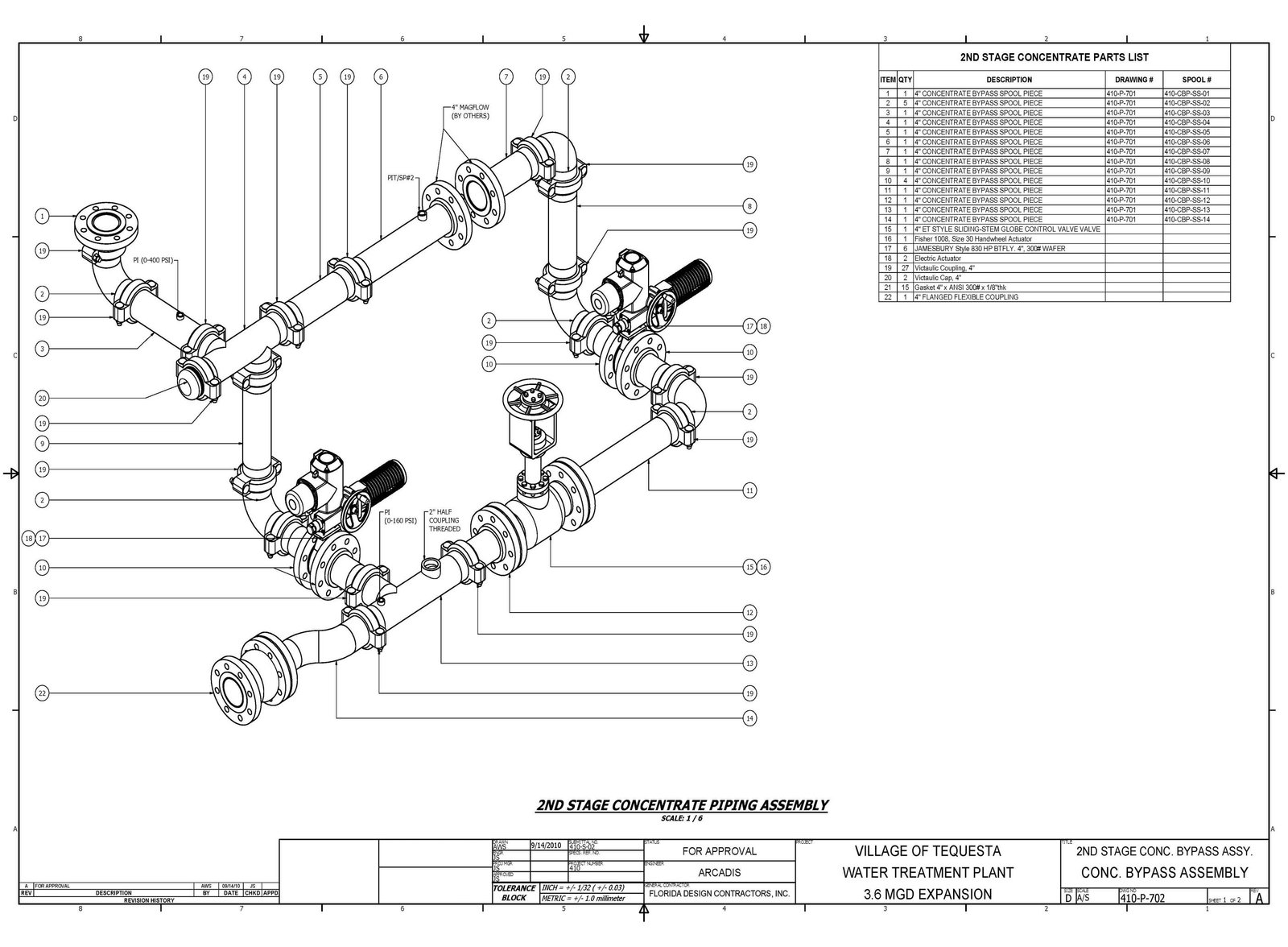

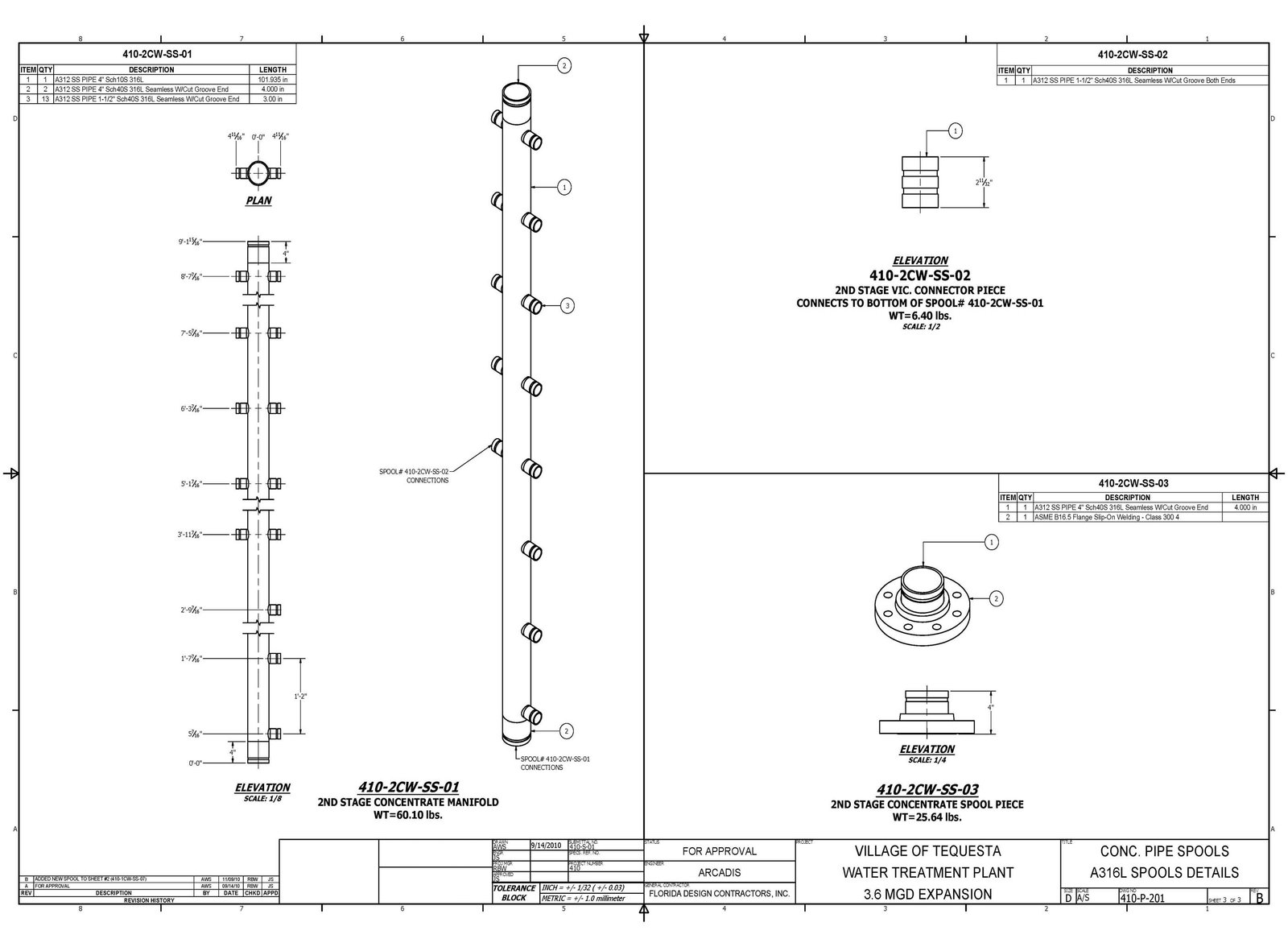

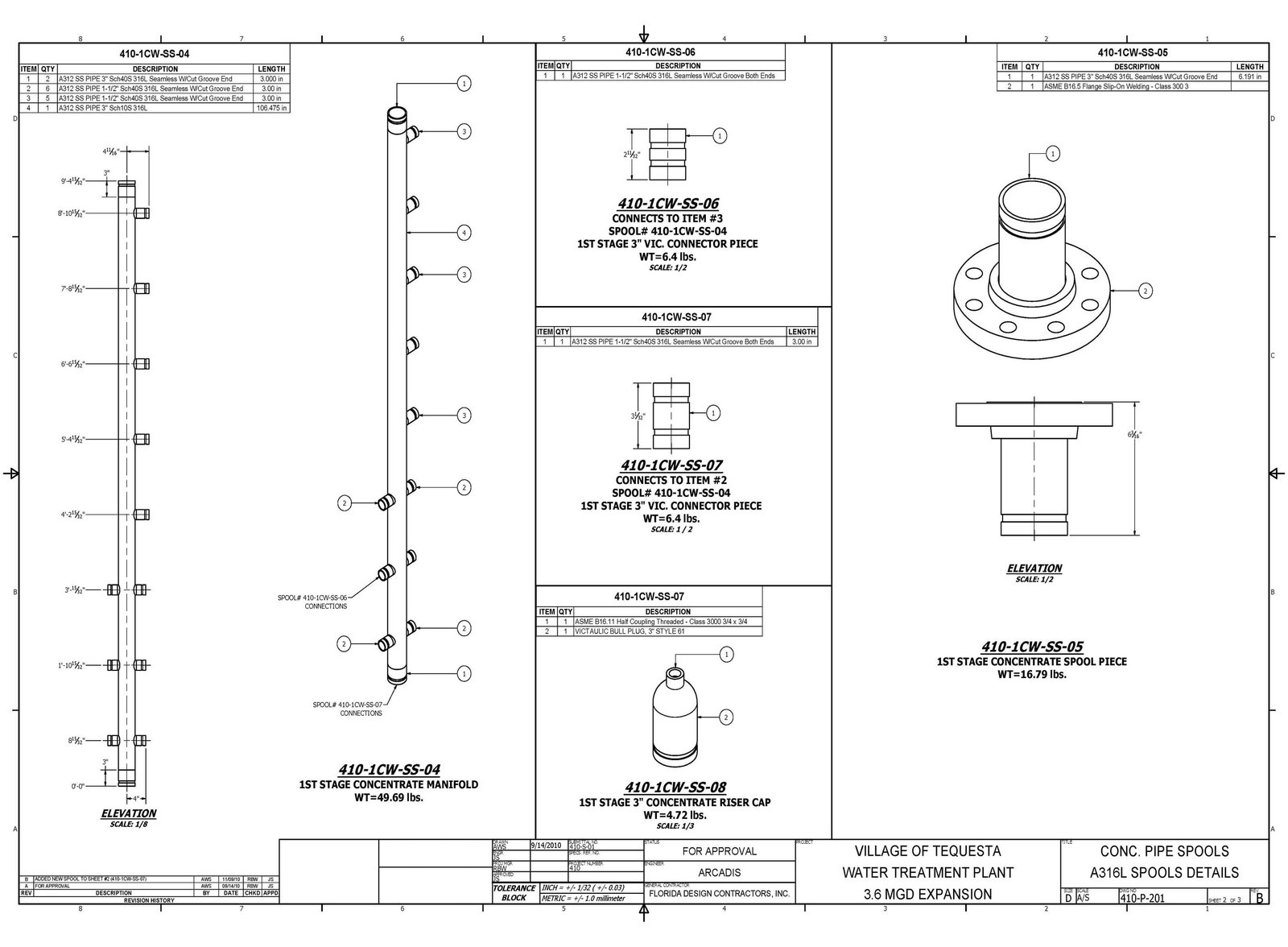

The pipe spool drawings define individual piping assemblies for the Tequesta Municipal water treatment facility. Developed in Autodesk Inventor, these 19 sheets provide the dimensional, material, and weld specification data required for shop fabrication and field installation of the process piping systems.
